Machine use
Control box
RPB
47
5. Unfolding/folding of the boom arms
For models fitted with a solenoid valve
block
The machine is fitted with a CH10 control box that
groups the hydraulic functions.
Refer to control box operator's manual.
For models fitted with a 3-function electro-
hydraulic selector

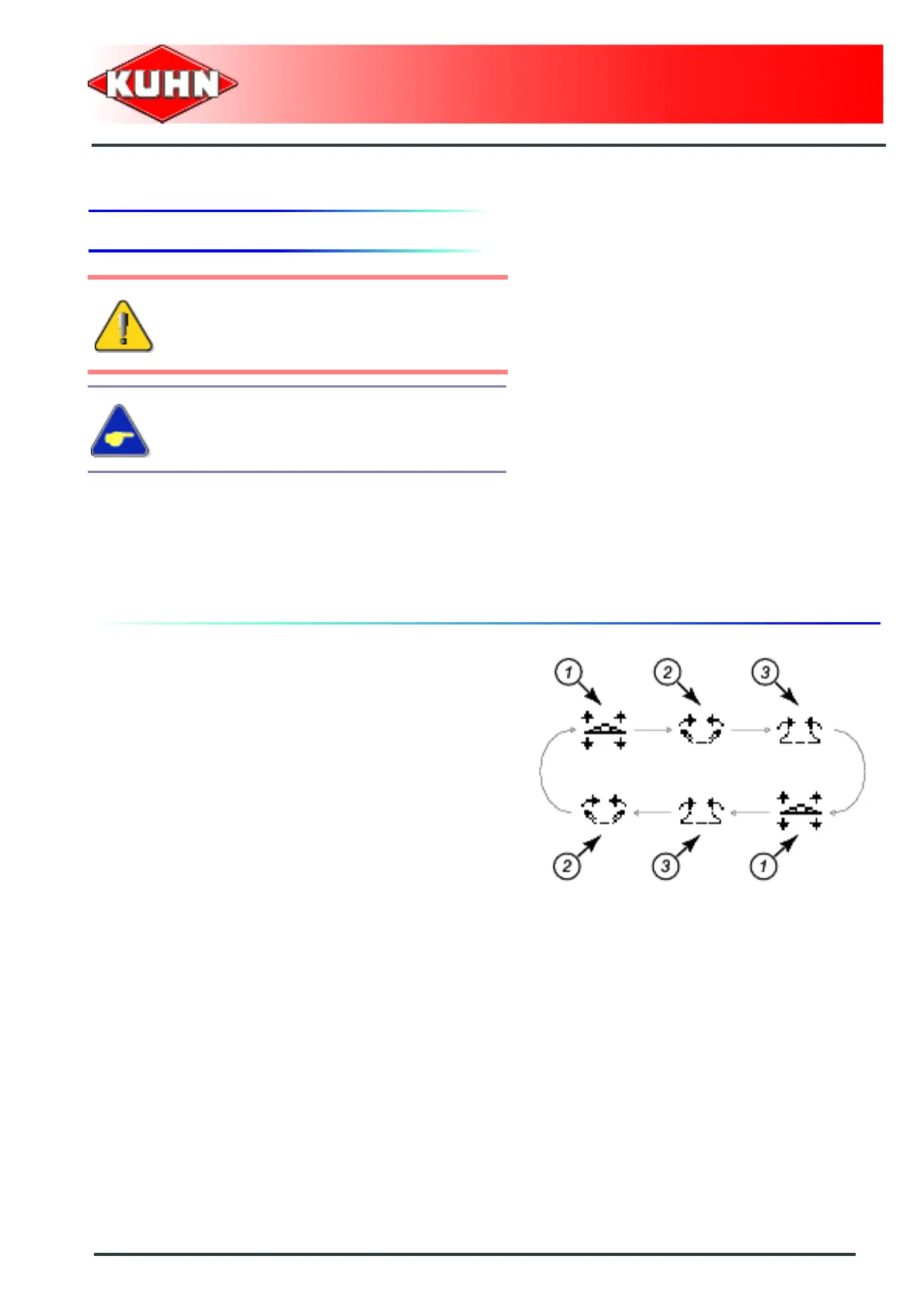

The boom activators provide following hydraulic
functions:
- Slope corrector (1).
- Unfolding/folding of the central arms (2).
- Unfolding / folding of the outer arms (3).
At startup, the slope corrector mode is automatically
activated.
Check that nobody is within the machine
pivoting area. If there is someone, make sure
the person moves away.
If a speed exceeding 4 km/h is detected, the
control box switches into the slope corrector
mode.
