Control box
48
RPB
Machine use

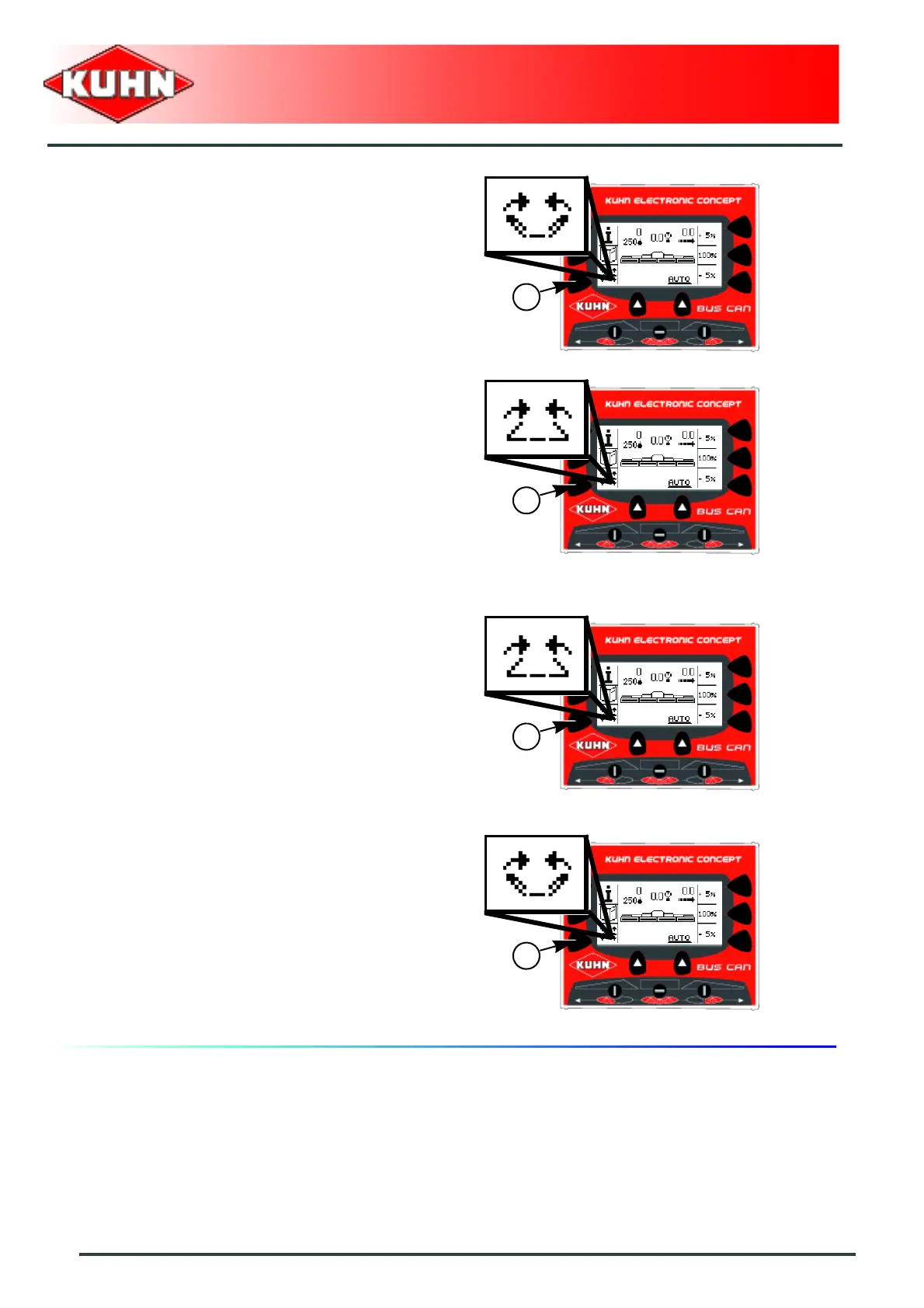

Unfold the booms:
Unfold the central arms:
- Press on the button (1).
- Shift the tractor hydraulic valve.
Unfold the outer arms:
- Press on the button (1).
- Shift the tractor hydraulic valve.
- Press on the button (1).
The boom is unfolded.
Fold the booms:
Fold the outer arms:
- Press on the button (1).
- Shift the tractor hydraulic valve.
Fold the central arms:
- Press on the button (1).
- Shift the tractor hydraulic valve.
- Press on the button (1).
The boom is folded.
