Putting into service
$Putting into service
1. Coupling and uncoupling

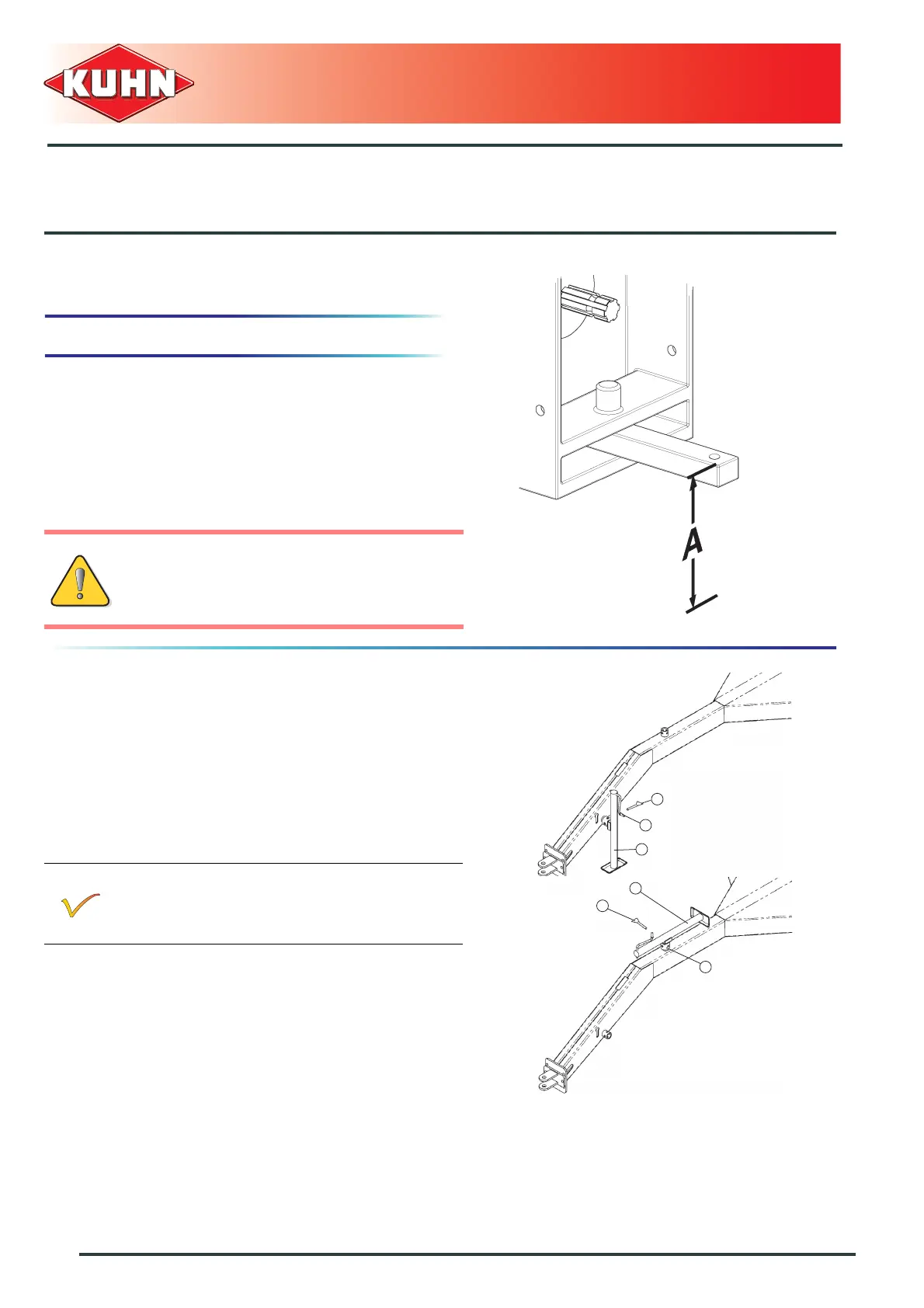

 Drawbar height adjustment
Dimension A
Top of drawbar to ground - 13" (33.0cm) to 18" (45.7cm).
 Coupling the machine
- Couple machine to tractor and secure hitch pin
- Hitch pin should be 1" (25.4cm) diameter.
- Raise jack (1) using crank handle (2).
- Remove pin (3) and jack.
- Attach jack (1) onto holder (2).
- Secure jack (1) with pin (3).
Make sure the hitch pin is installed and
secured to prevent unexpected detaching.
There are three holes in the clevis for
adjustment. When coupled to the tractor, the
horizontal part of the tongue should be level with
the ground.
1
2
3
1
2
3
