WATER CONNECTION FOR YOUR ICE MAKER
Important: Be sure to use the new hose-sets supplied with the appliance to
connect to water mains and that old hose-sets should not be reused.
1、Connect the water supplying hose to the unit
Step 1:First remove the tape on the water inlet port f or water supply (indicated in the following
illustration “B”) located at unit back, then use your other hand’s finger to press the out circle Step 2:
Insert the one end of the white water hose into the water inlet port, and push inward completely, and
install back the clipper, then water hose connection is completed.
2、
Connecting the water drain pipe
Pull out the water drainage cap with black color (indicated
○
A in above illus tration), then
connect
the white drainage pipe included in accessory, again connect the other end of t his drainage to the main
water drainage pipeline.
3. Connect the water hose to the water faucet of the water main supply system
First, install the supplied water quick-connector to the water faucet by screw thread; Second,
remove the clipper from the water quick-con
nector, insert the another end of the wat er hose into
this quick-con nector port completely, then install back the clipper, also this step is completed.
Note: The water faucet should be supplied by the customer himself.
Important: The water pressure of main water supply system must be 0.04-0.6 MPa at leas t.

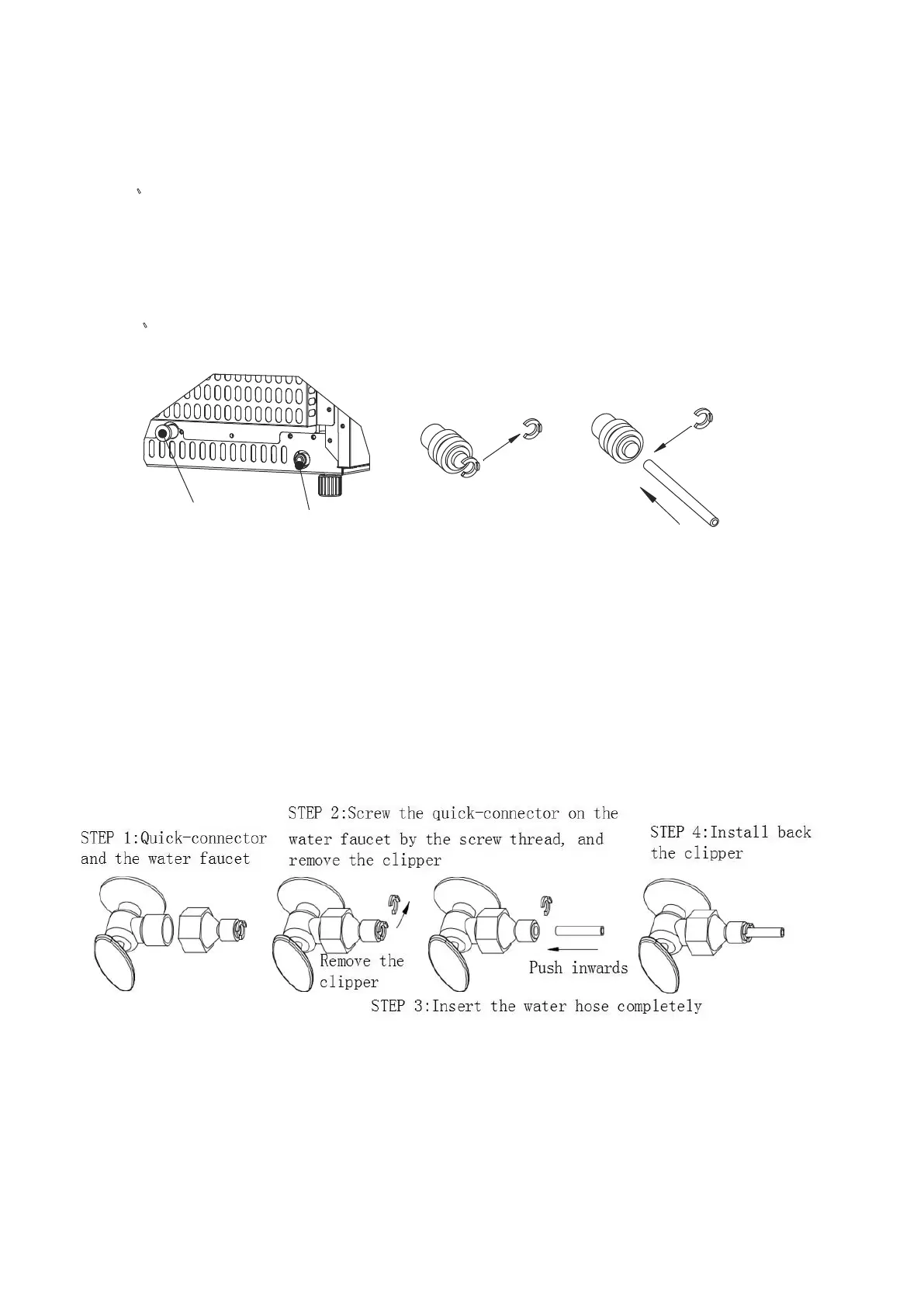

Remove the clip first
Then install the
clip back
White water
tube(accessory)
Insert water tube
inward completely
about 15mm deepth
Water inlet port on the
unit back
STEP 1: Remove the tape
STEP 2:Insert the water tube
A
B
To Next Page
