KUPPET LMHK36 - Operation Panel

6
TIMER
CLEAN
ON/OF
F
+
-
Quickly press this button once, to enter the Timer
C. Water tank：
D. Water supplying pipe：
E. Cover bo ard on the right side of the evaporator：
F. Water level switch installing plate：
G. Water drain pipe of the water tank：when ice-making , this pipe should be clamped in the slot of
the water tank wall; And when draining, this pipe should be pulled out.
H. Water pump：
I. Water level detecting switch

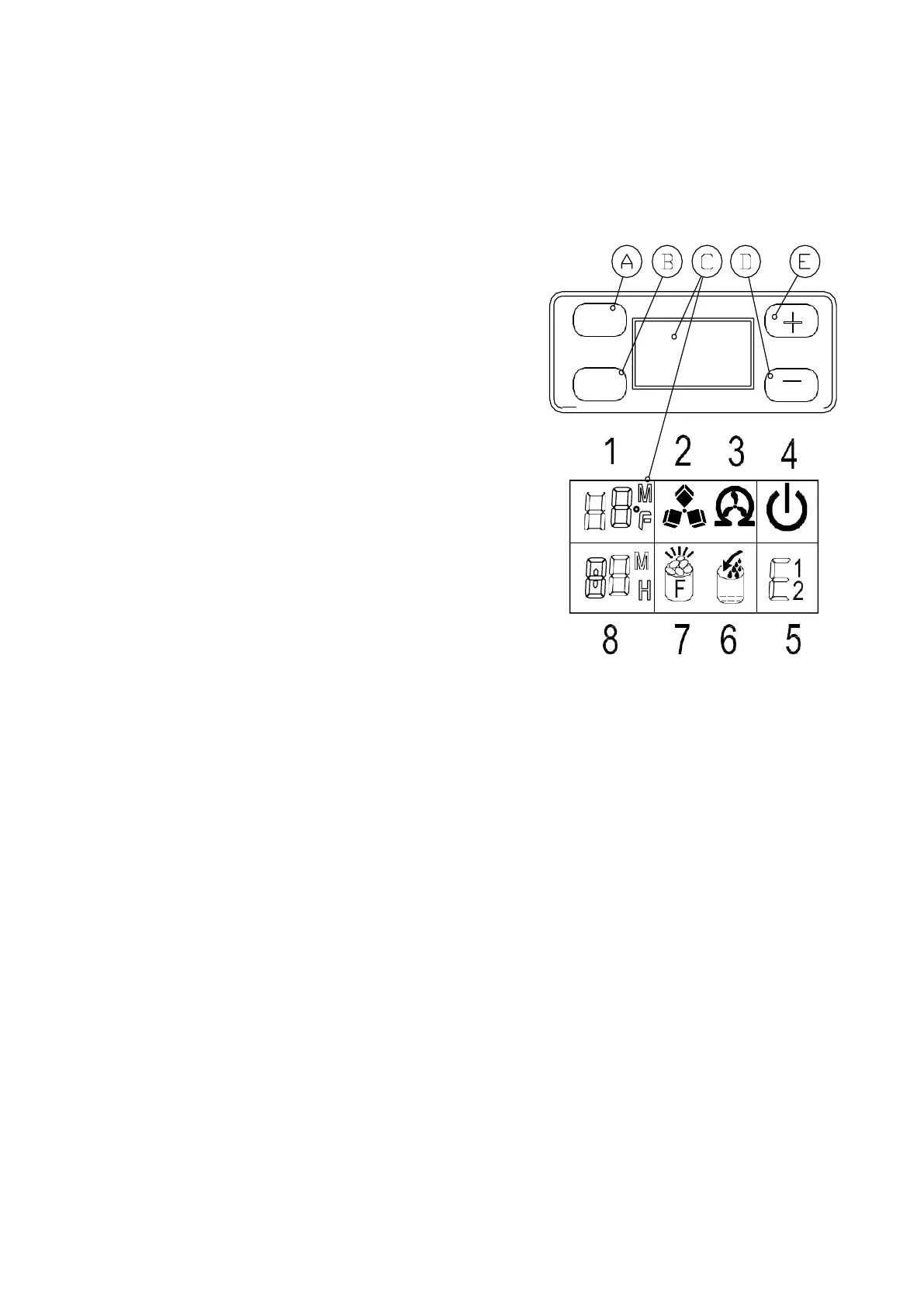

3) Operation panel
A．“TIMER C LEAN”button：
setting program; And press this button for more
than 5 seconds, to enter the Cleaning progr
am.
B．“ON/OFF”button：
When the unit is off, press this button to turn on
the unit; And during the Self-cleaning program,
or normal ice-making state, press this button to
turn off the unit at once; And al so if the unit is
set with the Timer, press this button to cancel
the Timer setting. When the unit is making
the ice cube, press this button for more
than 5 seconds, the unit will switch to ice
harvest process by force.
C．
L
CD display window
1. Environmental temperature display and ice-making
time countdown display.Display ice-making time
countdown with M as the unit display,and display
environmental temperature with F as the unitdisplay.
2. Making ice and deice symbol display,the machine is making ice when the symbol rotate,and
the machine is deice when the symbol flash. .
3. Automatic self-cleaning symbol display
4．On/off symbol display
5. Error code display，E1 m eans the environmental temperature sensor is damaged.，E2
means ice making anomaly or the refrigerant leaked
6. Water flow in and water shortage display, the arrow flashing indicates that the machine is in
the water, the whole symbol is bright to indicate that the machine is short of water.
7. Ice full al arm,the machine will making ice again when you take out the ice.
8. Setting display.Display timing switch machine with the H as unit display;Display ice making
time setting with M as unit display.
D&E．“+”、“-”button：
Use to adjust the ice-making process duration period length, the default setting is zero, 1
minute adding or decreasin g per each pressing of “+” or “-” button.
Also to adjust the delay time of the timer, the default setting is zero, 1 hour adding or
decreasing per each pressing of “+” or “-” button.
