GENERAL INFORMATION

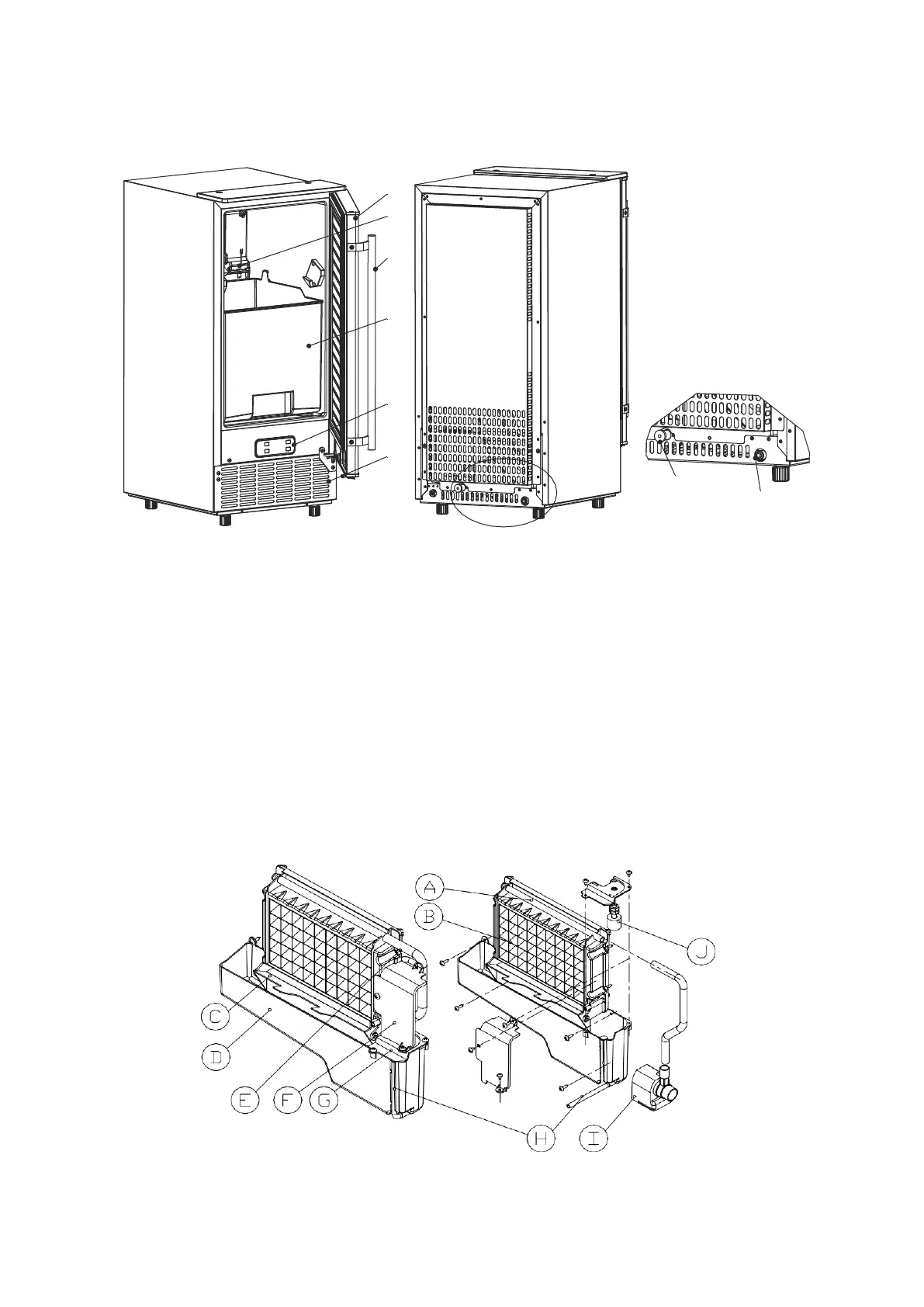

1) Main Unit Construction
1. Door
2. Ice-making & its water tank assembly: Inclu ding ice-making evaporator, water tank, water pump
and some detecting parts
3. Handle
4. Ice tank
5. Operation panel
6. Air outlet: Must keep the air circ ulate smoothly, hot air will blow out when unit running.
7. Water draining port：Normal plugg ed with the cap. When need to drain the water, unplug the cap.
And connect the white drain pipe.
8. Water inlet port for water supply: Use to connect the water supply pipe.
Accessory: 2 meters long and white color water drain pipe
water quick connector of the water faucet
¢6.35mm diameter and white color water supply pipe(3 meters long）.
2) Ice-making and its water tank parts
Water dividing pipe： with nine little holes, water will flow out from these little holes. And if no wate r flows
out, can be disassembled and cleaned.
A. Evaporator (ice-making module)
B. Ice full detecting board: Use to detect the inner cabinet is full of ice or not, and to check the the
ice-harvest process is over or not.
⑧
①
②
④
⑤
⑥
③
⑦
