16
© Küschall AG, Schweiz | 2012-07
Service manual
Footrests
Footrests
The footrest must be selected in accordance with the seat width. A stan-
dard footrest and an angle-adjustable footrest are available. Furthermore,
there is a choice between a high-mounted footrest and a fold-up footrest.
Lower leg length (UL)
To change the lower leg length, the footrest can be xed at a higher or
lower position.
Table, Chap. Frame. The shortest lower leg lengths can be
achieved using the high-mounted footrest.
‹Fitting and adjusting high-
mounted footrest›

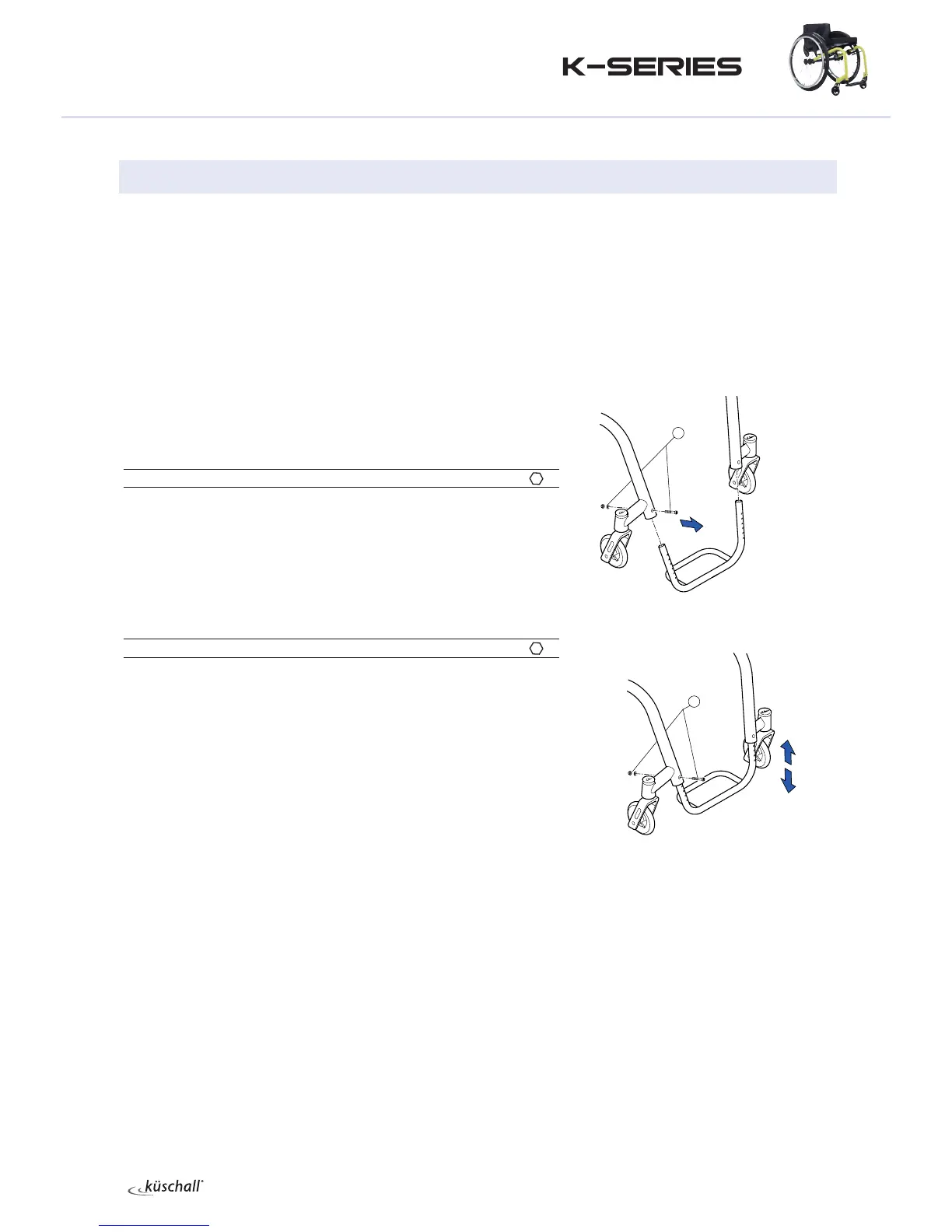

Replacing footrests
Diculty:
Tools:
à 4 8
Remove the screw connections on both sides.
Remove the footrest and replace it with a new one.
Tighten the screw connections on both sides.
Carry out the same setting on both sides.
Adjusting the footrest height
Diculty:
Tools:
à 4 8
The height of the footrest can be adjusted in 10 mm steps.
Remove the screw connections on both sides.
Slide the footplate to the desired height.
Tighten the screw connections on both sides.
Carry out the same setting on both sides.
i
If the desired lower leg length cannot be achieved, a high-mounted
footrest must be used ‹Fitting and adjusting a high-mounted
footrest›
1
à 4 Nm
1
à 4 Nm
