Kuschall K-SERIES Service Manual

19
© Küschall AG, Schweiz | 2012-07
Service manual

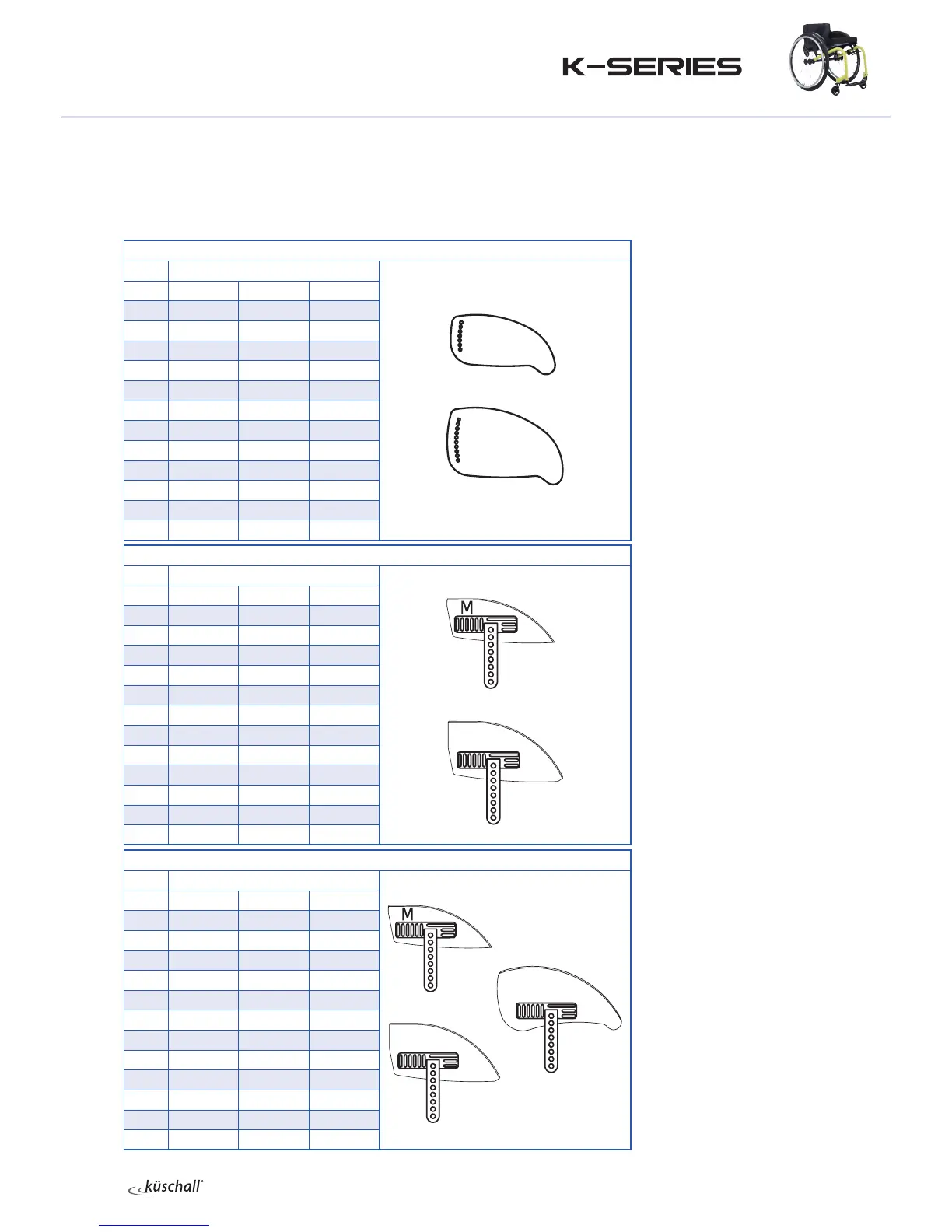

Side parts
Clothes-guard/mudguard
The clothes-guard tted as standard can be replaced by a mudguard. Clothes-guard and
mudguard are available in plastic or in carbon. For the carbon mudguard there is an addi-
tional size (XL) for the two smallest rear seat hights (SHh).
Mudguard size plastic
Wheel size
SHh 24‘‘ 25‘‘ 26‘‘
380 L — —
390 L L —
400 L L L
410 M L L
420 M L L
430 M L L
440 M M L
450 M M L
460 M M M
470 M M M
480 M M M
490 M M M
L
Clothes-guard size
Wheel size
SHh 24‘‘ 25‘‘ 26‘‘
380 L — —
390 L L —
400 L L L
410 L L L
420 L L L
430 L L L
440 M L L
450 M L L
460 M L L
470 M M L
480 M M L
490 M M L
L
M
Mudguard size carbon
Wheel size
SHh 24‘‘ 25‘‘ 26‘‘
380 L / XL — —
390 L / XL L / XL —
400 L L / XL L / XL
410 L L L / XL
420 L L L
430 L L L
440 M L L
450 M L L
460 M L L
470 M M L
480 M M L
490 M M L
L
XL
