20
© Küschall AG, Schweiz | 2012-07

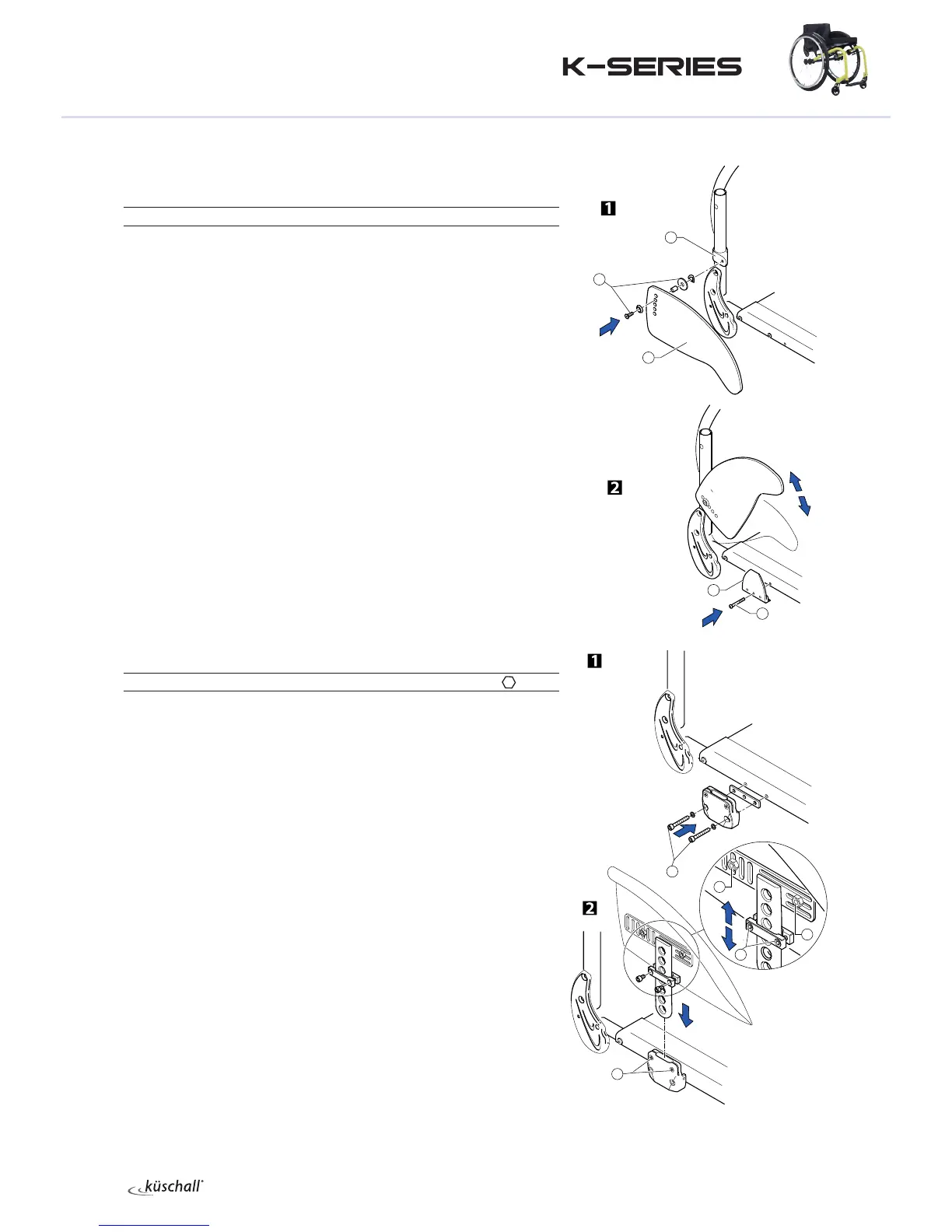

Service manual
Side parts
Replacing the clothes-guard
The mounting element on the backrest must already be tted.
Diculty:
Tools:
à 3, 4
If present, remove the clothes-guard to be replaced by loosening the
screw connection .
Check the correct position of the clothes-guard with tted rear
wheel. Here, nd the suitable height on the clothes-guard for xing
the screw connection to the backrest mount .
If necessary, the holder on the seat module can be replaced. Here,
remove the screw
.
i
The clothes-guard is correctly positioned if it can be inserted between
the seat module and the holder and the upper edge runs above the
rear wheel.
Fitting the mudguard
Diculty:
Tools:
à 3, 4 10 Ò 2
Remove the clothes-guard and the mounting elements on the backrest and
the seat.
Fit the holder to the seat module using the screw connections and
then ret the rear wheel.
Slightly loosen the screws on the adjustment plate and slide it along
the mudguard carrier until the mudguard is at the right height.
The position of the mudguard can also be adjusted: Here, loosen the
screw connections and , position the mudguard as required and
tighten the screw connections and again.
Tighten the screws again.
Carry out the same setting on both sides.
By tightening or loosening the screws you can adjust how easily the
armrest can be pulled out or pushed in.
i
If the wheelchair is equipped with a suspension, the distance
between the mudguard and the wheel must be at least 40 mm.
i
The existing axle may not be suciently long for the new
conguration with mudguard. In this case, a longer axle must be
tted.
‹Changing the wheel chamber / tting and adjusting an axle›
j
The distance between the mudguard and the wheel must be
either < 8 mm or > 25 mm to prevent ngers from becoming caught
between the wheel and the mudguard.
1
3
4
2
5
à 4 Nm
à 7 Nm
2
3
4
1
5
à 7 Nm
à 4 Nm
à 7 Nm
à 7 Nm
