22
© Küschall AG, Schweiz | 2012-07
Service manual
Rear wheels
Rear wheels

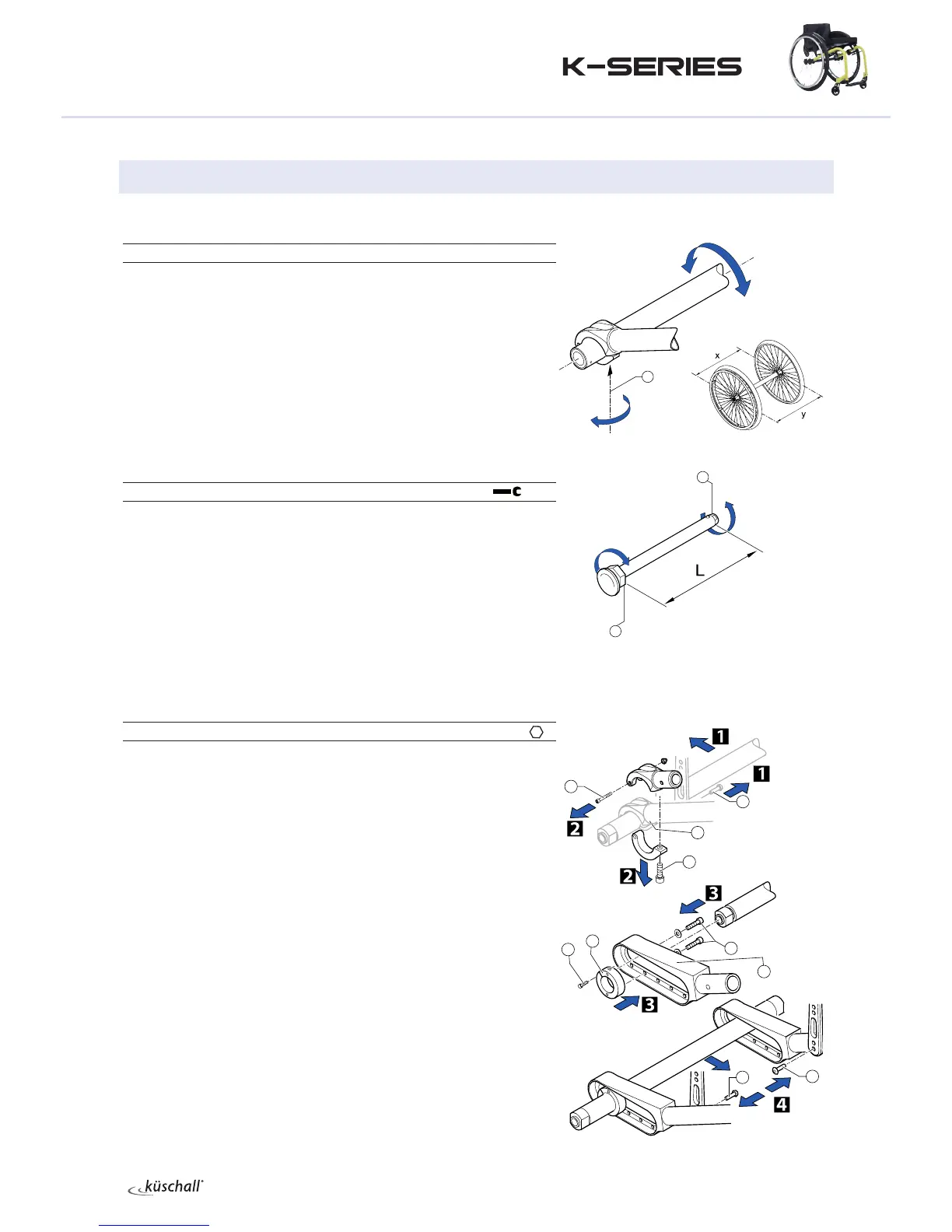

Ensuring the rear wheels are parallel
Diculty:

Tools:
à 5
Loosen the screws on both clamp sets. Rotate the axle tube to set
the correct position.
Tighten the screw on both sides.
i
This setting must be carried out on a horizontal surface. The track of
the rear wheels is correct if the distance between the rear wheels is
the same at the front and the back (x=y) – measured at the height of
the centre of the axle.
Adjusting the removable axle
Diculty:

Tools:
11, 19
Remove the rear wheel.
Hold the end of the removable axle using the straddle spanner.
Adjust the length of the removable axle by turning the nut . The
length is correctly adjusted if the removable axle engages correctly
when xing the wheel and wheel has just minimal clearance.
i
The wheels must be exchanged (left to right side and vice versa)
after adjusting both removable axles. The adjustment must now be
checked or carried out again to ensure the wheels can be switched.
Fitting and adjusting a rear wheel extension
Diculty:

Tools:
à 3, 4, 5 8
Remove the screw on both sides and remove the axle holder with
the axle.
Remove the screws and the screw connections on both sides and
remove the axle holder.
Fit the axle locking ring to the desired hole in the rear wheel
extension using the screws . Here, do not yet tighten the screws.
Slide the two rear wheel extensions onto the axle.
i
The corresponding locking ring must be used if a Vario-Ax is being
tted.
Fit the rear wheel extension to both sides of the wheelchair using the
screw .
Ensuring the rear wheels are parallel, ‹Ensuring the rear wheels are
parallel›
.
Tighten the screw on the axle locking ring on both sides to x the
axle.
Tighten the screws on both sides.
1
à 13 Nm
1
2
2
1
5
8
6
7
3
4
1
1
à 13 Nm
à 7 Nm
à 7 Nm
