18
© Küschall AG, Schweiz | 2012-07
Service manual
Side parts
Side parts
Armrest
The clothes-guard tted as standard can be augmented with an armrest.

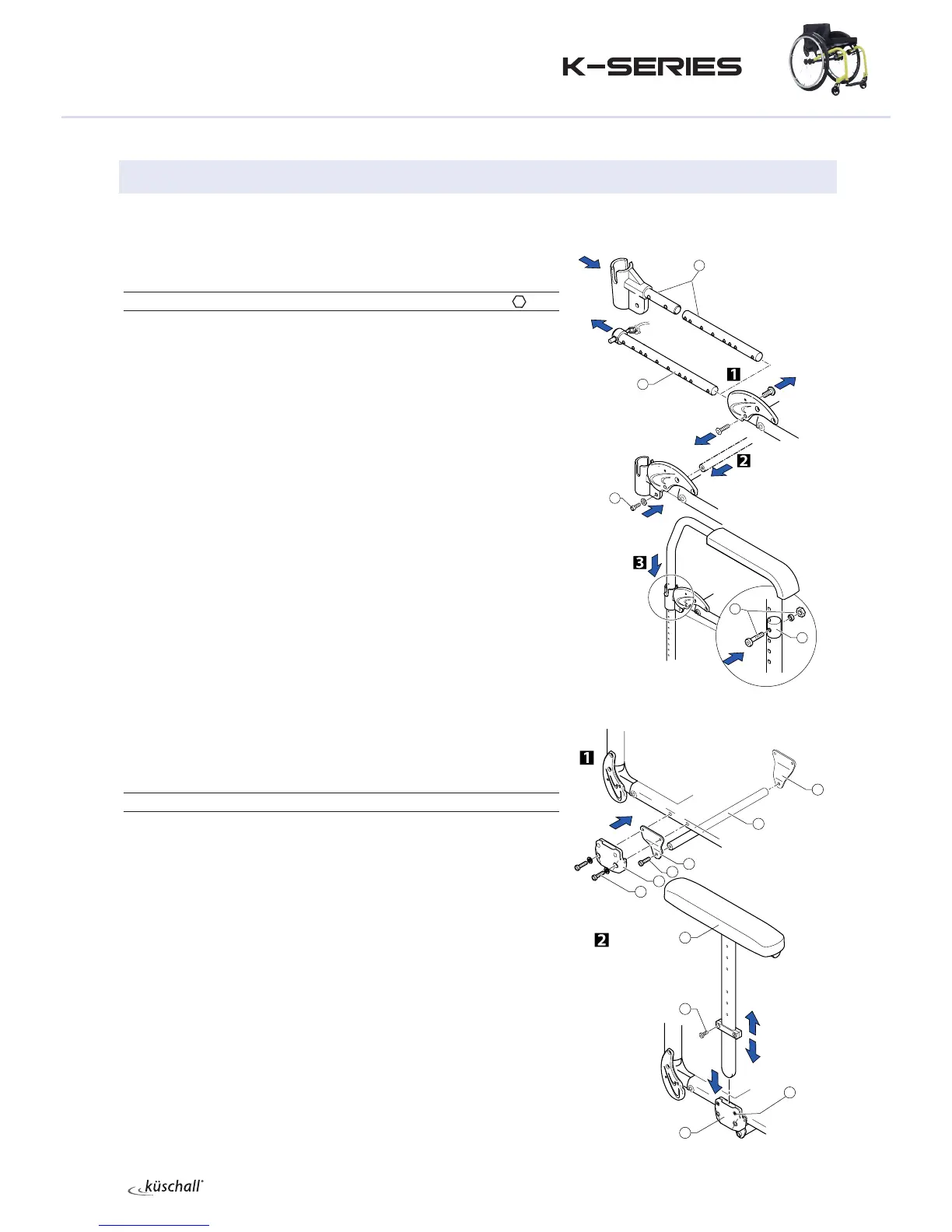

Fitting and adjusting an armrest
Diculty:
Tools:
à 3, 4, 5 8, 10
Fold the backrest forwards.
Remove the backrest spigots and replace them with the armrest
holders on both sides .
Fit the connecting tube on both sides using the screws .
To adjust the height as required, position the sleeve in the tube so
that the screw connection
can be xed to the appropriate hole in the
tube. Place the armrest in the holder.
Set the desired armrest height on both sides.
Fitting and adjusting a height-adjustable armrest
Diculty:
Tools:
à 4, 5 Ò 2
Fit the holder and the bracket to the seat module on both sides.
Tighten the screws only lightly.
Fit the bar between the two brackets using the screws . Tighten
the screws .
To adjust the armrest height, insert the armrest into the holder .
Loosen the screws for the height adjustment and slide it into the
desired position.
Then retighten the screws for the height adjustment.
By tightening or loosening the screws , you can adjust how easily the
armrest can be pulled out or pushed in.
3
1
2
4
5
à 7 Nm
à 7 Nm
6
1
1
2
3
4
7
5
2
8
à 7 Nm
à 7 Nm
à 4 Nm
