Mount the VSAT-Hub
TracPhone V30 Installation Guide
Mount the VSAT-Hub
Follow these steps to install the VSAT-Hub inside the
vessel.
1. Tape the mounting template in the location selected
for the VSAT-Hub. Punch holes at each of the two
keyhole locations and at the mounting tab location.

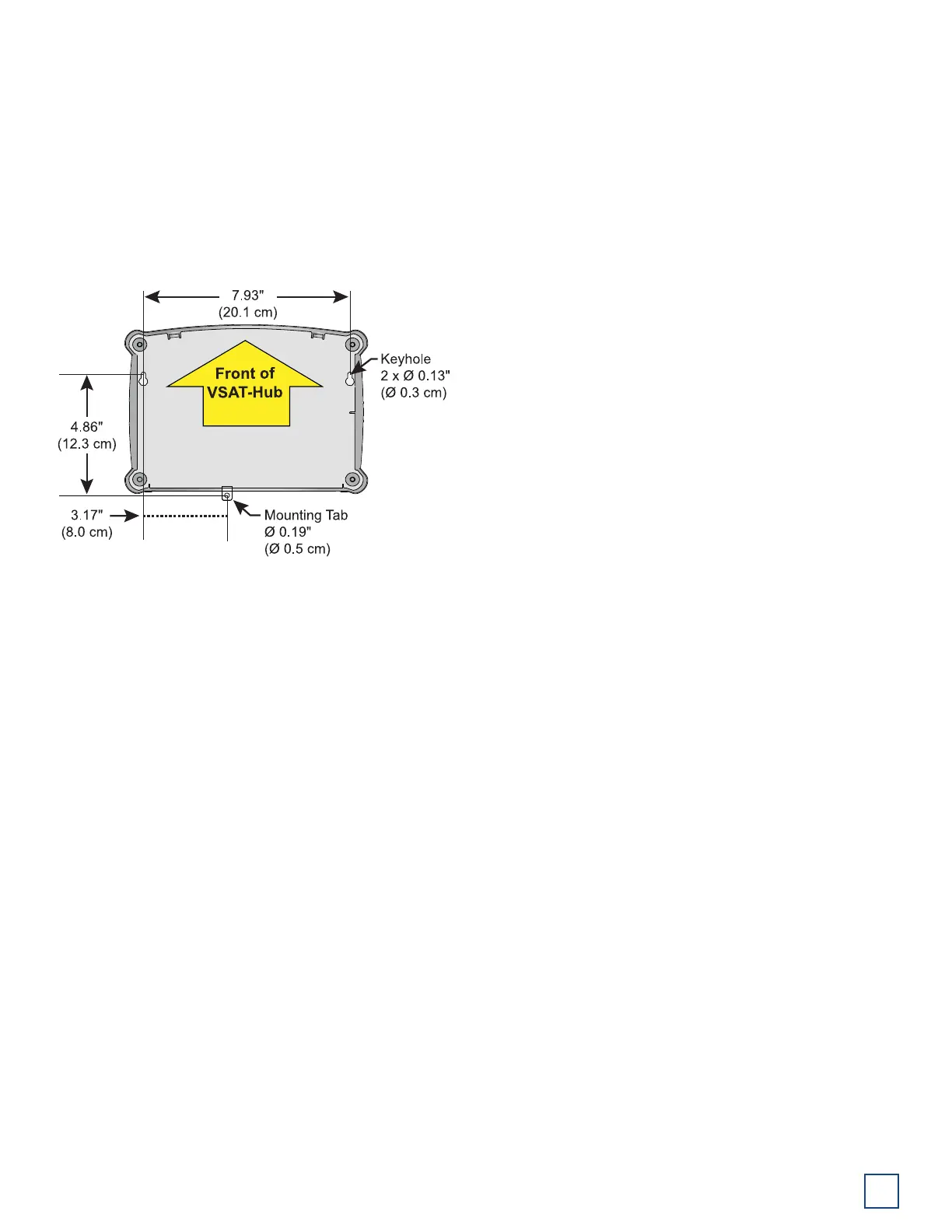

Figure 17: VSAT-Hub Mounting Template
2. Remove the template.
3. Drill a 1/8" (3 mm) hole at the three hole locations you
marked in step 1.
4. Install a #8 Phillips thread-forming screw partway into
one of the keyhole holes leaving a small gap for
hooking the VSAT-Hub onto it. Use the thickness
(2.5 mm) of the M10 washer (supplied in kit) as a gauge
for the size gap to leave.
5. Repeat step 4 for the other keyhole.
6. Peel off the backing on the adhesive-backed washer
(supplied in kit) and place it over the mounting tab
hole.
7. Align the wide part of the VSAT-Hub’s keyholes, as
shown in Figure 17, over the screws, then slide
downwards to secure the screws into the narrow part
of the keyholes.
8. Press the rear mounting tab of the VSAT-Hub onto the
adhesive washer and install the third #8 Phillips
thread-forming screw in the mounting tab hole.
