Wire the VSAT-Hub
14
TracPhone V30 Installation Guide
Wire the VSAT-Hub
Follow these steps to wire the VSAT-Hub (see page 36 for
a complete wiring diagram).
1. Clean and dry the VSAT-Hub’s “Antenna” connector.
2. Fill half of the inner body of the antenna cable’s male
connector with the supplied silicone grease.
3. Connect and SLOWLY hand-tighten the cable to the
VSAT-Hub connector, allowing the grease to diffuse
and settle into the entire space within the connector.
Then tighten the connector with a 5/8" torque wrench
set to 23 in.-lbs.

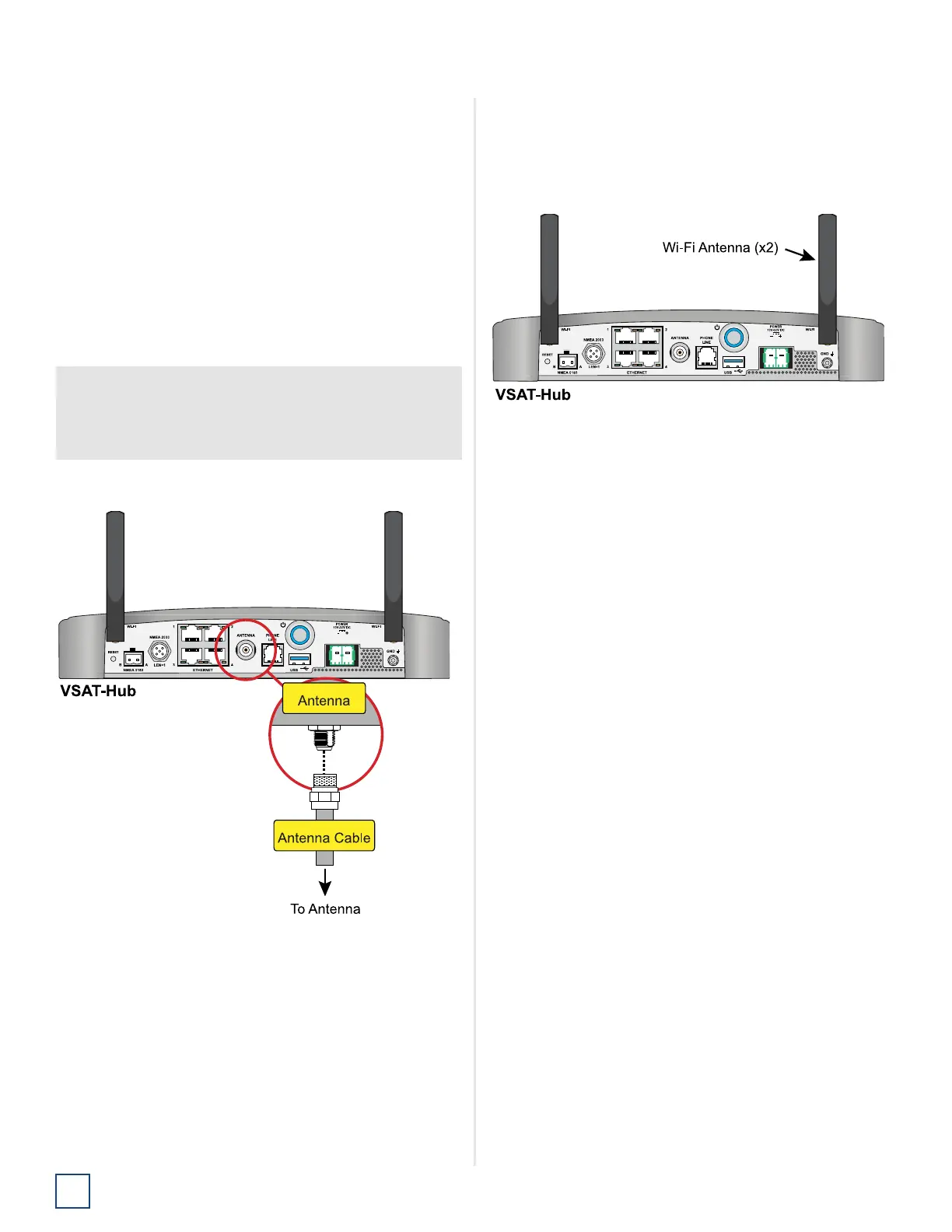

Figure 18: Antenna Wiring
Attach the Wi-Fi Antennas
Connect the two supplied Wi-Fi antennas to the rear panel
of the VSAT-Hub.
Figure 19: Wi-Fi Antenna Connection
IMPORTANT!
Do not connect anything other than the antenna cable
to the VSAT-Hub’s “Antenna” connector. The VSAT-Hub
supplies voltage that will damage other devices.
