12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-15

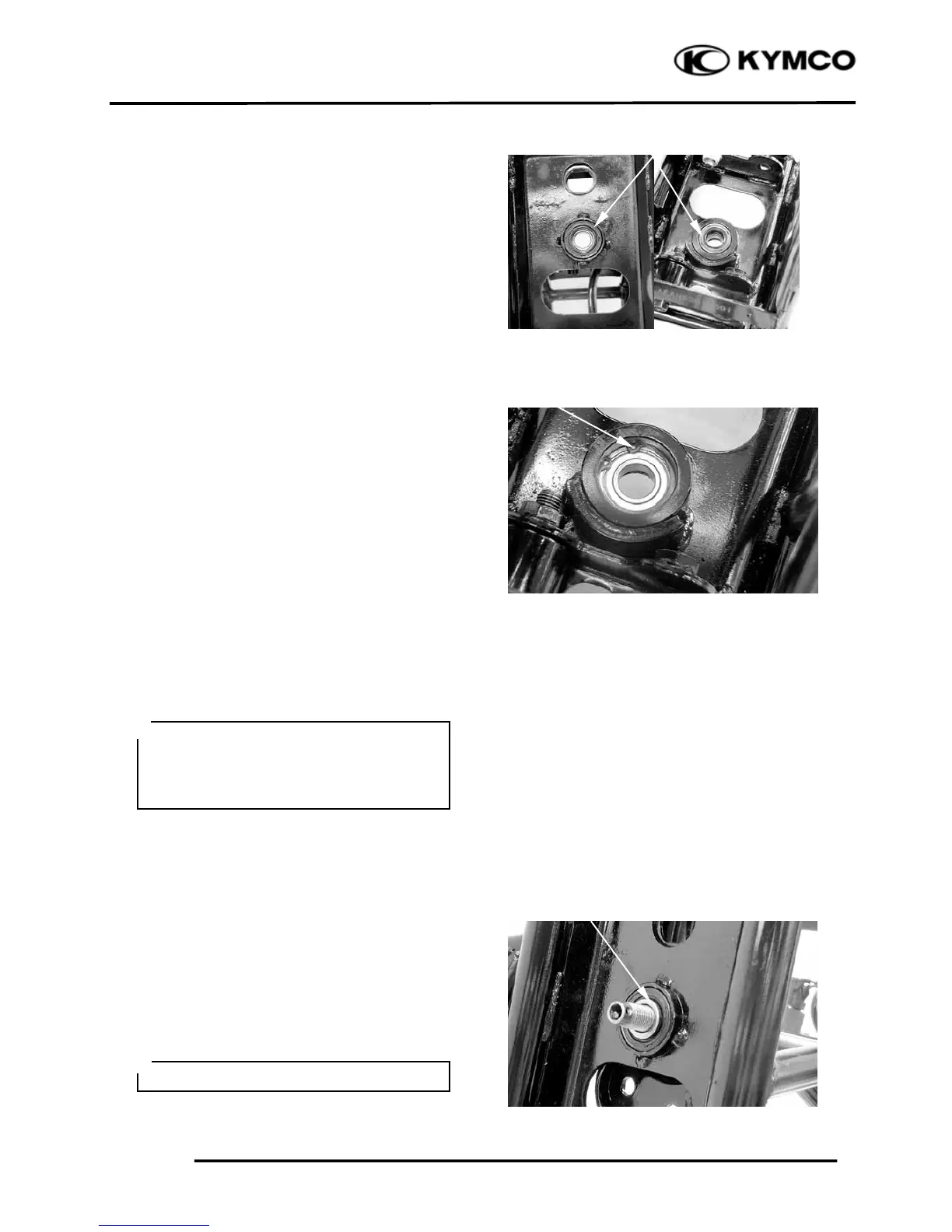

Remove the dust seal of each frame side.
Remove the snap ring.
Remove the bearing.
INSTALLATION
Apply grease to a new dust seal lip and
install the dust seal (under frame).
Pack bearing cavities with grease.
Drive in the bearing and install snap ring.
Apply grease to a new dust seal lip and
install the dust seal.
Special tool
Oil seal and bearing install A120E00014
Apply the grease onto the bearings and oil
seal lips of the frame.
Install steering column and collar, then
tighten the nut.
Torque: 70 N-m (7 kgf-m, 50 lbf-ft)
Install cotter pins and band ends of cotter
pin.
Dust Seals
Snap Ring
• Do not allow the bearings to tilt while
driving them in.
• Drive in the bearing squarely with the
sealed end facing out.
＊
Always use a new cotter pin.
＊
