2. FRAME COVERS/EXHAUST MUFFLER
2-5

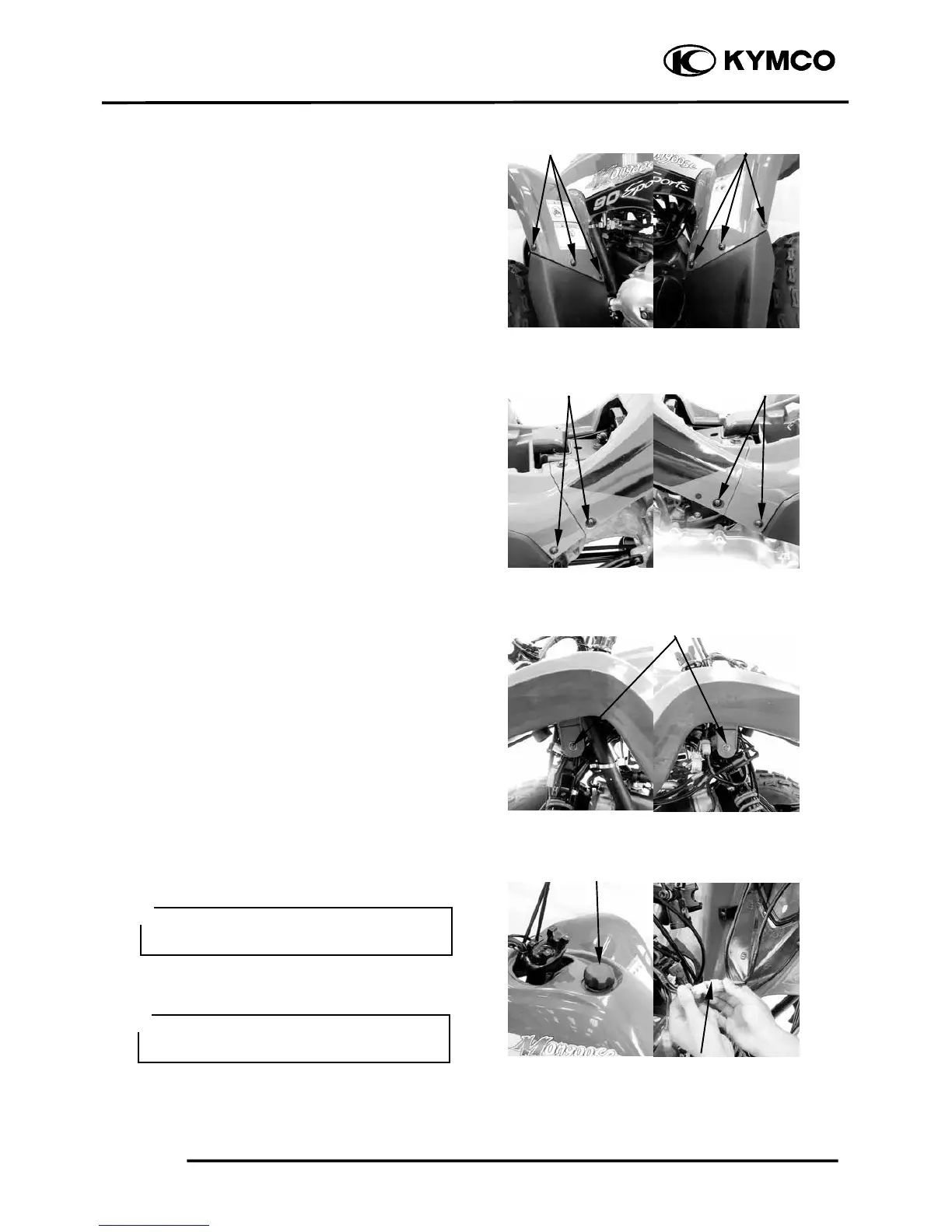

FRONT FENDER REMOVAL
Remove the seat. (See page 2-3)
Remove the handlebar. (See page 2-3)
Remove the six screws and nuts attaching
the front fender and right/left foot boards.
Remove the four screws and two nuts
attaching the front fender and rear fender at
the right/left side.
Remove the two bolts attaching front fender
at the right/left side.
Remover the fuel filler cap.
Remove the front fender and disconnect the
ignition switch coupler.
During removal, do not pull the joint
claws forcedly to avoid damage.
＊
After remove, be sure to tighten the fuel
filler cap.
＊
Screws
Screws
Screws
Screws
Bolts
Fuel Filler Cap
Ignition Switch Couple
To Next Page
