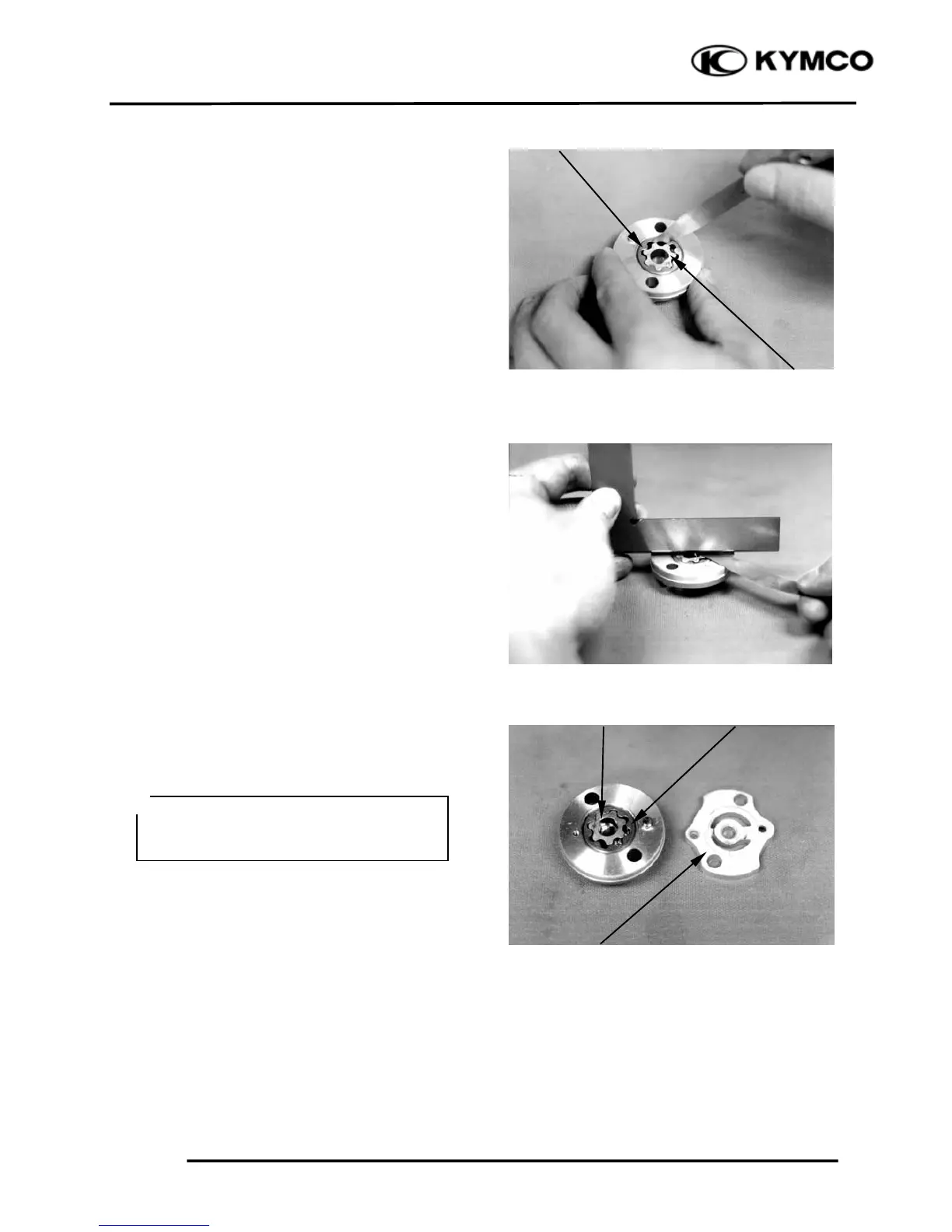

Measure the inner rotor-to-outer rotor
clearance.
Service Limit: 0.2 mm (0.008 in)
Measure the rotor end-to-pump body
clearance.
Service Limit: 0.12 mm (0.0048 in)
ASSEMBLY
Install the outer rotor, inner rotor and pump
shaft into the pump body.
Install the dowel pin.
Install the pump cover by aligning the hole
in the cover with the dowel pin.
Insert the pump shaft by aligning the flat
on the shaft with the flat in the inner
rotor.
＊
