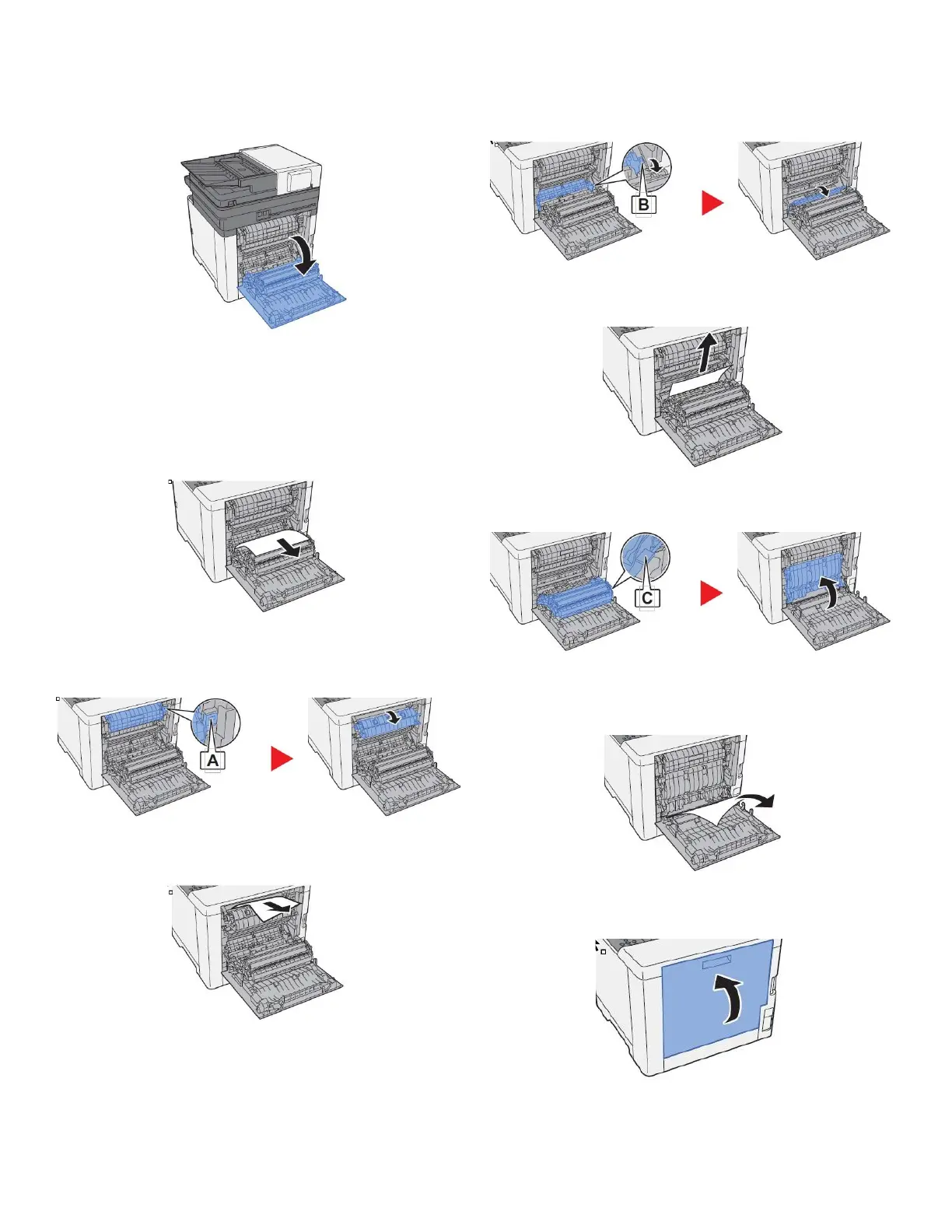

Paper Jam at the Rear Cover
1.
Open the Rear Cover 1.
2.
Remove any jammed paper. Do not reuse the
jammed papers. If the paper tears during removal, be
sure to remove any loose scraps of paper from inside the
machine. Scraps of paper left in the device could cause
subsequent jamming.
3.
Open the cover (A).
5.
Open the feed cover (B).
6.
Remove any jammed paper.
7.
Open the duplex unit (C).
4. Remove any jammed paper.
8.
Remove any jammed paper.
9.
Push and close the Rear Cover 1.
