3NY
1-4-5

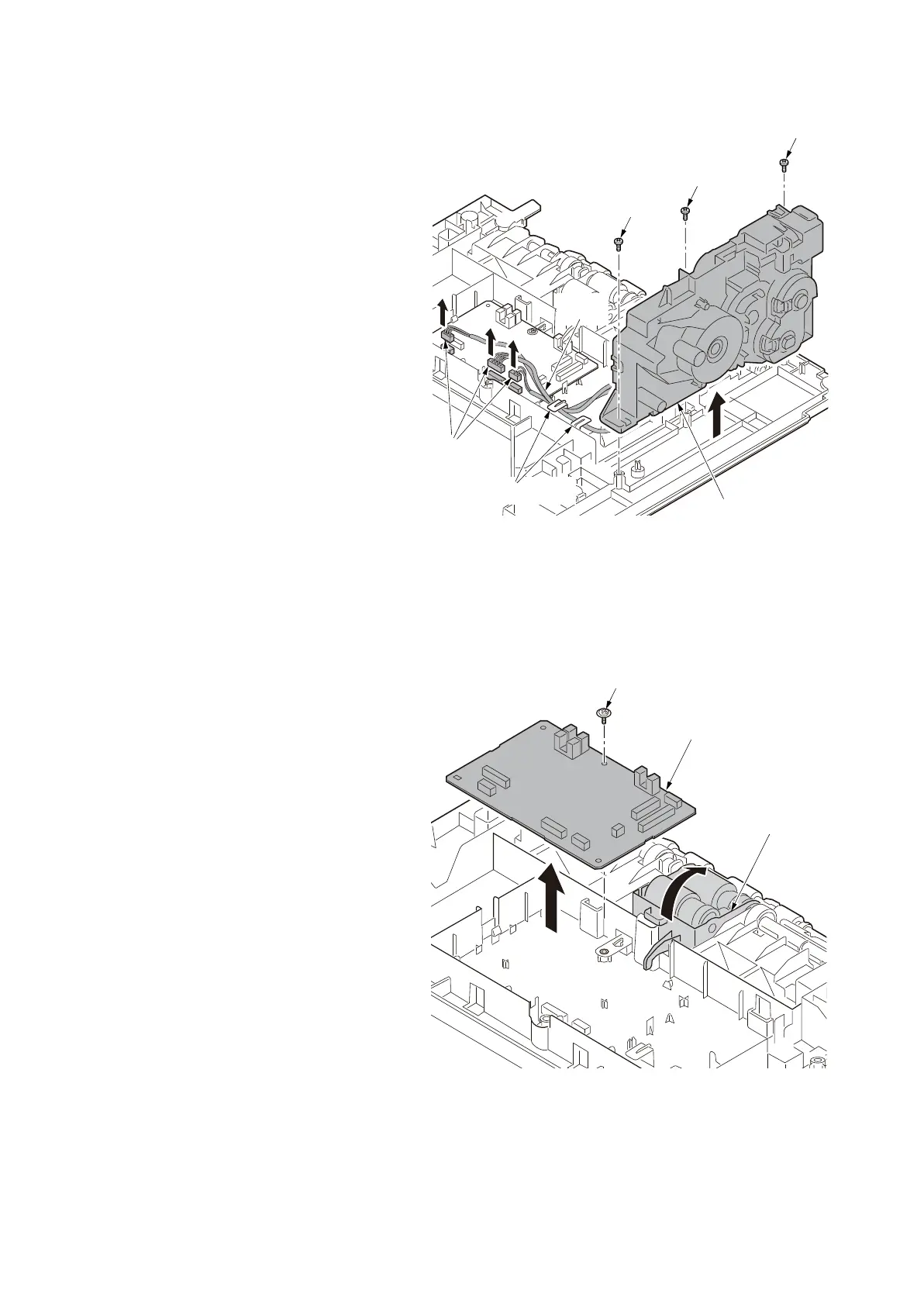

7. Pull the three connectors out and then
release the wires from the wire holders.
8. Remove the three screws and then
remove the drive unit.
Figure 1-4-6
9. Pull the paper feed roller assembly up.
10. Remove all connectors from the PF
main PWB.
11. Remove the screw and then remove the
PF main PWB.
12. Check or replace the drive unit or PF
main PWB and refit all the removed
parts.
Figure 1-4-7
Screw
Screw
Screw
Connectors
Wire holders
Drive unit
Wires
Screw
PF main PWB
Paper feed roller
assembly
To Next Page
