Kyocera ECOSYS P3045dn - Memory Card (SD Card)

To Next Page

To Previous Page

2T6/2T7/2T8/2T9

1-2-13

(2) Memory card (SD card)

Procedure

1. Remove the inlet cover and slot cover.

(SeePage 1-5-3)

2. Remove two screws and the slot cover.

3. SD card is inserted in a SD card slot.

4. Refit the removed covers.

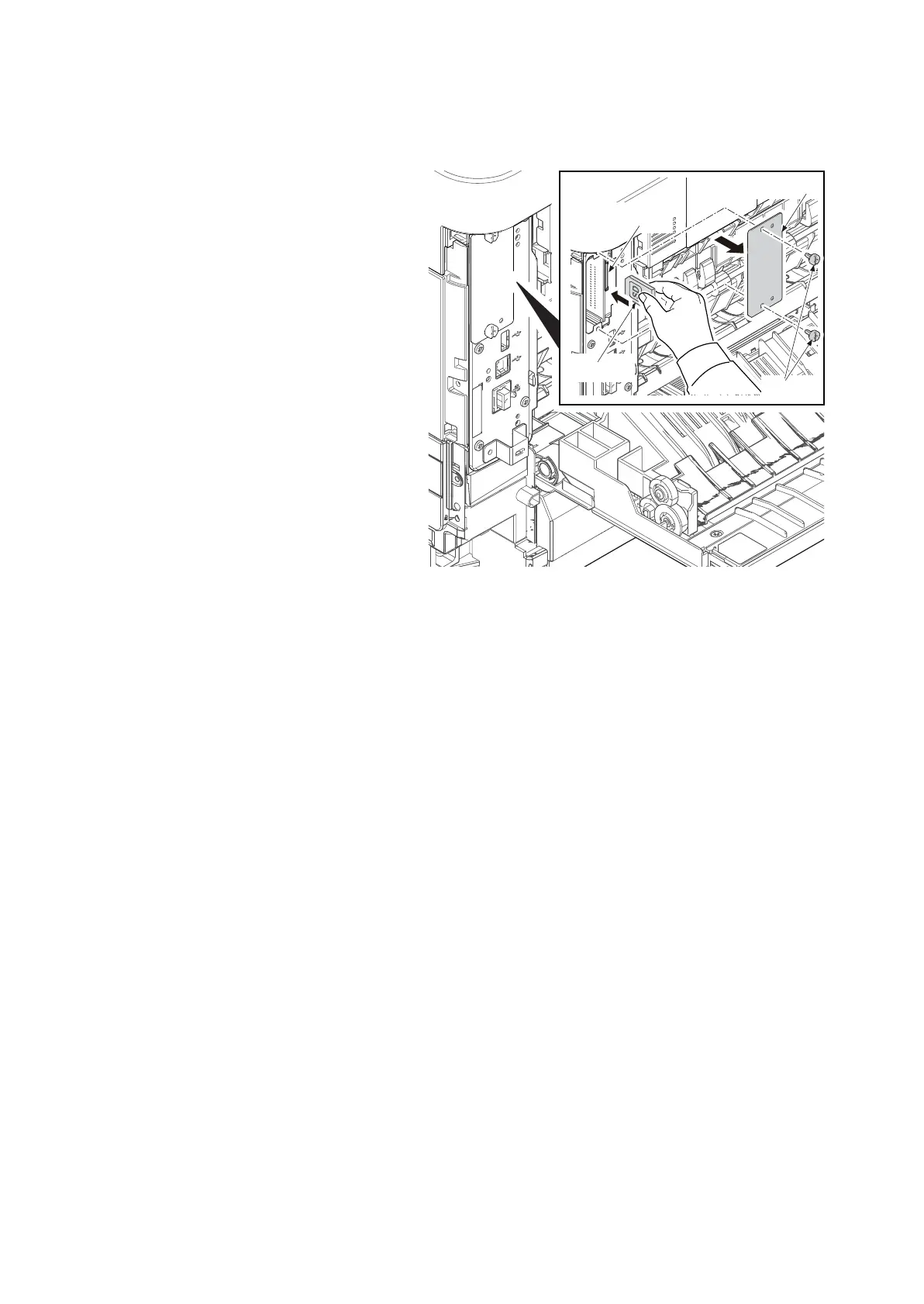

Figure 1-2-23

SD card slot

Slot cover

Screws

SD card
