Kyocera ECOSYS P3045dn Service Manual

3S3
1-3-10
(7) The tray is still
kept on ascending
over the top position.

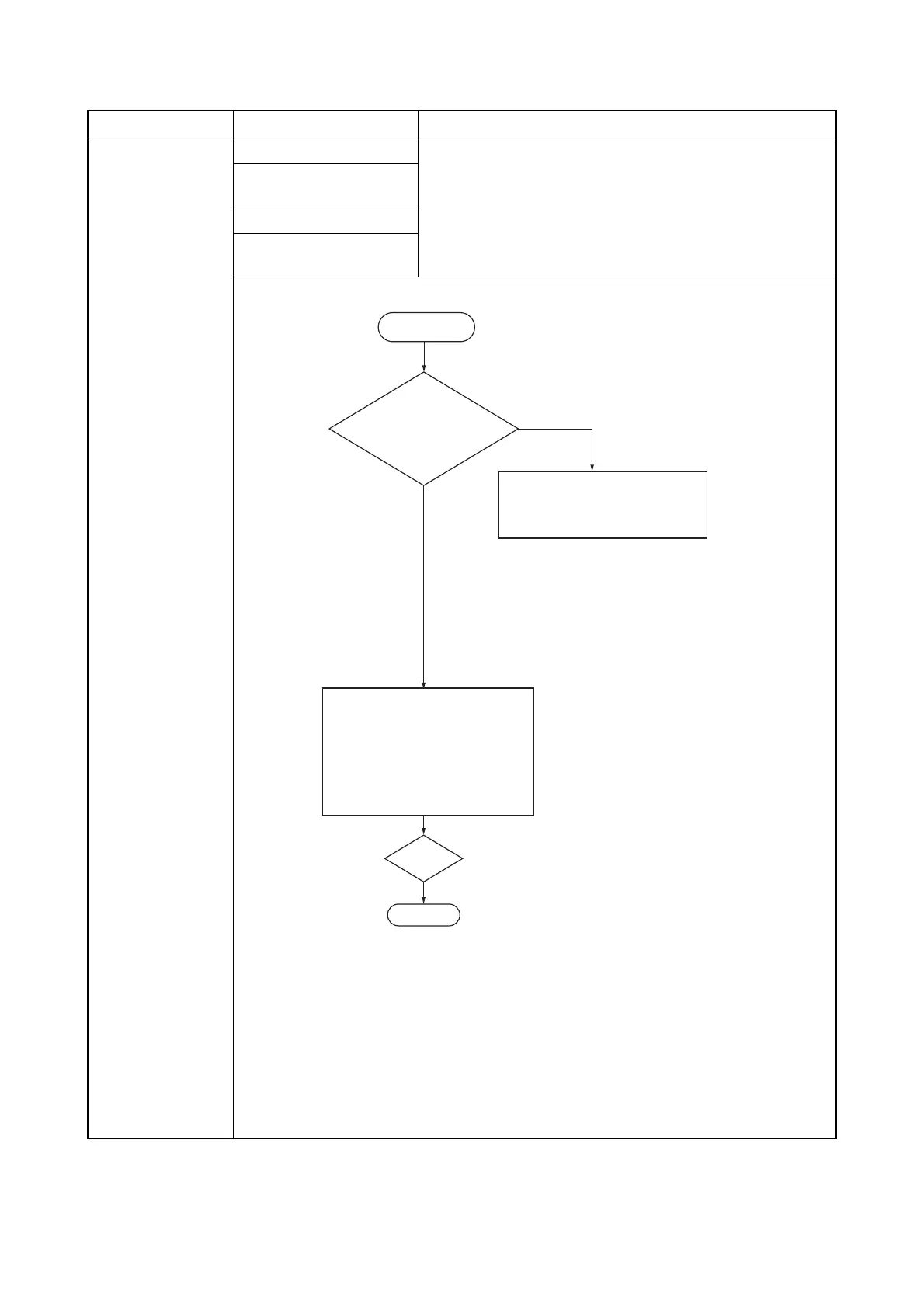

Defective PF main PWB. Follow the flow chart below.
Defective tray elevation
motor.
Defective wire.
Defective tray top position
sensor.
Problem
Causes/check procedures Corrective measures
No
Yes
Replace PF main PWB.
Replace tray elevation motor.
Replace wire between PF main
PWB and tray elevation motor.
Replace wire between top position
detecting tray top position sensor
and PF main PWB.
Replace tray top position sensor, or
repair/replace actuator.
After replacing items described
above, check whether the operation
status is in good status or not.
OK?
End
Start
Pin 3 of YC5 = 0 V
with tray be reached to
the top position?

Kyocera ECOSYS P3045dn Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.9 s
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Number of print cartridges	1
Page description languages	IBM ProPrinter XL24E, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3, XPS
AC input voltage	220 V
AC input frequency	50 Hz
Power consumption (off)	0.9 W
Power consumption (ready)	10 W
Power consumption (printing)	594 W
Internal memory	512 MB
Noise level (ready)	27.1 dB
Maximum internal memory	2560 MB
Sound pressure level (printing)	52.8 dB
Sound pressure level (quiet mode)	51.5 dB
Sustainability certificates	ENERGY STAR
Display	LED
Certification	TÜV-GS, CE
Product color	Black, White
Display number of lines	5 lines
Paper input type	Cassette, Paper tray
Total input capacity	500 sheets
Total output capacity	- sheets
Maximum input capacity	2600 sheets
Multi-Purpose tray input capacity	100 sheets
Custom media width	70 - 216 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 120 g/m²
Maximum media length	915 mm
Paper tray media types	Banner, Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	-
Security algorithms	HTTPS, IPPS, IPSEC, SSL/TLS
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service
Other operating systems supported	Android, iOS
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	2

Weight and Dimensions

Depth	416 mm
Width	380 mm
Height	285 mm
