8. Remove all connectors from relay-L
PWB and then release the wires from
hooks.
9. Remove the LSU fan motor assembly
upward.

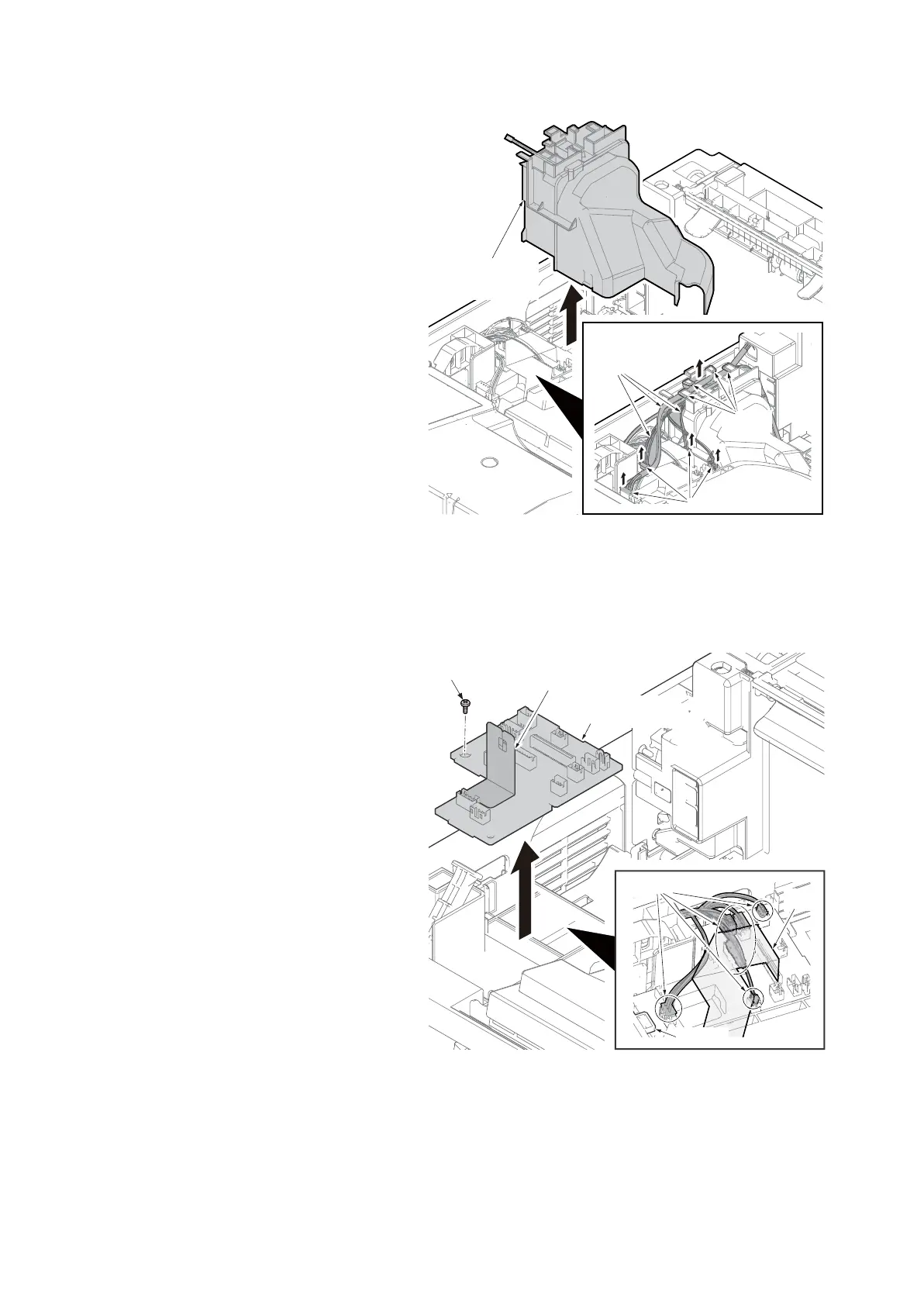

Figure 1-5-85
10. Remove the connectors and FFC.
11. Remove the screw and remove the
relay-L PWB.
12. Remove the sheet from the relay-L
PWB.
13. Check or replace the relay-L PWB and
refit all the removed parts.
Figure 1-5-86
Connectors
Hooks
Wires
LSU fan motor
assembly
Connectors
Hook
FFC
Connect-L PWB
Sheet
Screw
