(3) Conveying section
The conveying section conveys paper to the transfer/separation section as paper feeding from the cassette or
MP tray, or as paper refeeding for duplex printing. Paper by feeding is conveyed by the paper feed roller to the
position where the registration sensor (RS) is turned on, and then sent to the transfer/separation section by
the upper registration roller and lower registration roller.

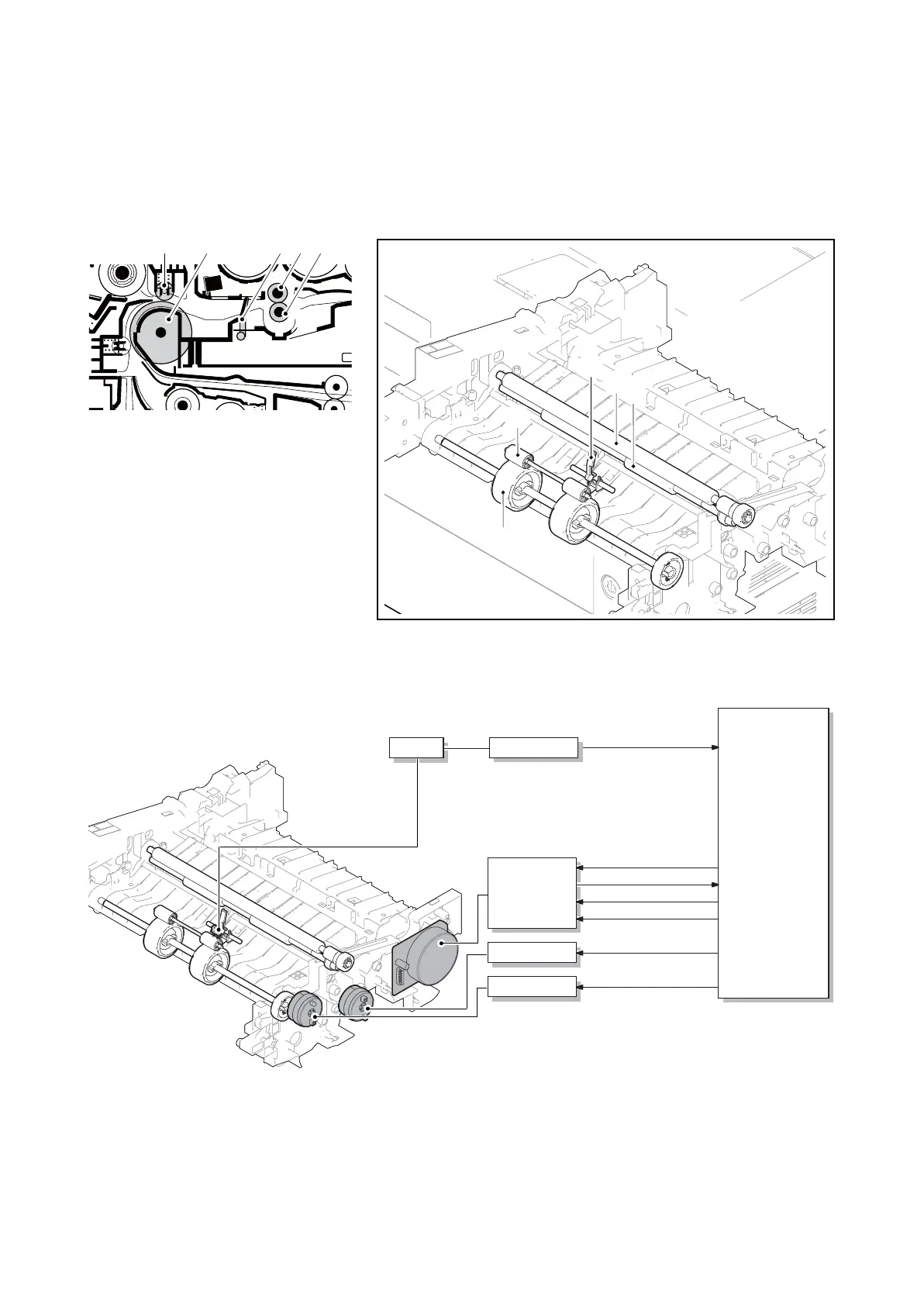

Figure 2-1-5
Figure 2-1-6
1 4 5
2
3
2
3
5
4
1
1. Middle feed roller
2. Feed DU pulley
3. Actuator
(Registration sensor (RS))
4. Upper registration roller
5. Lower registration roller
YC4-1
YC4-2
YC4-3
YC4-4
YC5-6
MMOTCW
MMOTRDYN
MMOTCLKN
MMOTONN
REGCLN
6
MM 5
4
3
RCL
EPWB
RS
YC19-12
HVPWB
REGSENSN
YC5-8
MIDCLN
PCCL
