2P7/2R0/3PN
1-5-14

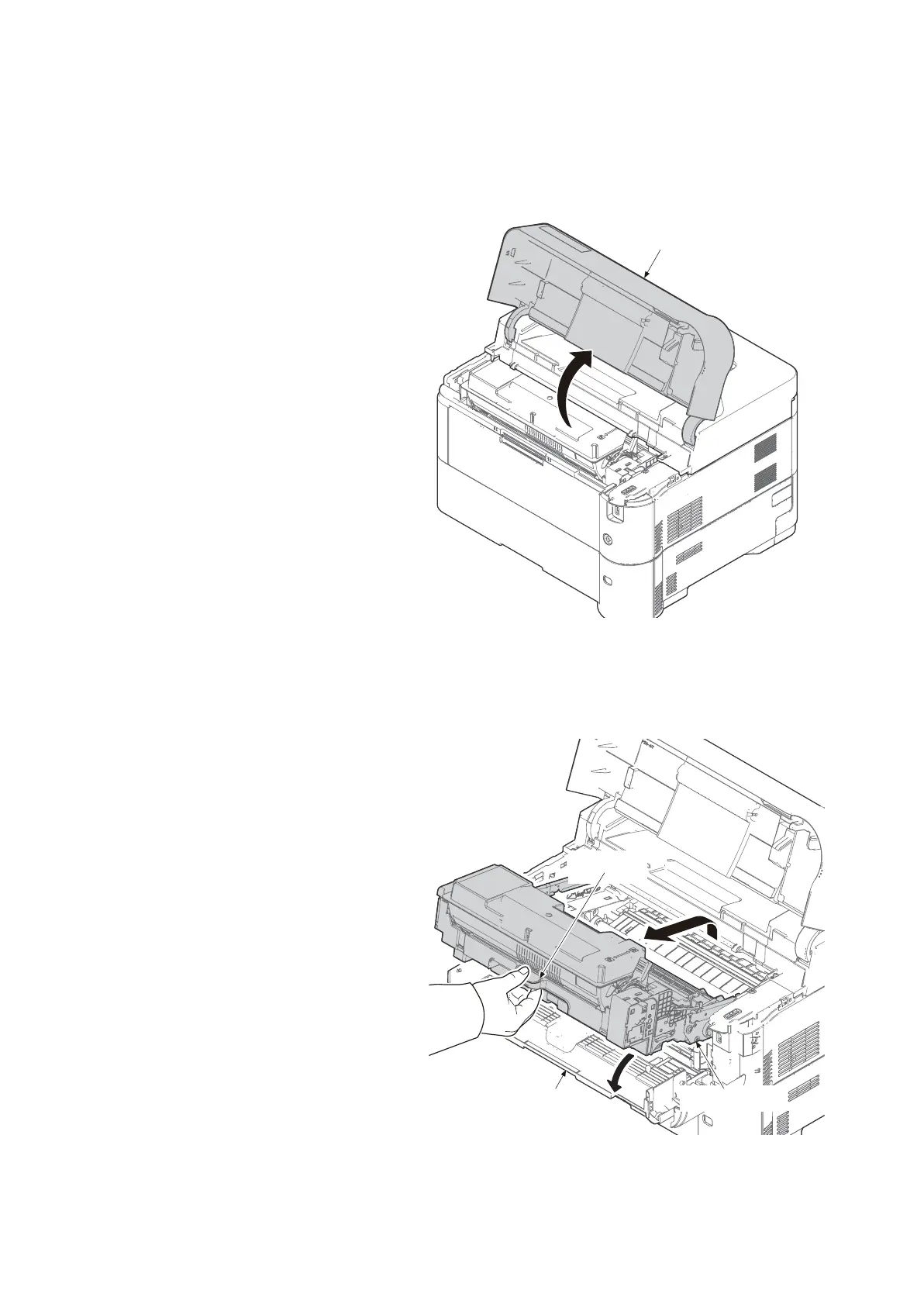

1-5-4 Developer section
(1) Detaching and refitting the developer unit
Procedure
1. Open the top cover.
Figure 1-5-24
2. Open the front cover.
3. Grip the knob and then Pull the imaging
unit forward.
Figure 1-5-25
Top cover
Imaging unit
Front cover
Knob
