2P7/2R0/3PN

1-5-78

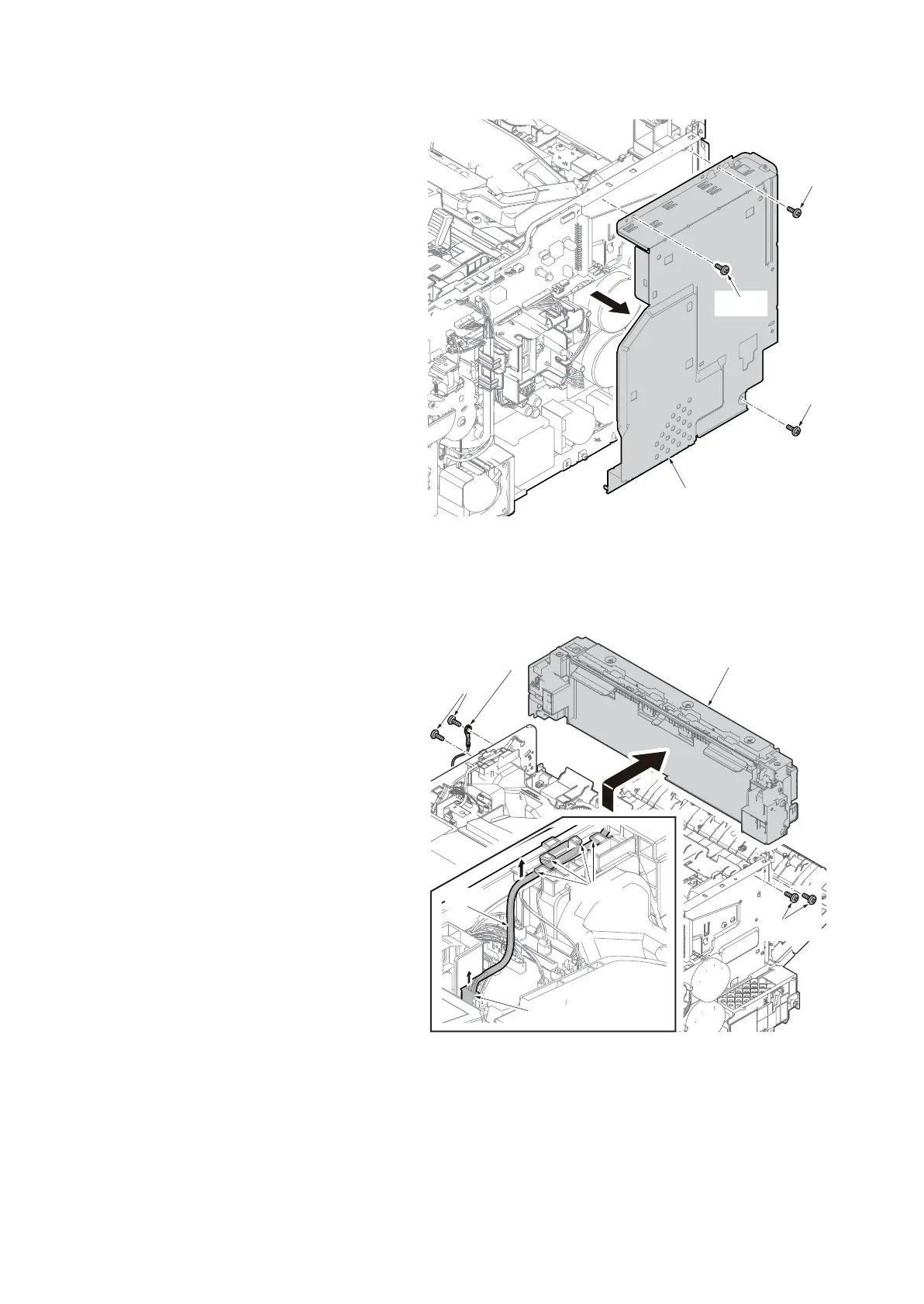

24. Remove three screws and then remove

the controller box cover.

Figure 1-5-143

25. Release the connector and then

release the wire from the hooks.

26. Remove three screws and then remove

the eject unit.

Figure 1-5-144

Controller box cover

Screw

Eject unit

Screws

Connector

Hooks

Wire

Grounding

terminal

Screws
