Kyocera ECOSYS P6021cdn Service Manual

2KT/2KV
1-5-34
(4) Detaching and refitting the high voltage PWB
Procedure
1. Remove the top cover (see page 1-5-3).
1. Remove the right rear cover and right
cover (see page 1-5-5).
2. Remove the FFC from the high voltage
PWB.

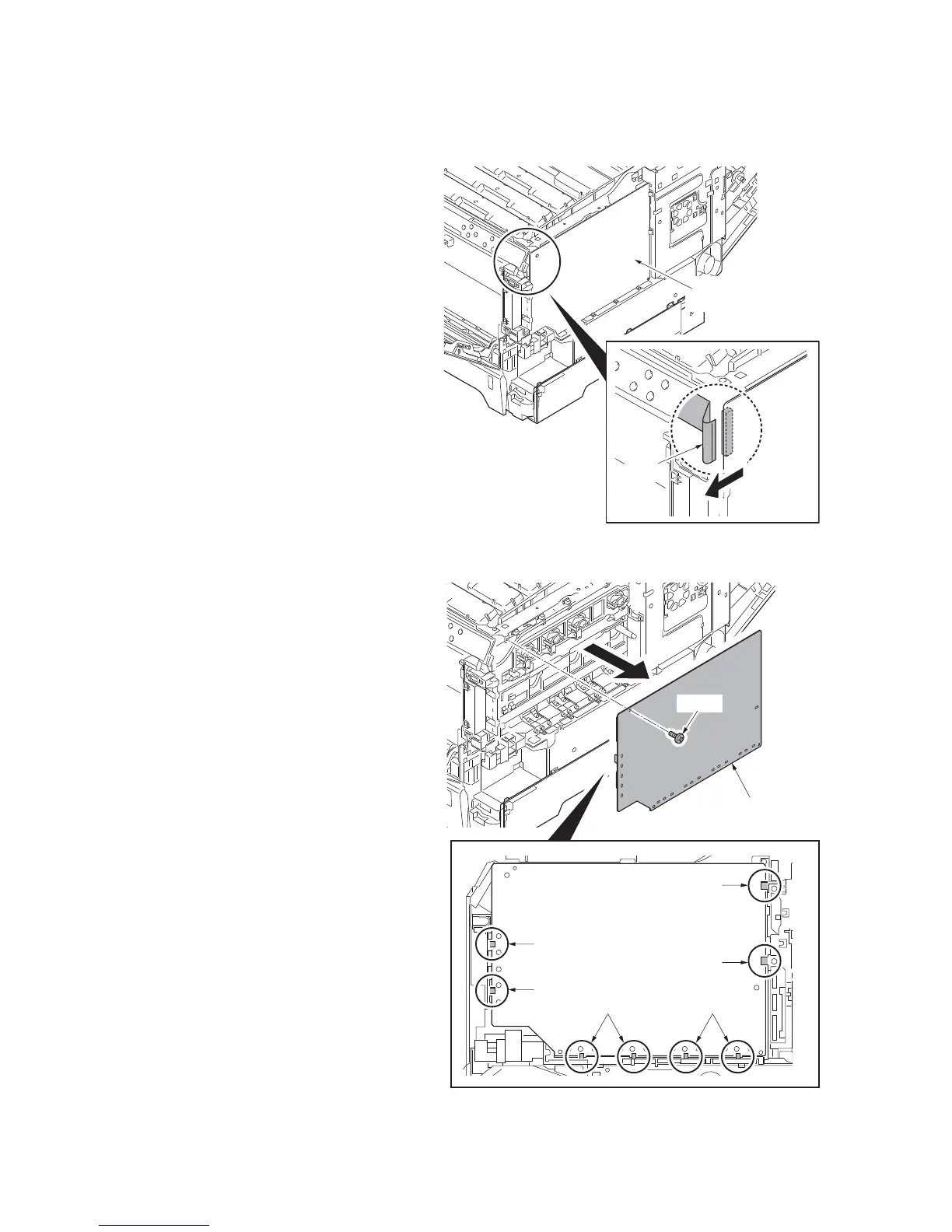

Figure 1-5-50
3. Remove the screw.
4. Release eight hooks and then remove
the high voltage PWB.
5. Check or replace the high voltage PWB
and refit all the removed parts.
Figure 1-5-51
FFC
High voltage PWB
High voltage PWB
Hook
Hook
Hook
Hook
Hook
Hook
Screw
