Kyocera ECOSYS P6021cdn Service Manual

2KT/2KV
1-4-33
(9) Streaks are printed horizontally.
(10) Spots are printed.
(11) The leading edge of image begins to print too early or too late.
(12) Paper is wrinkled.

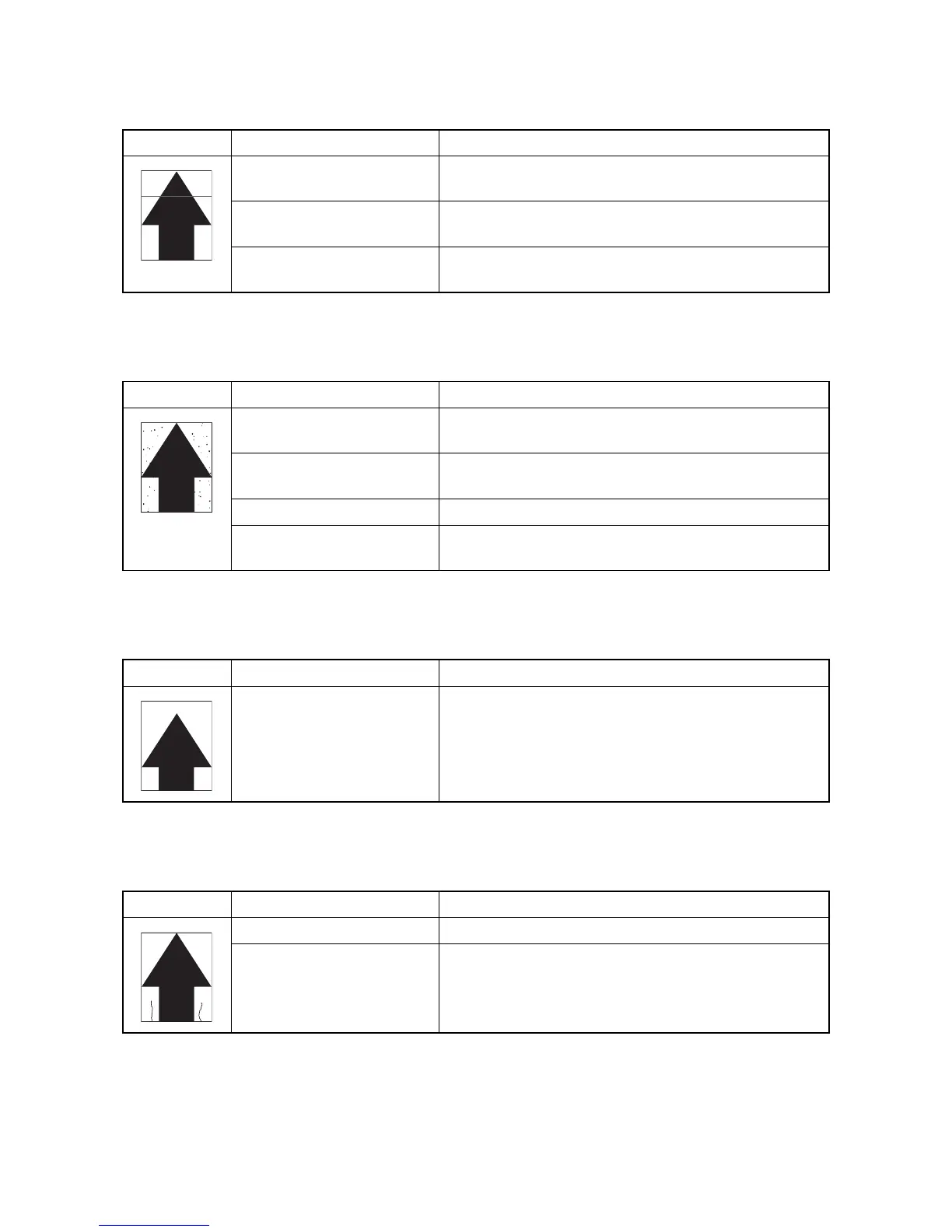

Print example Causes Check procedures/corrective measures
Dirty or flawed drum. Perform the drum surface refreshing (see page 1-3-13).
Flawed drum. Replace the drum unit (see page 1-5-20).
Dirty developing section. Clean any part contaminated with toner in the developing
section.
Poor contact of grounding ter-
minal of drum unit.
Check the installation of the drum unit. If it operates incor-
rectly, replace it (see page 1-5-20).
Print example Causes Check procedures/corrective measures
Dirty or flawed drum. Perform the drum surface refreshing (see page 1-3-13).
Flawed drum. Replace the drum unit (see page 1-5-20).
Deformed or worn cleaning
blade in the drum unit.
Replace the drum unit (see page 1-5-20).
Flawed developing roller. Replace the developing unit (see page 1-5-18).
Dirty heat roller and press
roller.
Clean the heat roller and press roller.
Print example Causes Check procedures/corrective measures
Paper feed clutch or registra-
tion clutch operating incor-
rectly.
Check the installation of the clutch. If it operates incor-
rectly, replace it.
Print example Causes Check procedures/corrective measures
Paper curled. Check the paper storage conditions.
Paper damp. Check the paper storage conditions.

Kyocera ECOSYS P6021cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	10.5 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	50000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	550 sheets
Total output capacity	- sheets
Maximum input capacity	1300 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound pressure level (printing)	48.2 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	2 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.1 W
Power consumption (standby)	61 W
Power consumption (printing)	353 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	523 mm
Width	390 mm
Height	370 mm
