Kyocera ECOSYS P6021cdn Service Manual

2KT/2KV
1-4-32
(6) The background is colored.
(7) White streaks are printed vertically.
(8) Black streaks are printed vertically.

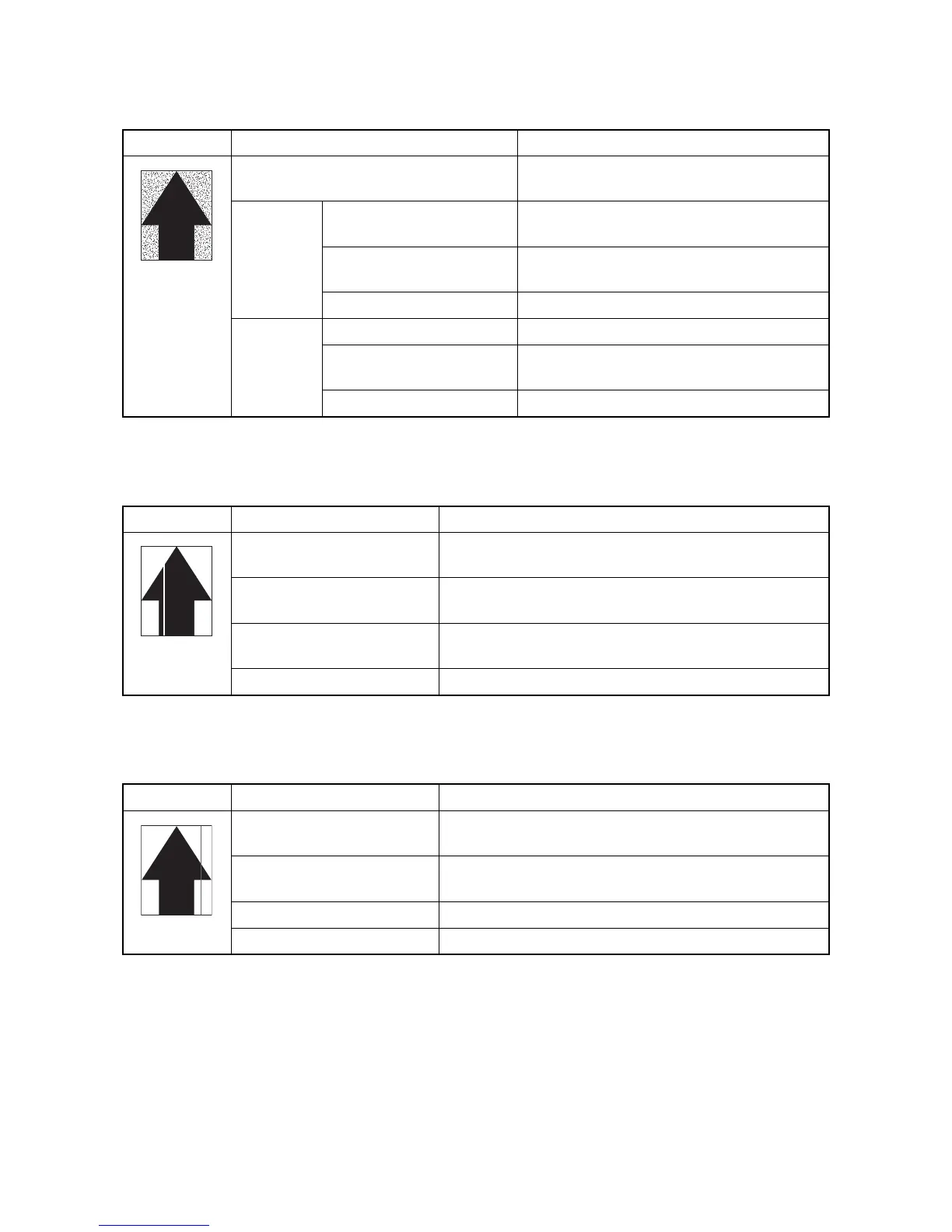

Print example Causes Check procedures/corrective measures
Defective color calibration. Perform the color calibration (Refer to opera-
tion guide).
Defective
developing
bias output.
Defective developing unit. Replace the developing unit for the color that
causes an error (see page 1-5-18).
Defective high voltage
PWB.
Replace the high voltage PWB
(see page 1-5-34).
Defective engine PWB. Replace the engine PWB (see page 1-5-26).
Defective
drum sur-
face charg-
ing.
Defective drum unit. Replace the drum unit (see page 1-5-20).
Defective high voltage
PWB.
Replace the high voltage PWB
(see page 1-5-34).
Defective engine PWB. Replace the engine PWB (see page 1-5-26).
Print example Causes Check procedures/corrective measures
Foreign object in one of the
developing units.
Replace the developing unit for the color that causes an
error (see page 1-5-18).
Adhesion of soiling to transfer
belt.
Clean the transfer belt. Replace the intermediate transfer
unit if it is extremely dirty (see page 1-5-21).
Adhesion of soiling to transfer
roller.
Clean the transfer roller. Replace the transfer roller if it is
extremely dirty (see page 1-5-24).
Dirty LSU dust shield glass. Perform the LSU dust shield glass cleaning.
Print example Causes Check procedures/corrective measures
Dirty or flawed drum. Perform the drum surface refreshing (see page 1-3-13).
Flawed drum. Replace the drum unit (see page 1-5-20).
Deformed or worn cleaning
blade in the drum unit.
Replace the drum unit (see page 1-5-20).
Worn primary transfer belt. Replace the intermediate transfer unit (see page 1-5-21).
Defective transfer roller. Replace the transfer roller (see page 1-5-24).

Kyocera ECOSYS P6021cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	10.5 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	50000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	550 sheets
Total output capacity	- sheets
Maximum input capacity	1300 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound pressure level (printing)	48.2 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	2 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.1 W
Power consumption (standby)	61 W
Power consumption (printing)	353 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR
