Kyocera ECOSYS P6021cdn Service Manual

2KT/2KV
2-2-4
(2) Switches and sensors

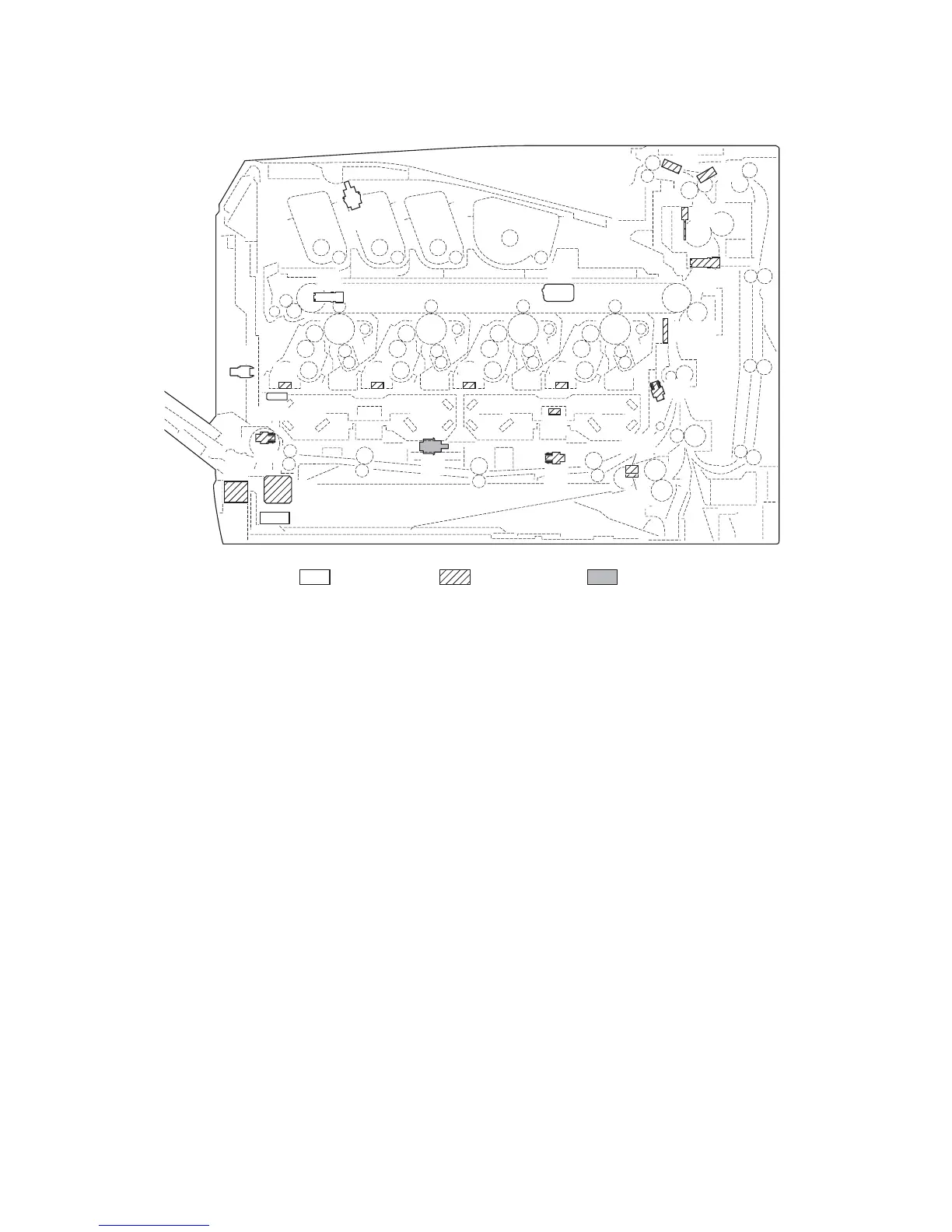

Figure 2-2-2 Switches and sensors
1. Main power switch (MSW) .................... Turns ON/OFF the AC power source.
2. Interlock switch (ILSW) ......................... Shuts off 24 V DC power line when the top tray and rear cover are
opened.
3. Cassette size switch (CSSW) ............... Detects the paper size dial setting of the paper setting dial.
4. Paper sensor 1 (PS1) ........................... Detects the paper remaining amount level.
5. Paper sensor 2 (PS2)* .......................... Detects the paper remaining amount level.
6. Lift sensor (LS)...................................... Detects activation of upper limit of the bottom plate.
7. Registration sensor (RS)....................... Controls the secondary paper feed start timing.
8. MP paper sensor (MPPS) ..................... Detects the presence of paper on the MP tray.
9. MP feed sensor (MPFS) ....................... Detects a paper misfeed in the MP conveying section.
10. Eject sensor (ES) .................................. Detects a paper misfeed in the fuser or eject section.
11. Paper full sensor (PFS)* ....................... Detects the paper full in the top tray.
12. Toner sensor K (TS-K) .......................... Detects the toner density in the developing unit K.
13. Toner sensor K (TS-M).......................... Detects the toner density in the developing unit M.
14. Toner sensor K (TS-C) .......................... Detects the toner density in the developing unit C.
15. Toner sensor K (TS-Y) .......................... Detects the toner density in the developing unit Y.
16. ID sensor 1 (IDS1) ................................ Measures image density for color calibration.
17. ID sensor 2 (IDS2) ................................ Measures image density for color calibration.
18. Developing release switch
(DEVRSW)............................................ Detects separation of developing units M, C and Y.
19. Waste toner sensor (WTS).................... Detects when the waste toner box is full.
20. Envelope switch (EVSW) ...................... Detects the envelope mode setting.
21. Top tray switch (TTSW)......................... Detects the opening and closing of the top tray.
1
25
18
19
15 14 13 12
7
16,17
20
11
10
24
2
22
23
26
9
3
8
4,5
6
21
Machine insideMachine right Machine left

Kyocera ECOSYS P6021cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	10.5 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	50000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	550 sheets
Total output capacity	- sheets
Maximum input capacity	1300 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound pressure level (printing)	48.2 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	2 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.1 W
Power consumption (standby)	61 W
Power consumption (printing)	353 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	523 mm
Width	390 mm
Height	370 mm
