Kyocera ECOSYS P6021cdn Service Manual

2KT/2KV
1-4-34
(13) Offset occurs.
(14) Part of image is missing.
(15) Fusing is loose.

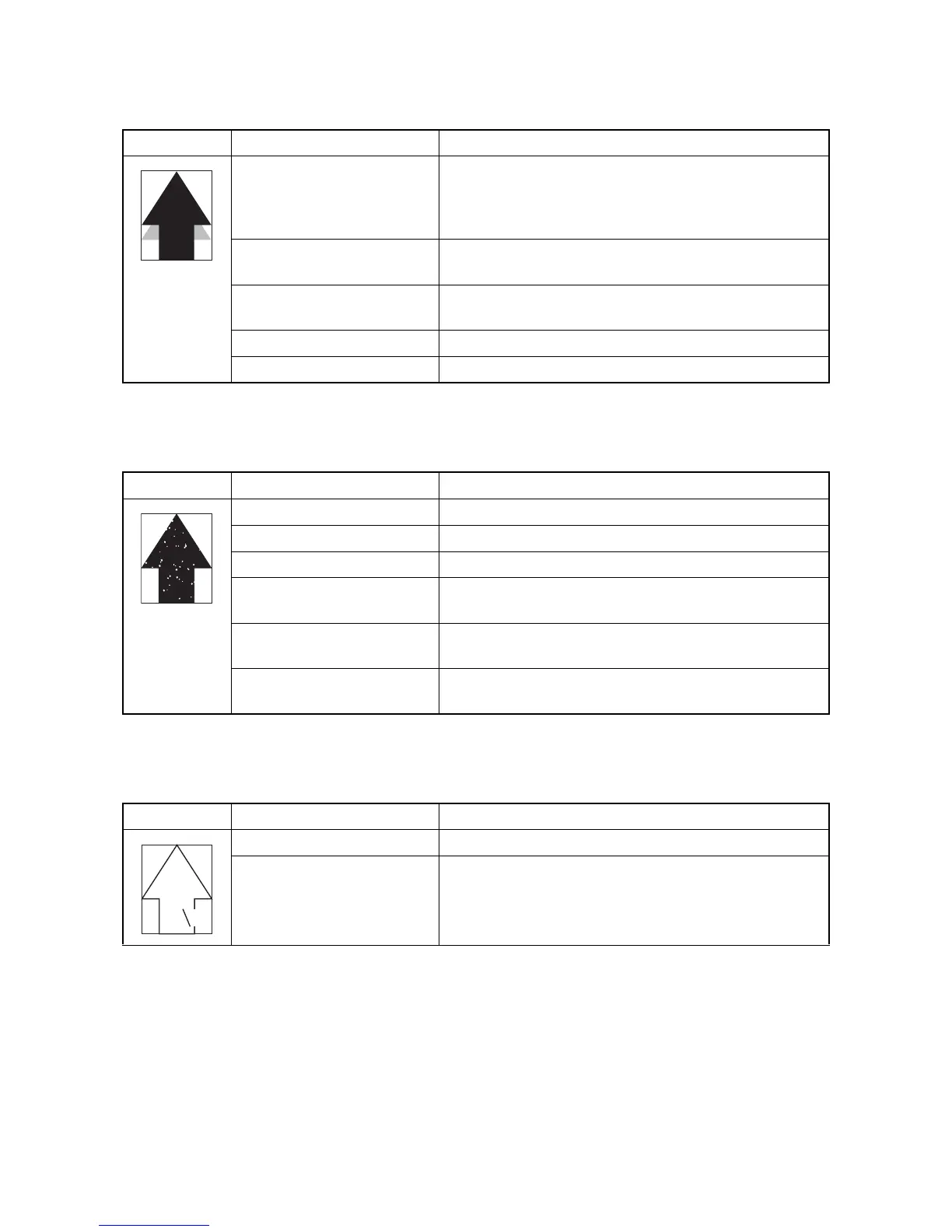

Print example Causes Check procedures/corrective measures
Defective drum surface charg-
ing.
Perform the drum surface refreshing (see page 1-3-13).
When the problem is not cleared, increase the surface
potential by performing the main charger adjustment (see
page 1-3-14).
Deformed or worn cleaning
blade in the drum unit.
Replace the drum unit (see page 1-5-20).
Defective transfer belt clean-
ing.
Replace the intermediate transfer unit (see page 1-5-21).
Defective fuser unit. Replace the fuser unit (see page 1-5-25).
Wrong types of paper. Check if the paper meets specifications. Replace paper.
Print example Causes Check procedures/corrective measures
Paper damp. Check the paper storage conditions.
Paper creased. Replace the paper.
Drum condensation. Perform the drum surface refreshing (see page 1-3-13).
Dirty or flawed drum. Perform the drum surface refreshing (see page 1-3-13).
Flawed drum. Replace the drum unit (see page 1-5-20).
Dirty transfer belt. Clean the transfer belt. Replace the intermediate transfer
unit if it is extremely dirty (see page 1-5-21).
Dirty transfer roller. Clean the transfer roller. Replace the transfer roller if it is
extremely dirty (see page 1-5-24).
Print example Causes Check procedures/corrective measures
Wrong types of paper. Check if the paper meets specifications, replace paper.
Flawed heat roller or press
roller.
Replace the fuser unit (see page 1-5-25).

Kyocera ECOSYS P6021cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	10.5 s
Print speed (black, normal quality, A4/US Letter)	21 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	50000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	550 sheets
Total output capacity	- sheets
Maximum input capacity	1300 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound pressure level (printing)	48.2 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	2 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.1 W
Power consumption (standby)	61 W
Power consumption (printing)	353 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	523 mm
Width	390 mm
Height	370 mm
