Kyocera ECOSYS P6021cdn Service Manual

2KT/2KV
2-1-13

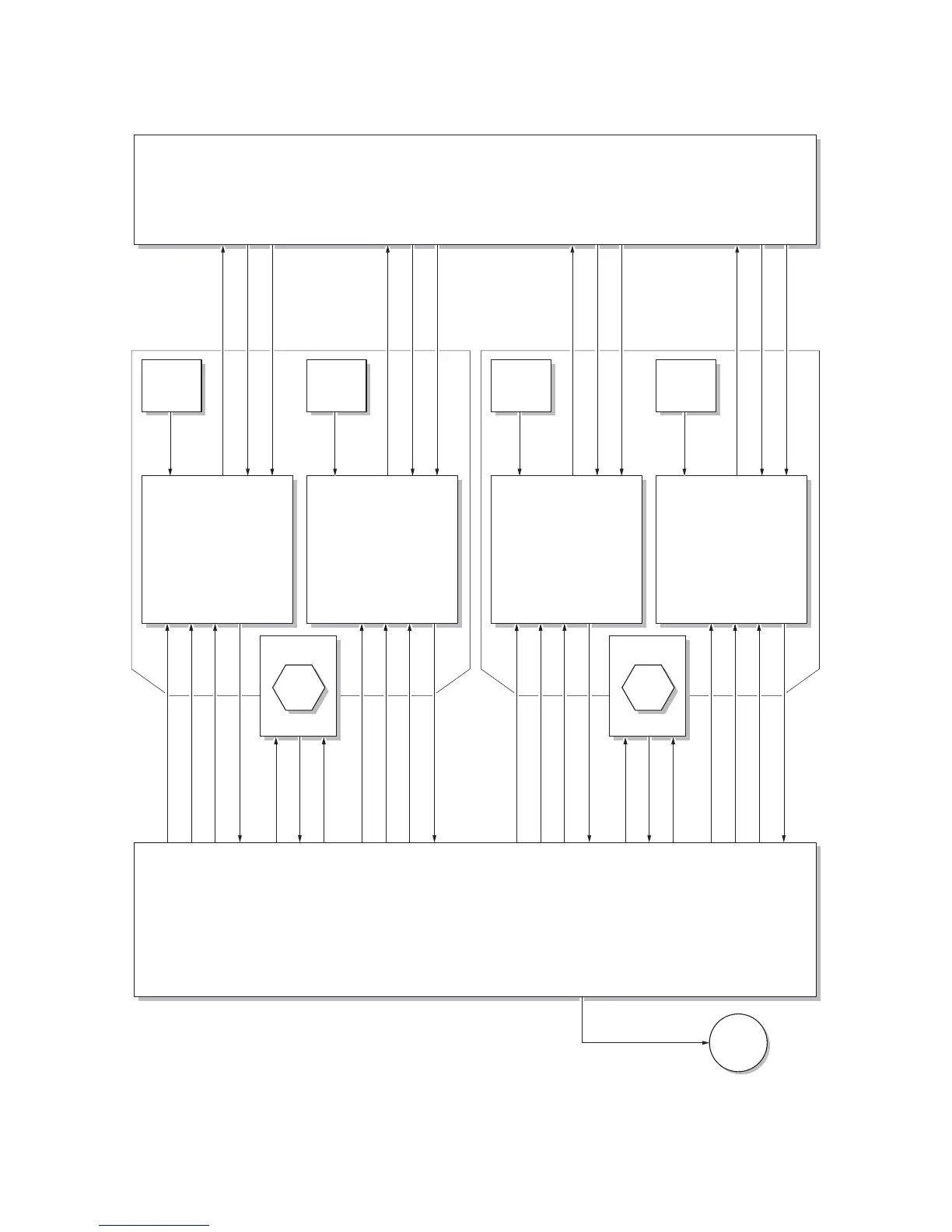

Figure 2-1-13 Laser scanner unit block diagram
MPWB
EPWB
APCPWB-Y APCPWB-C
PM-CY
123
VREFY LONBYN ENBYN PDYN VREFC LONBCN ENBCN PDCN
PDYN
VDOYP
VDOYN
PDCN
VDOCP
VDOCN
YC40-3 YC40-4 YC40-5 YC40-8 YC40-9 YC40-10
YC2-3 YC2-2 YC2-1 YC2-3 YC3-3 YC3-3 YC2-2 YC2-1
POLCLK0 POLRDYN0
PDYN
POLONN0
LSUMOTA, B
YC32-7 YC32-8 YC32-9
YC32-10
YC32-3 YC32-4 YC32-5 YC32-2
YC1-2 YC1-3 YC1-4 YC1-5 YC1-2 YC1-3 YC1-4 YC1-5
VREFC LONBCN ENBCN PDKN
YC31-3 YC31-4 YC31-5 YC31-2 YC1-2
YC1-3 YC1-4 YC1-5
YC32-12 YC32-13 YC32-14
PM-KM
123
POLCLK1 POLRDYN1 POLONN1
YC31-12 YC31-13 YC31-14
PD
PWB-Y
PDCN PDMN PDKN
PD
PWB-C
Laser
scanner
unit CY
Laser
scanner
unit KM
APCPWB-M APCPWB-K
VREFM LONBMN ENBMN PDMN
PDMN
VDOMP
VDOMN
PDKN
VDOKP
VDOKN
YC38-3 YC38-4 YC38-5 YC38-8 YC38-9 YC38-10
YC2-3 YC2-2 YC2-1 YC2-3 YC3-3 YC3-3 YC2-2 YC2-1
YC31-7
YC36-1,2
YC31-8 YC31-9
YC31-10
YC1-2 YC1-3 YC1-4 YC1-5
PD
PWB-M
PD
PWB-K
LSU
CM
