2-14 Loading Paper
Loading Paper into MP (Multi-Purpose)Tray
The FS-1300D can load up to 50 sheets of 11 × 8 1/2" or A4 paper
(80 g/m²) into the MP Tray. The FS-1100 can load one sheet into the
Manual Feed tray.

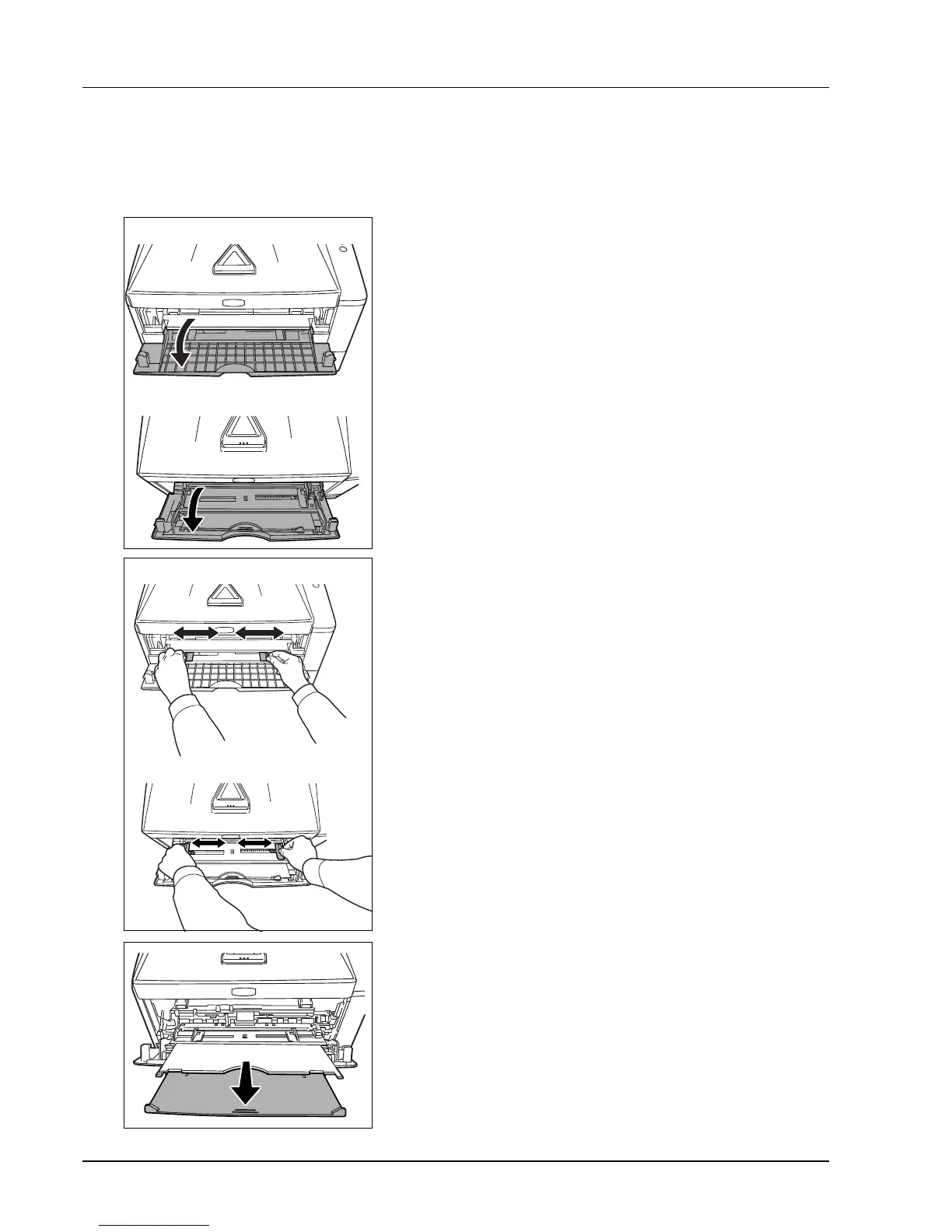

1 Pull the MP tray towards you until it stops..
2 Adjust the position of the paper guides on the MP tray. Standard
paper sizes are marked on the MP tray or Manual Feed tray. For
standard paper sizes, slide the paper guides to the corresponding
mark.
3 Pull out the subtray (FS-1300D only).
IMPORTANT When pulling the cassette out of the printer, ensure
it is supported and does not fall out.
To Next Page
