2F8/2F9/2GA-1
2-1-12
2-1-8 Paper exit section/rear unit
(1) Paper exit section/rear unit
The paper exit section transports the paper which passed the fuser unit towards the top tray. The paper which passed
through the fuser unit turns on the paper exit sensor which is driven by the fuser actuator in the fuser unit, and is led by the
guide comprised of the rear cover and the frame, finally reaching the face down upper roller. The paper is delivered to the
top tray by the rotation of the face down upper roller.

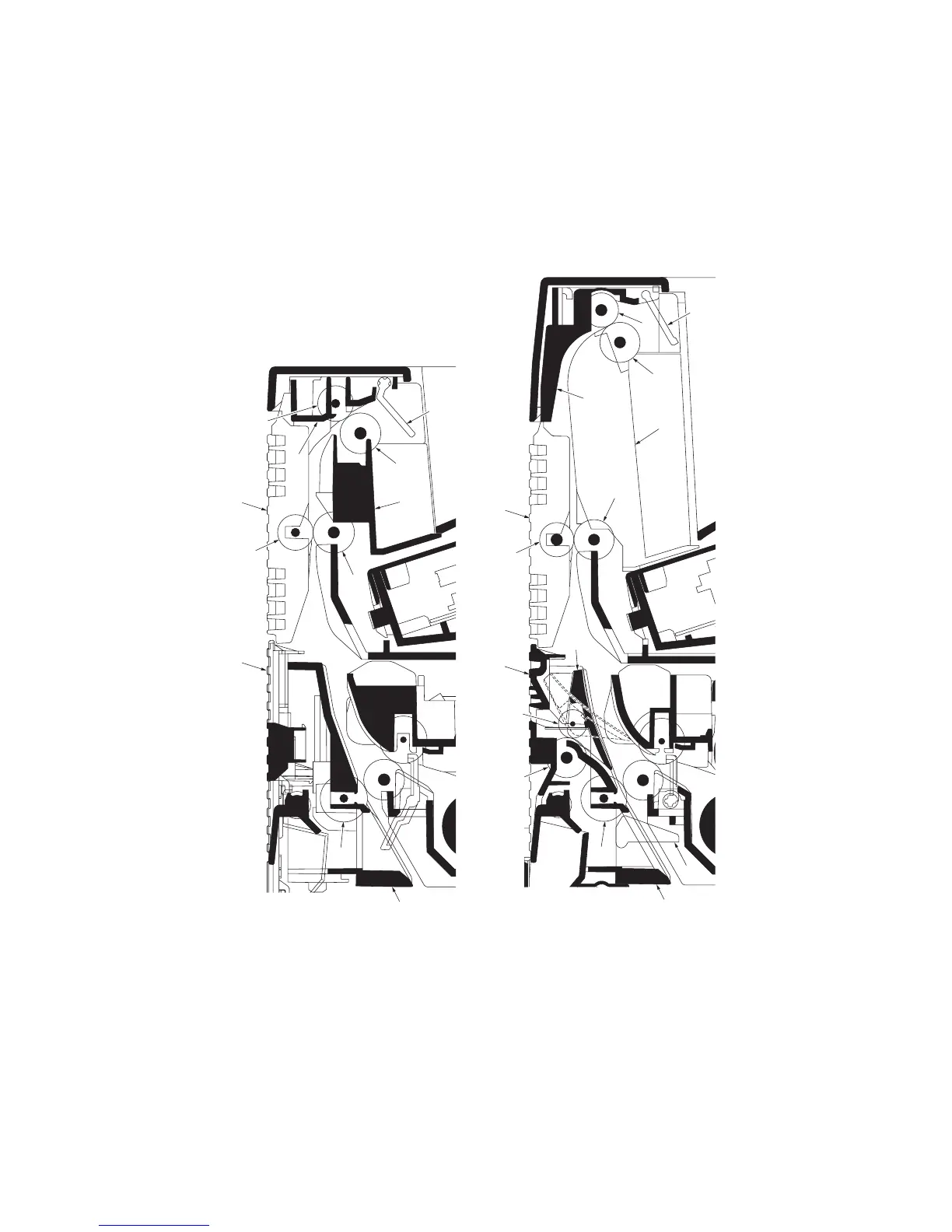

Figure 2-1-19Paper exit section/rear unit









30/31 ppm printer
(EUR/USA model)
35/37 and 45/47 ppm printer
(EUR/USA model)
(1) Face down upper roller
(2) Exit FD pulley
(3) Face down tray paper full sensor
(4) FD cover
(5) Feed FD pulley
(6) Face down lower roller
(7) DU guide
(8) Feed DU pulley
(9) Face up roller
(10) Exit FU pulley
(11) Face up guide
(12) Duplex sensor (Actuator)
(13) Vertical guide
(14) Paper exit guide
(15) Rear cover
