Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
1-5-32

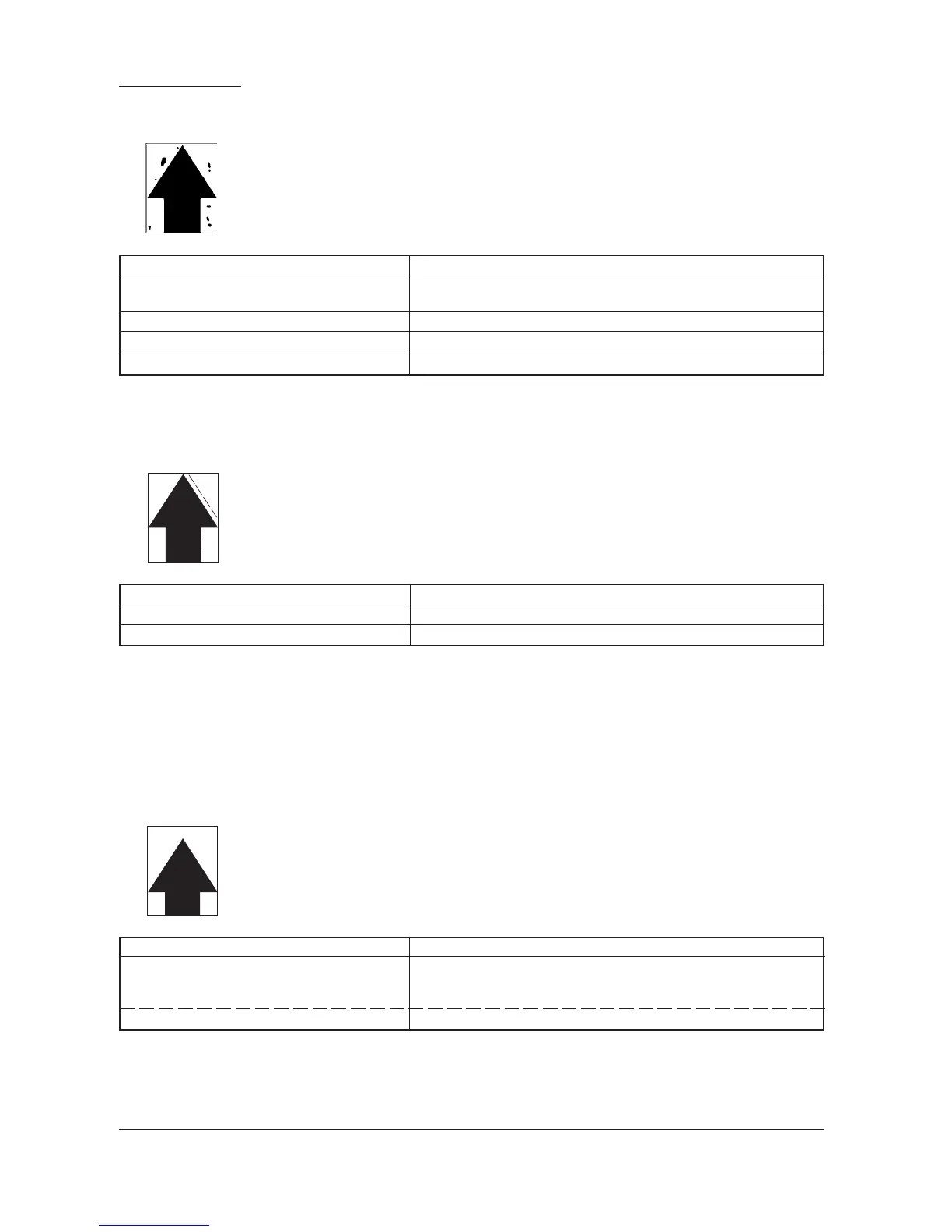

(11) The leading edge of
the image is mis-
aligned.
Causes
1. Feed clutch, paper feed clutch, MP paper feed
clutch or registration clutch installed or
operating incorrectly.
2. Defective engine controller PWB.
Causes Check procedures/corrective measures
1. Feed clutch, paper feed clutch, MP paper
feed clutch or registration clutch installed or
operating incorrectly.
2. Defective engine controller PWB.
(10) Image is blurred.
(9) Black dots appear on
the image.
Causes
1. Dirty or flawed drum.
2. Deformed or worn cleaning blade.
3. Dirty drum separation claws.
4. Dirty heat roller separation claws.
Causes Check procedures/corrective measures
1. Dirty or flawed drum.
2. Deformed or worn cleaning blade.
3. Dirty drum separation claws.
4. Dirty the heat roller separation claws.
Causes
1. Deformed press roller.
2. Paper conveying section drive problem.
Causes Check procedures/corrective measures
1. Deformed press roller.
2. Paper conveying section drive problem.
Replace the press roller (see page 1-6-18).
Check the gears and belts and, if necessary, grease them.
Check the installation position and operation of the feed clutch,
paper feed clutch, MP paper feed clutch and registration clutch. If
any of them operates incorrectly, replace it.
Replace the engine controller PWB (see page 1-6-24).
Perform the drum refresh operation. If the drum is flawed, replace
the drum unit.
Replace the drum unit (see page 1-6-14).
Clean the drum separation claws.
Clean the heat roller separation claws.

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
