Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
1-5-33

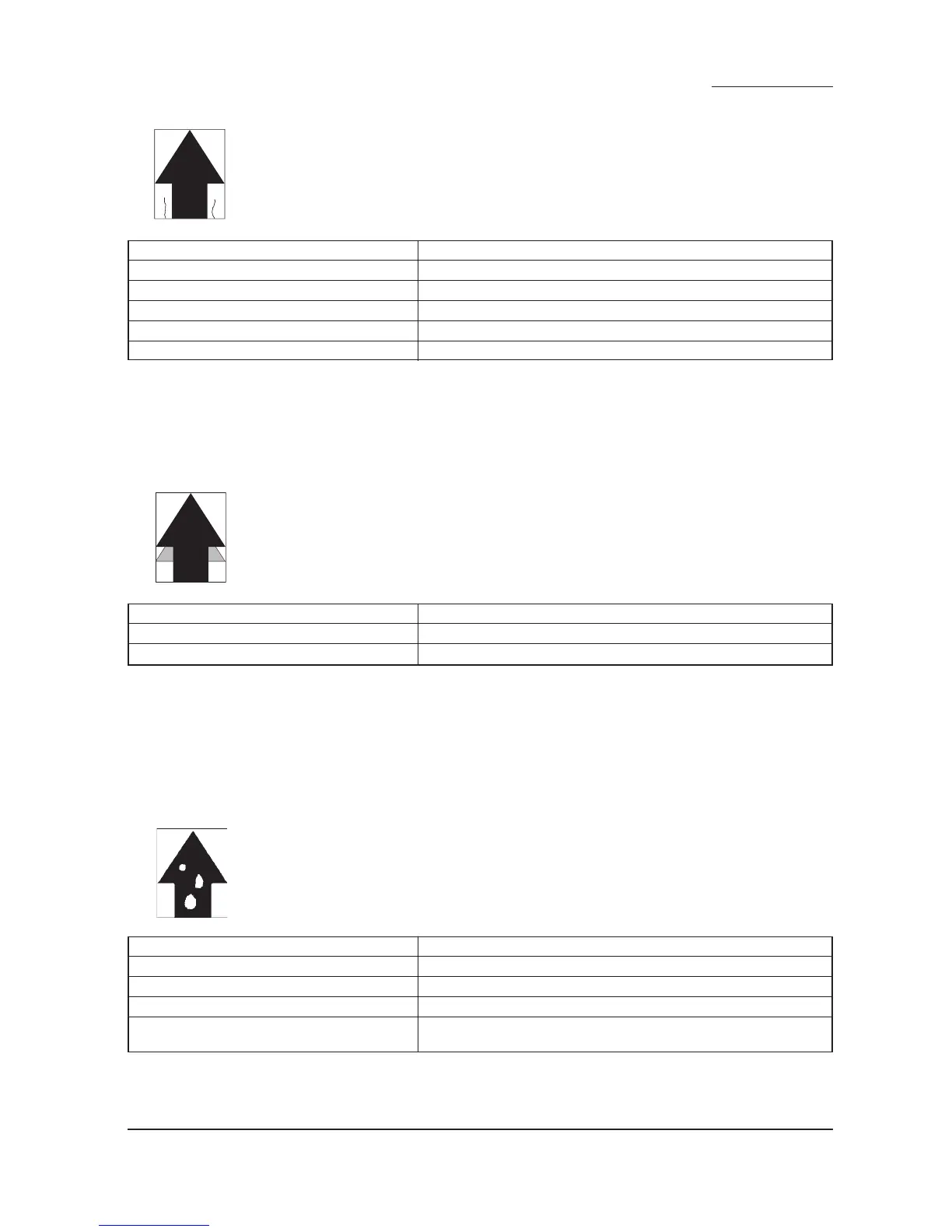

(13) Offset occurs.
(12) Paper creases. Causes
1. Paper curled.
2. Paper damp.
3. Defective pressure springs.
4. Defective separation.
5. Defective fans.
Causes Check procedures/corrective measures
1. Paper curled. Check the paper storage conditions.
2. Paper damp. Check the paper storage conditions.
3. Defective pressure springs. Replace the pressure springs.
4. Defective separation. Check the drum separation claws and heat roller separation claws.
5. Defective fans. Replace the fans.
Causes
1. Defective cleaning blade.
2. Defective fuser section.
Causes Check procedures/corrective measures
1. Defective cleaning blade. Replace the drum unit (see page 1-6-14).
2. Defective fuser section. Replace the heat roller and press roller (see page 1-6-19 and 21).
(14) Image is partly miss-
ing.
Causes
1. Paper damp.
2. Paper creased.
3. Drum condensation.
4. Flawed drum.
Causes Check procedures/corrective measures
1. Paper damp. Check the paper storage conditions.
2. Paper creased. Replace the paper.
3. Drum condensation. Perform the drum refresh operation.
4. Flawed drum. Perform the drum refresh operation. If the drum is flawed, replace
the drum unit.

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
