Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
2-1-8
Drum

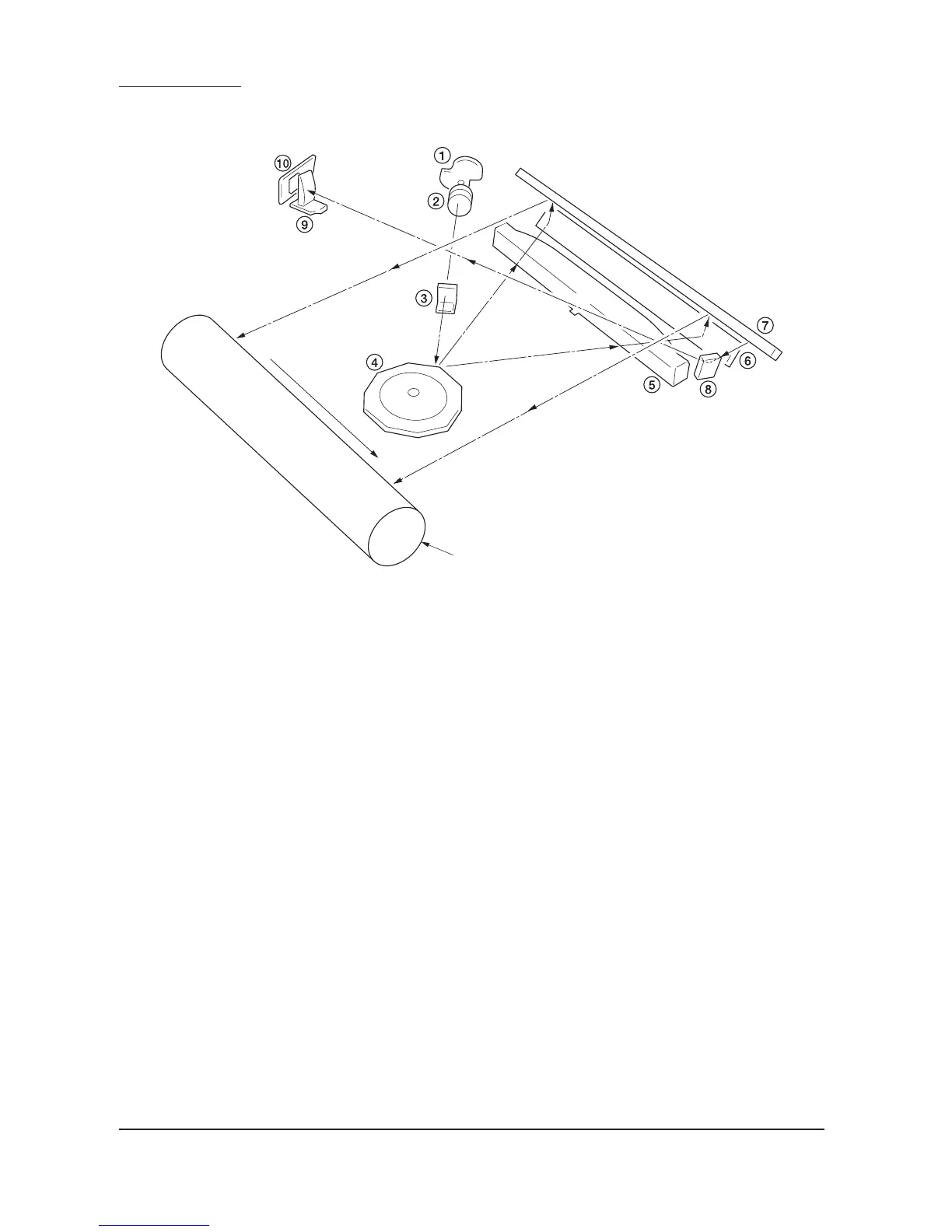

Figure 2-1-8 Laser scanner unit (2)
1 Laser diode: Generates the laser beam which forms a latent image on the drum.
2 Collimator lens: Collimates the diffused laser beam emitted from the laser diode to convert it into a cylindrical beam.
3 Cylindrical lens: Shapes the collimated laser beam to suit the printing resolution.
4 Polygon mirror: Nine-facet mirror that rotates at approximately 28031/36220 (FS-9120DN/9520DN) rpm with each
face reflecting the laser beam toward the drum for one main-direction scan.
5 Fϑ lens: Corrects for non-linearity of the laser beam scanning speed on the drum surface, keeps the beam diameter
constant and corrects for the vertical alignment of the polygon mirror to ensure that the focal plane of the laser beam
is on the drum surface.
6 Mirror: Reflects the laser beam and changes the irradiation direction.
7 Mirror: Reflects the laser beam and changes the irradiation direction.
8 BD sensor mirror: Reflects the laser beam to the BD sensor to generate the main-direction (horizontal) sync signal.
9 Cylindrical correcting lens: Corrects for the deviation of the laser beam reflected by the BD sensor mirror to the BD
sensor.
0 BD sensor: Detects the beam reflected by the BD sensor mirror, outputting a signal to the engine controller PWB
(EPWB) to provide timing for the main-direction sync signal.

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
