Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
2-3-11
YS1
YC9
U30
U1
U8
U18 U17
U20 U19
U22
U24
YS2
YS3
U23
T1
X7
X1
X2
X5
X6
X4
X3
U10
U2
U34
U37
U36
U33
U13
U12
U11
U14 U15
U38
U16
YC10
U31
U25
YC6
YC2
YC4 YC5 YC3
YC12
YC7
YC8
YC11
U7
U29
U21
U32 U35
U28
U5 U9 U4 U6
U27
U26
U40

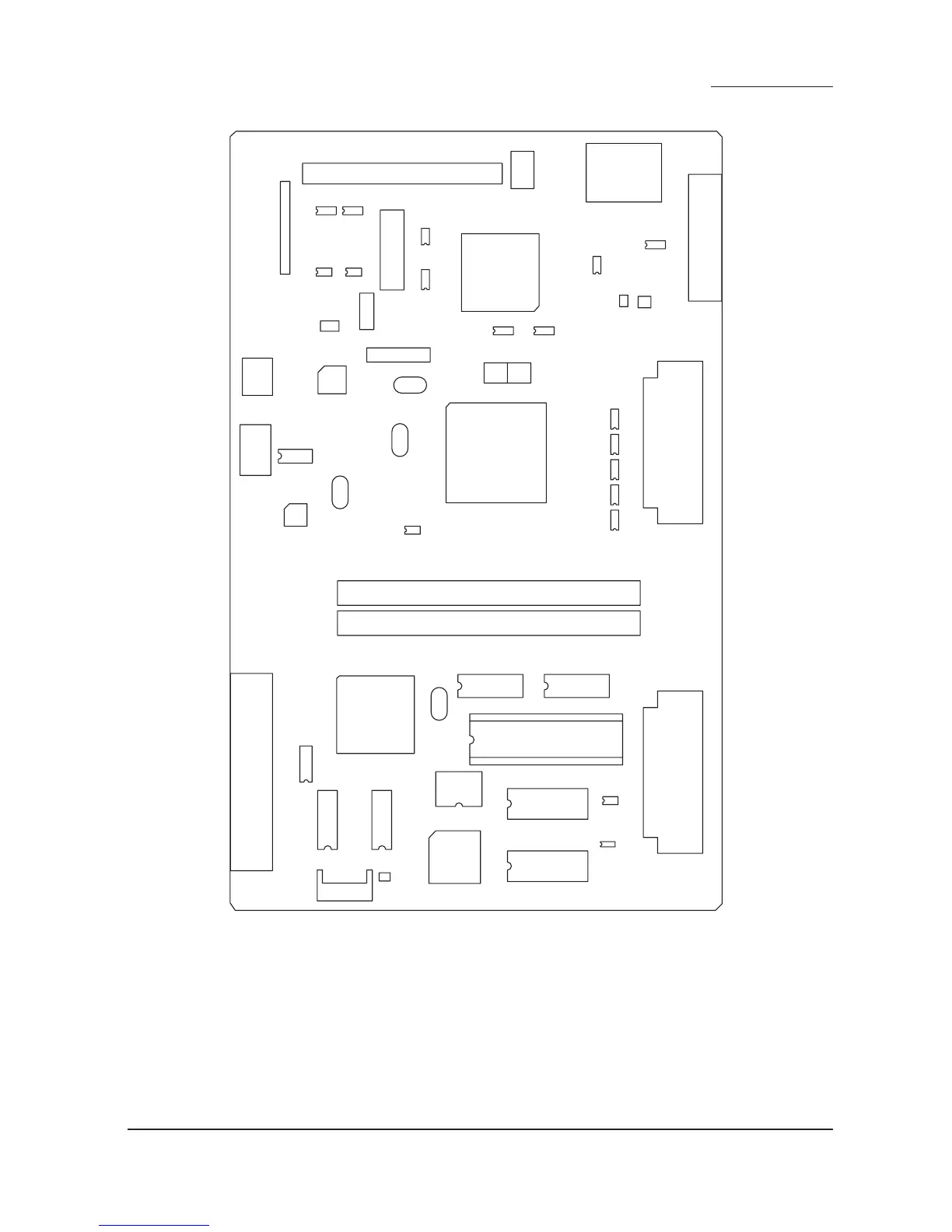

Figure 2-3-6 Main controller PWB block diagram

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
