Kyocera FS-9120DN Service Manual

1-4-32
FS-9120DN/9520DN
1-4-3 Maintenance
(1) Replacing the toner container
Assuming an average toner coverage of 5% and Ecoprint mode turned off, the toner container will need replacing
approximately once every 40,000 pages.*
* For a new printer with a toner kit installed for the first time, the number of copies that can be printed will be
approximately 20,000.
Procedure
1. Open the printer front cover all the way.

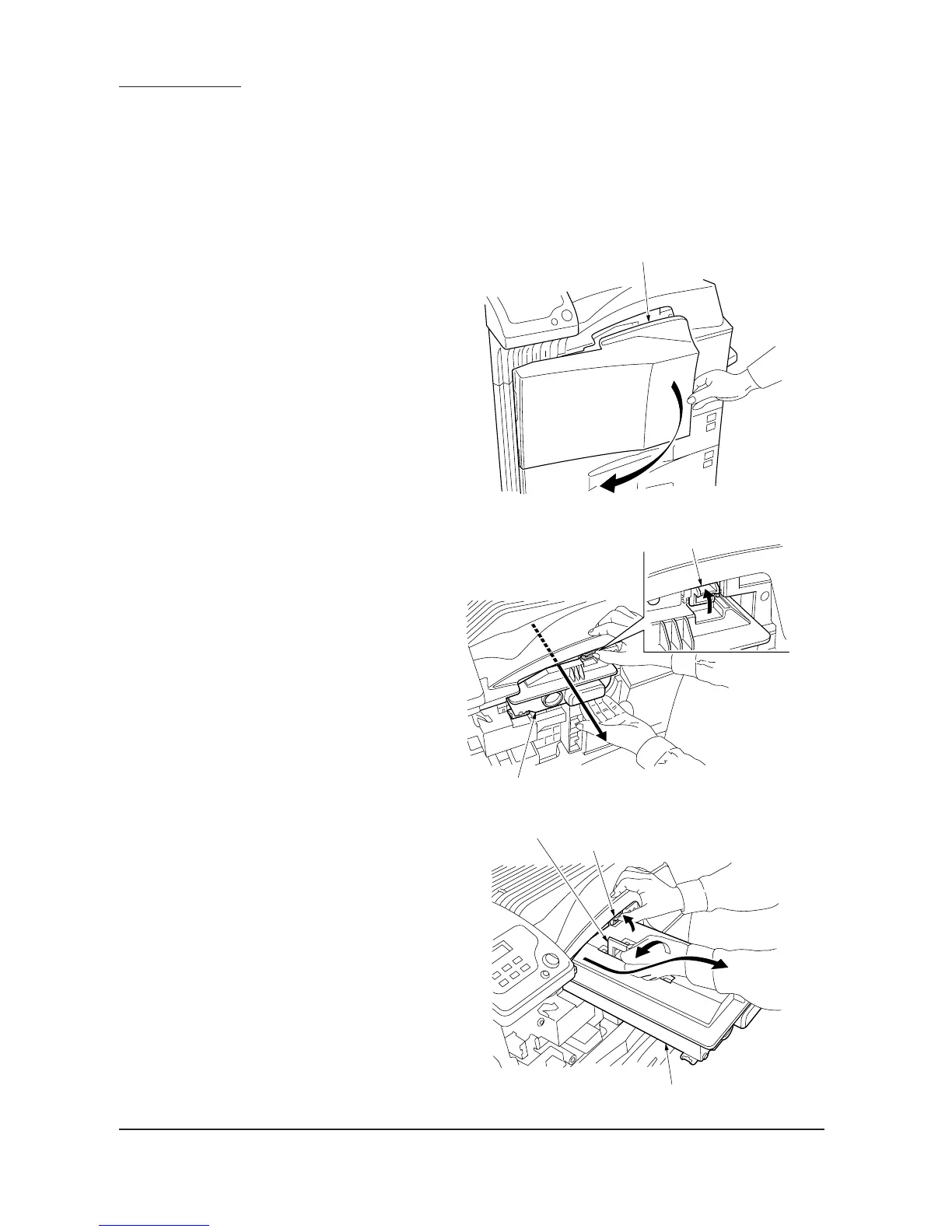

Figure 1-4-2
2. Push the lock lever (blue colored) up and
gently remove the toner container until its
handle appears.
* Do not pull the toner container all the way
as it can fall off and the toner spots the floor.
3. Grasp the handle on the toner container,
push the lock lever up again and gently lift the
toner container.
Front cover
Figure 1-4-3
Figure 1-4-4
Lock lever
Toner container
Toner container
Lock lever
Handle
