2HL/2HM/2HN
1-5-28
(2) Detaching and refitting the main PWB
Procedure
1. Remove the two screws.
2. Remove the main PWB.
3. Check or replace the main PWB and refit all
the removed parts.

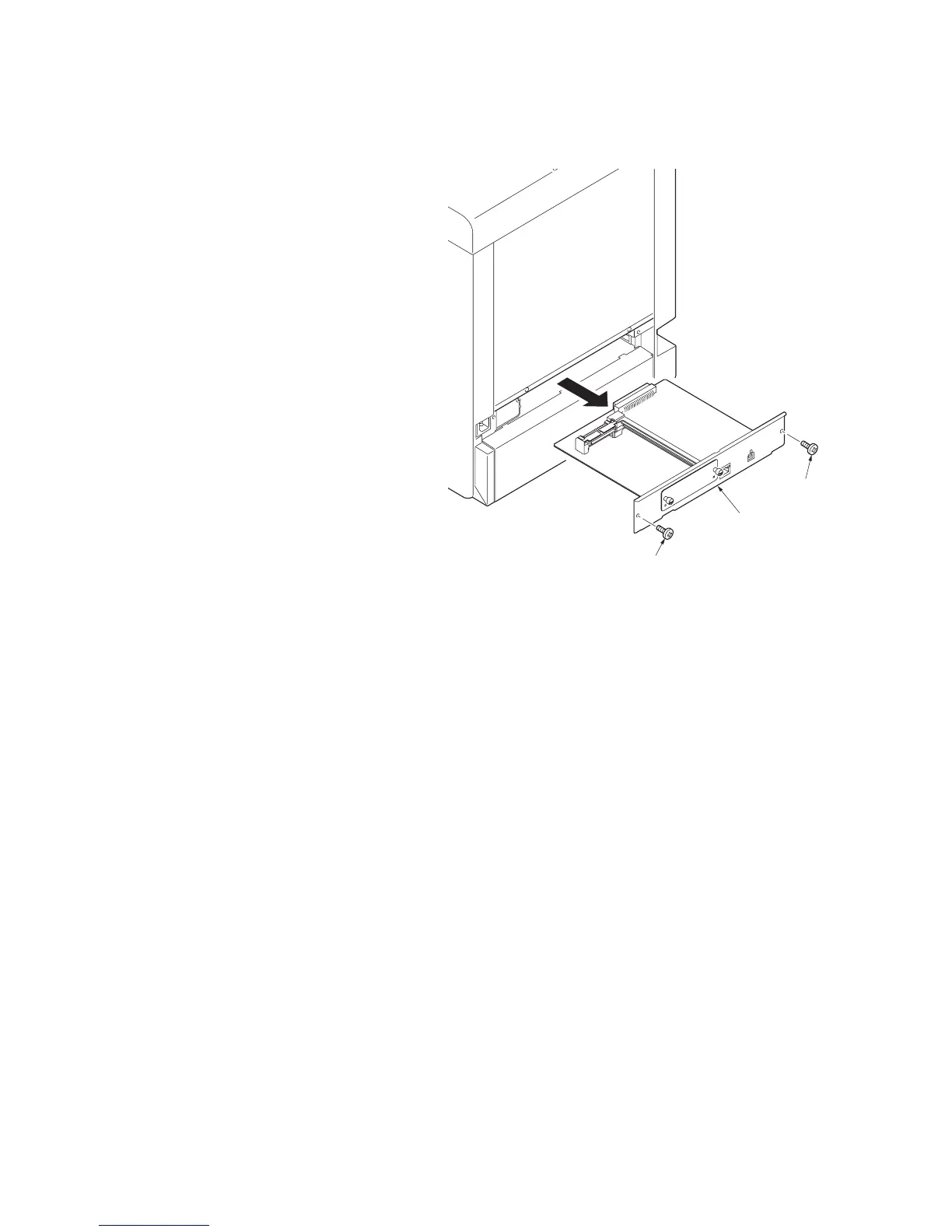

Figure 1-5-36
Main PWB
Screw
Screw
