2HL/2HM/2HN
1-5-29

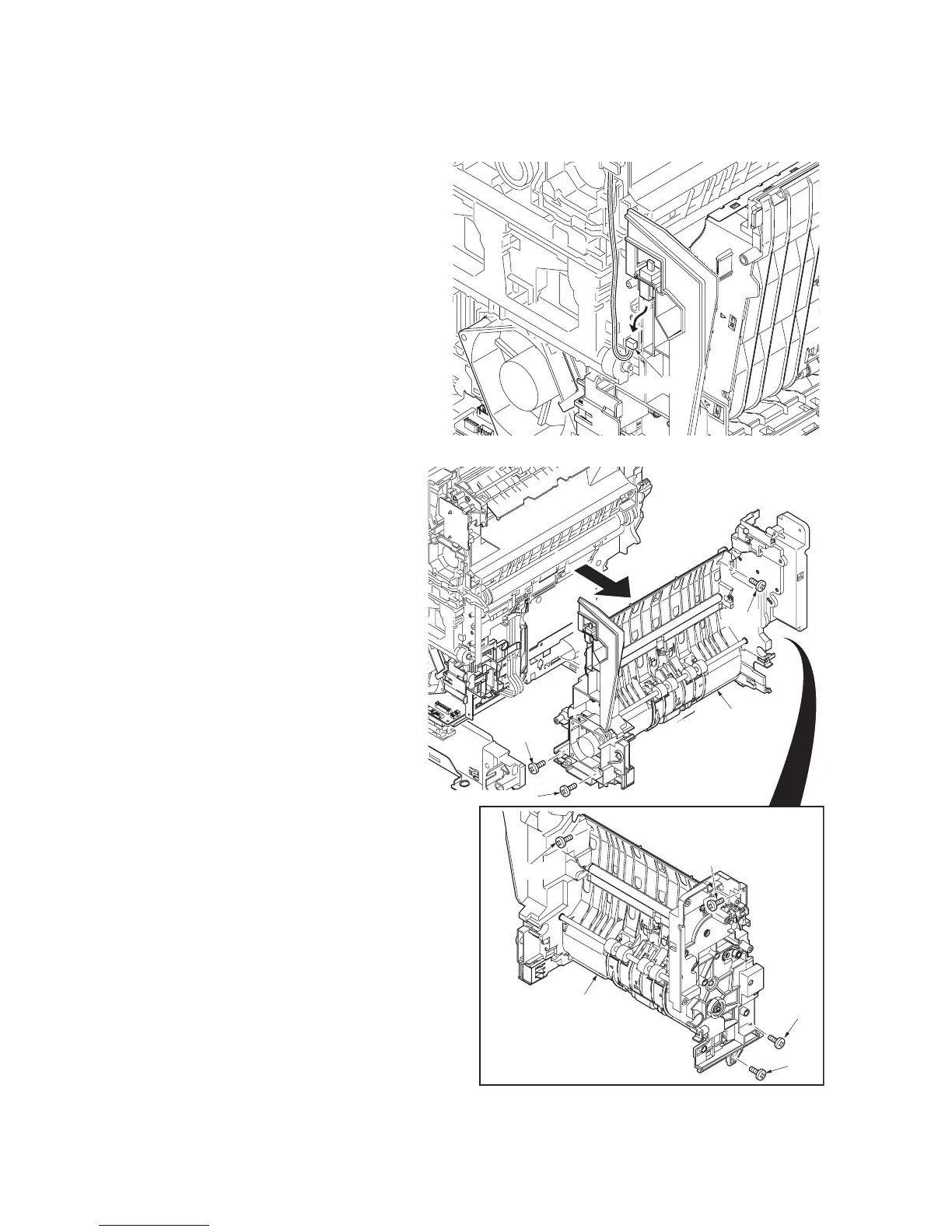

(3) Detaching and refitting the engine PWB
Procedure
1. Remove the duplex unit B (See page 1-5-
20)
2. Remove the connector.
Figure 1-5-37
3. Remove the seven screws and then remove
the feed housing.
Figure 1-5-38
Connector
Feed housing
Feed housing
Screw
Screw
Screw
Screw
Screw
Screw
Screw
