Kyocera FS-C5100DN Service Manual

2HL/2HM/2HN
1-5-32

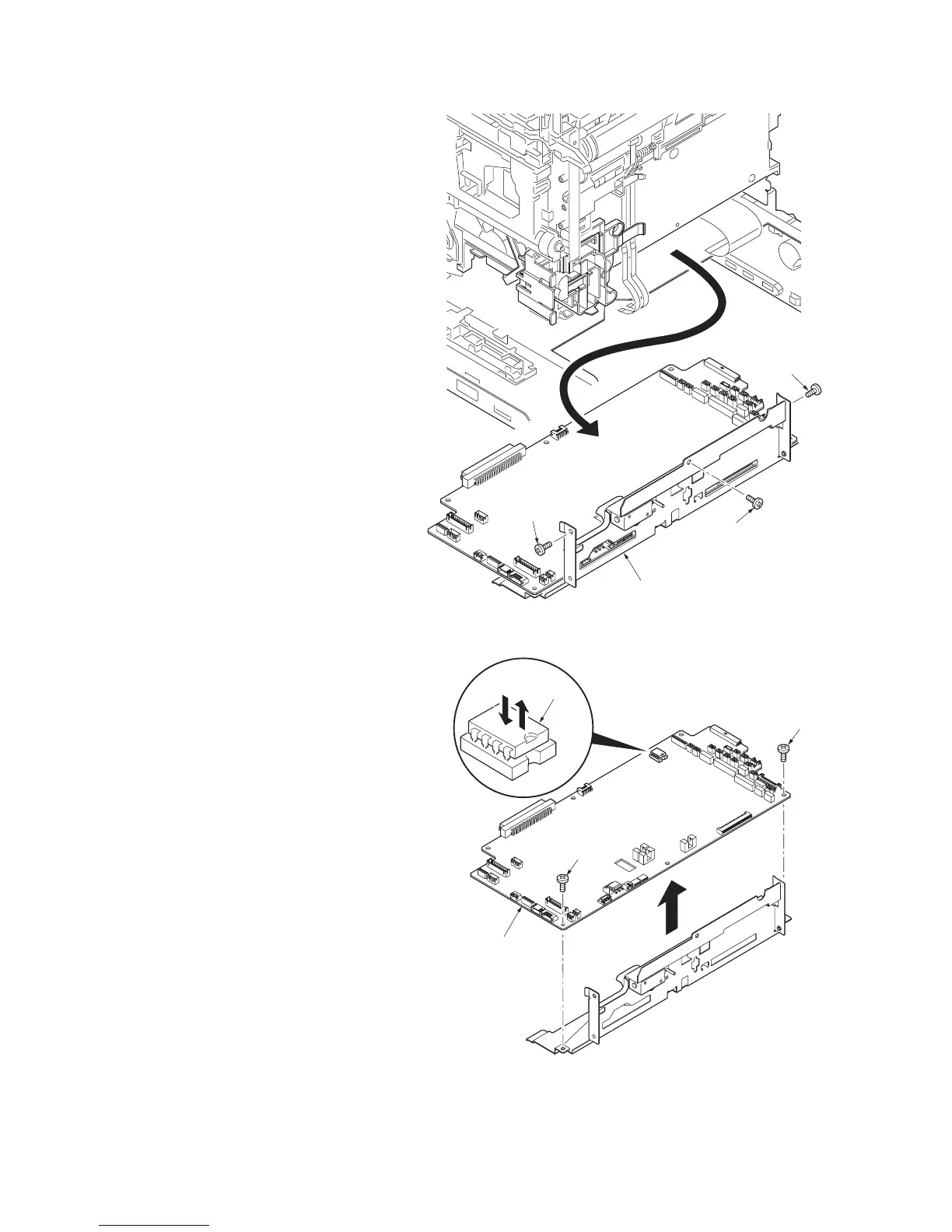

12. Remove the three screws and then remove
the engine PWB assembly.
Figure 1-5-43
13. Remove the two screws and then remove
the engine PWB.
14. Check or replace the engine PWB and refit
all the removed parts.
To replace the engine PWB, remove the
EEPROM (U4) from the old engine PWB
and mount it to the new engine PWB.
Figure 1-5-44
Engine PWB assembly
Screw
Screw
Screw
Screw
Engine PWB
EEPROM
U4
Screw
