Kyocera FS-C5100DN

2HL/2HM/2HN
2-1-1
2-1 Mechanical Construction
2-1-1 Paper feed/conveying section
Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP tray paper
feed unit that feeds paper from the MP tray, and the paper conveying section that conveys the fed paper to the transfer/
separation section.
(1) Cassette paper feed section
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

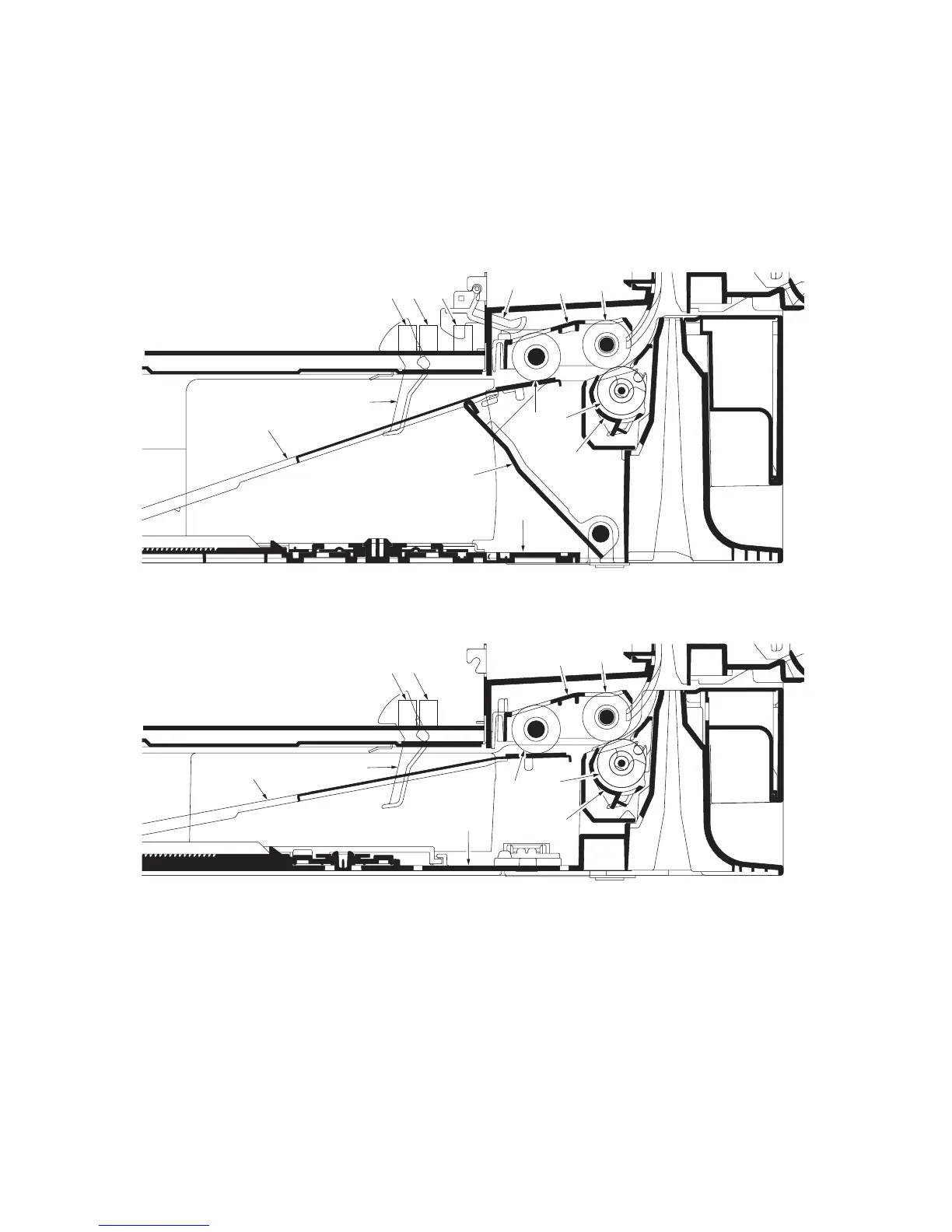

Figure 2-1-1 Cassette paper feed section
1
11
7
6
8
4
5
2
3
13
9 10 12
21/23 ppm (500-sheet) model
26/28 ppm (500-sheet) model
11
7
6
4
5
9 10
21/23 ppm (250-sheet) model
2
3
1
(1) Pickup roller
(2) Paper feed roller
(3) Paper feed holder
(4) Retard roller
(5) Retard holder
(6) Cassette base
(7) Bottom plate
(8) Lift work plate
(9) Paper sensor 1
(10) Paper sensor 2
(11) Actuator (paper sensor 1, 2)
(12) Lift limit sensor
(13) Actuator (lift limit sensor)
