Kyocera FS-C5100DN

2HL/2HM/2HN
2-1-2

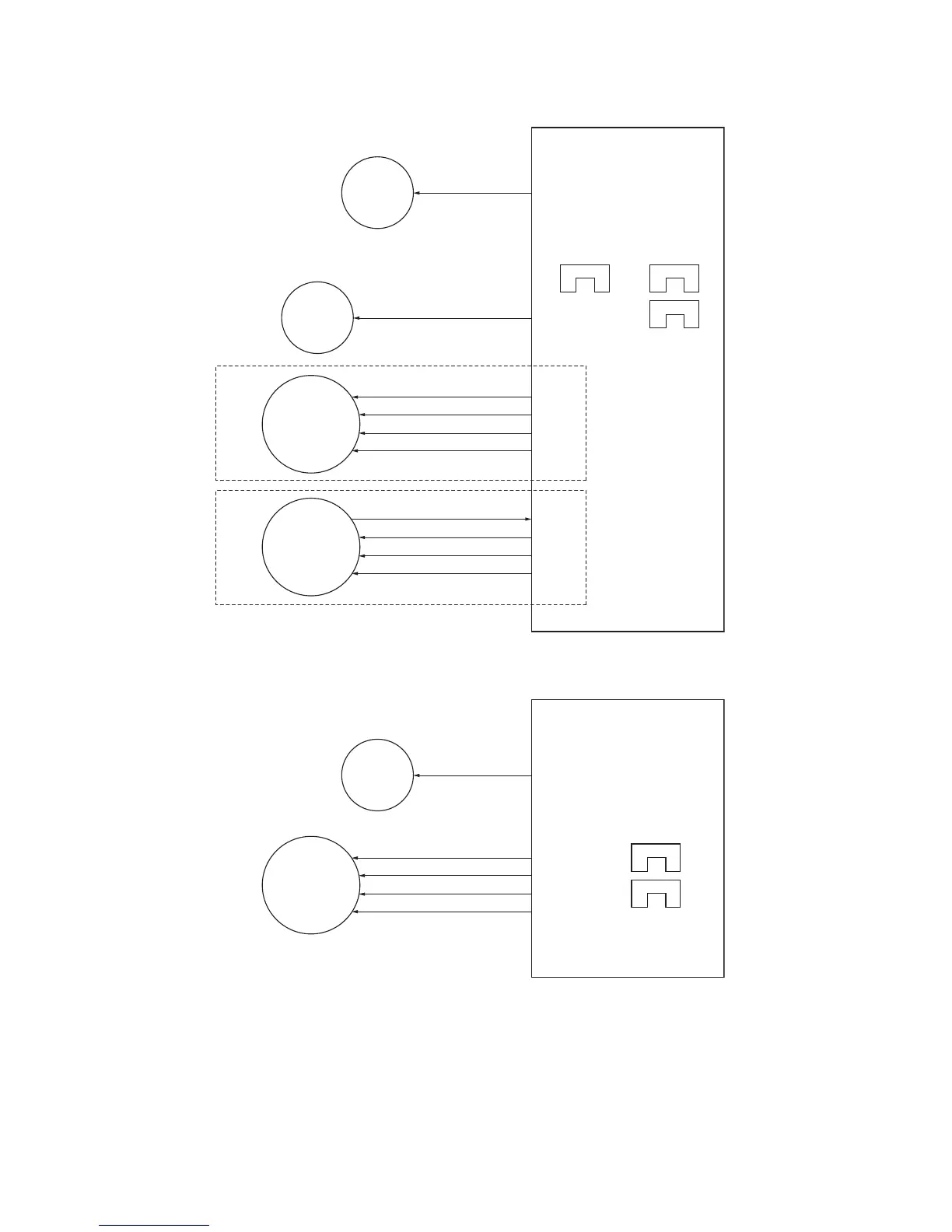

Figure 2-1-2Cassette paper feed section block diagram
FEDCLDRN
21/23 ppm (500-sheet) model
26/28 ppm (500-sheet) model
Paper feed
clutch
Paper feed
clutch
Engine PWB
YC26-12
LMOTDRN
YC28-1
Lift motor
FEMOTRDYN
Paper feed motor
Paper feed motor
Paper feed motor
SPEEDSEL
FECLKCLK
YC3-1
YC3-2
YC3-3
REMOTREN
YC3-4
STFEAN
STFEB
YC4-1
YC4-2
YC4-3
STFEA
STFEBN
YC4-4
Lift limit sensor
Paper sensor 1
Paper sensor 1
Paper sensor 2
Paper sensor 2
FEDCLDRN
Engine PWB
YC26-12
STFEAN
STFEB
YC4-1
YC4-2
YC4-3
STFEA
STFEBN
YC4-4
21/23 ppm (500-sheet) model
26/28 ppm (500-sheet) model
21/23 ppm (250-sheet) model
