Kyocera FS-C5100DN

2HL/2HM/2HN
2-1-4
(3) Paper conveying section
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

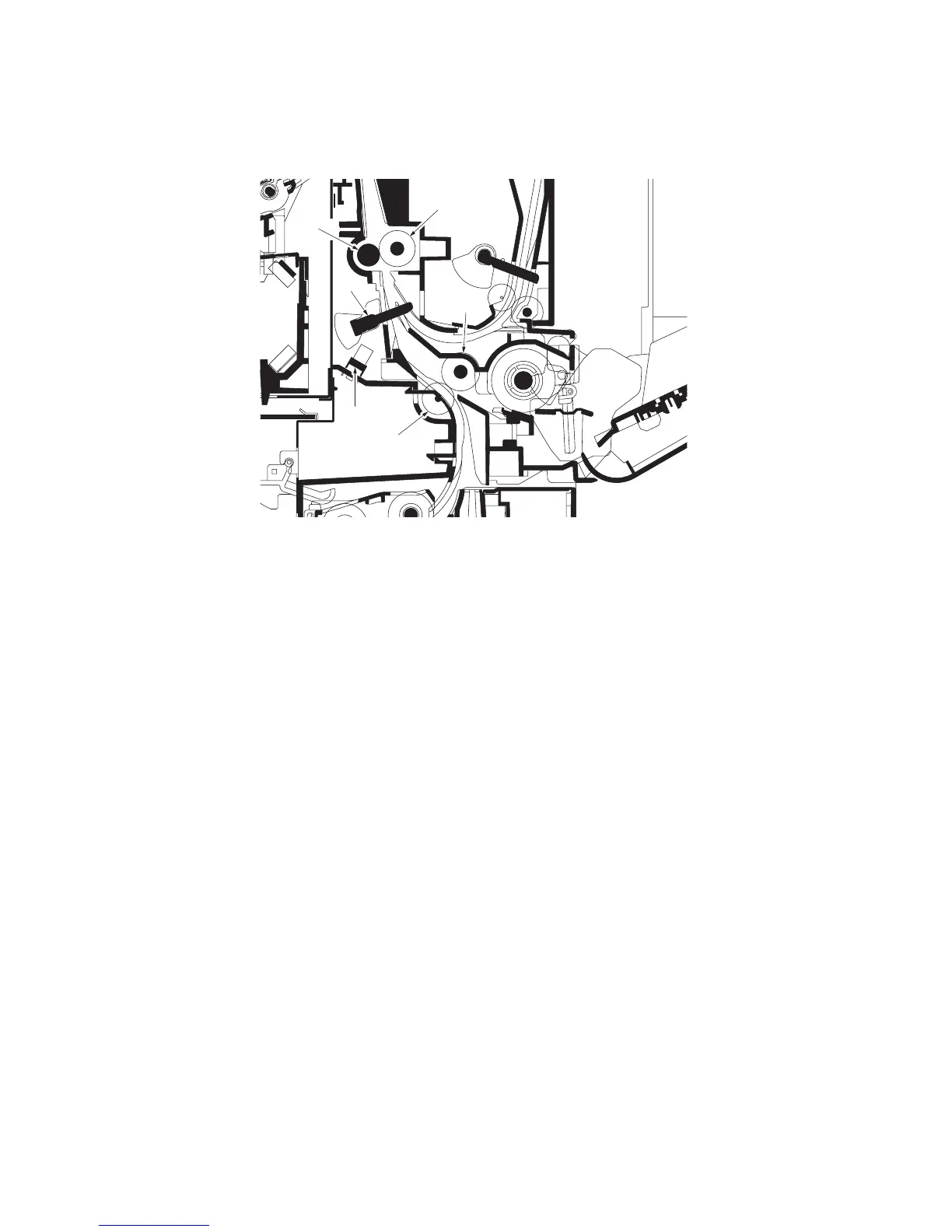

Figure 2-1-5 Paper conveying section
1
3
4
2
5
6
(1) Feed pulley
(2) Middle roller
(3) Registration sensor
(4) Actuator (registration sensor)
(5) Front registration roller
(6) Rear registration roller
