2HL/2HM/2HN
1-5-30
4. Remove the connector A.
5. Remove the developing fan motor 1.
6. Remove the two connectors B.
7. Remove the FFC.

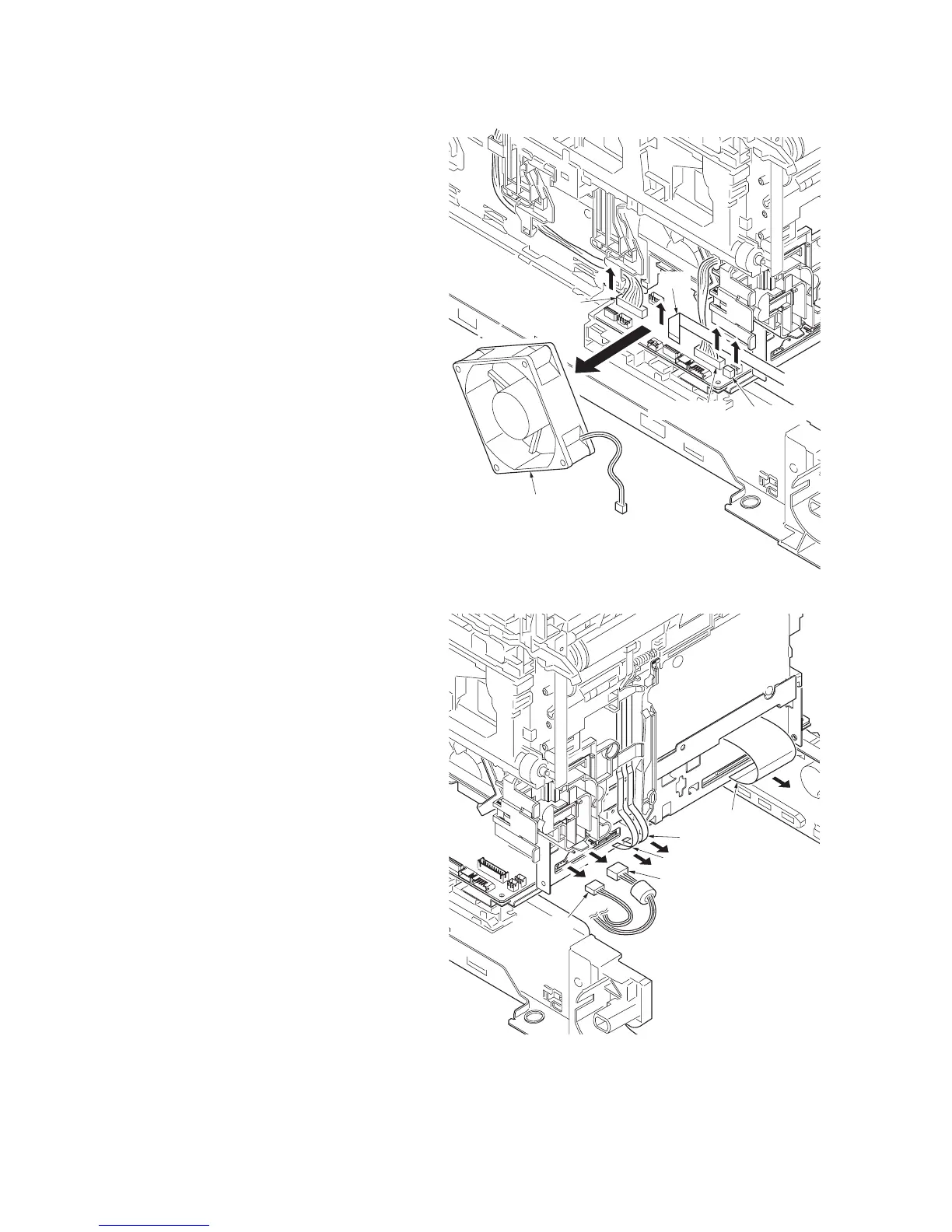

Figure 1-5-39
8. Remove the three FFCs.
9. Remove the two connectors.
Figure 1-5-40
Developing fan motor 1
Connector B
Connector B
Connector A
FFC
FFC
FFC
Connector
FFC
Connector
