Kyocera FS-C5300DN Service Manual

2HL/2HM/2HN
1-5-33

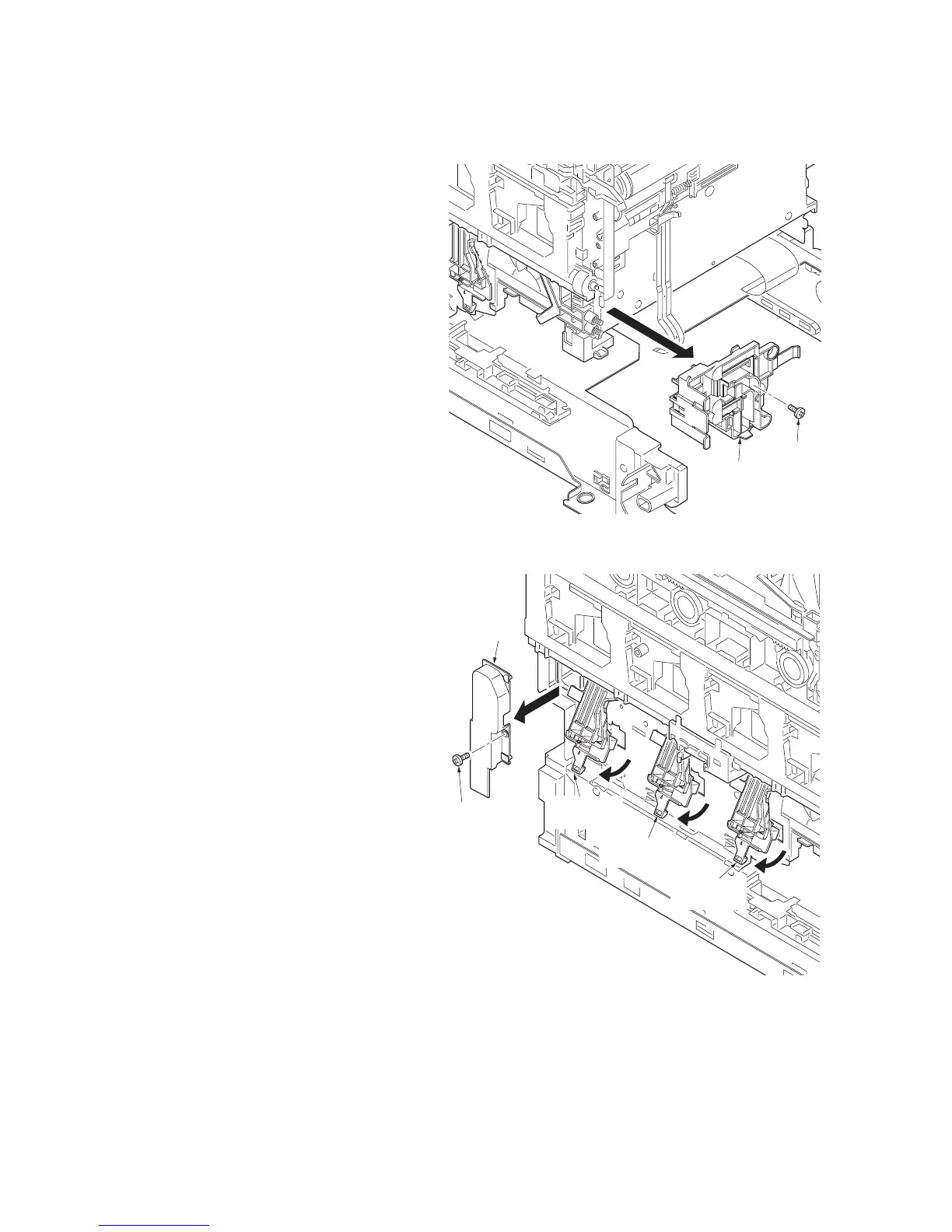

(4) Detaching and refitting the high voltage PWB
Procedure
1. Remove the all drum units (See page 1-5-
14).
2. Remove the all developing units (See page
1-5-13).
3. Remove the engine PWB (See page 1-5-
29).
4. Remove the screw and then remove the HV
terminal assembly K.
Figure 1-5-45
5. Remove the screw and then remove the
inner cover.
6. Remove the three HV bracket C assem-
blies.
Figure 1-5-46
Screw
HV terminal assembly K
Screw
Inner cover
HV bracket
C assembly
HV bracket
C assembly
HV bracket
C assembly
