Troubleshooting > Regular Maintenance

Replacing Staples

A staple cartridge is installed in the optional 1,000-Sheet Finisher.

If a message displays indicating that staples have run out, the staple cartridge holder need to be replenished with staples.

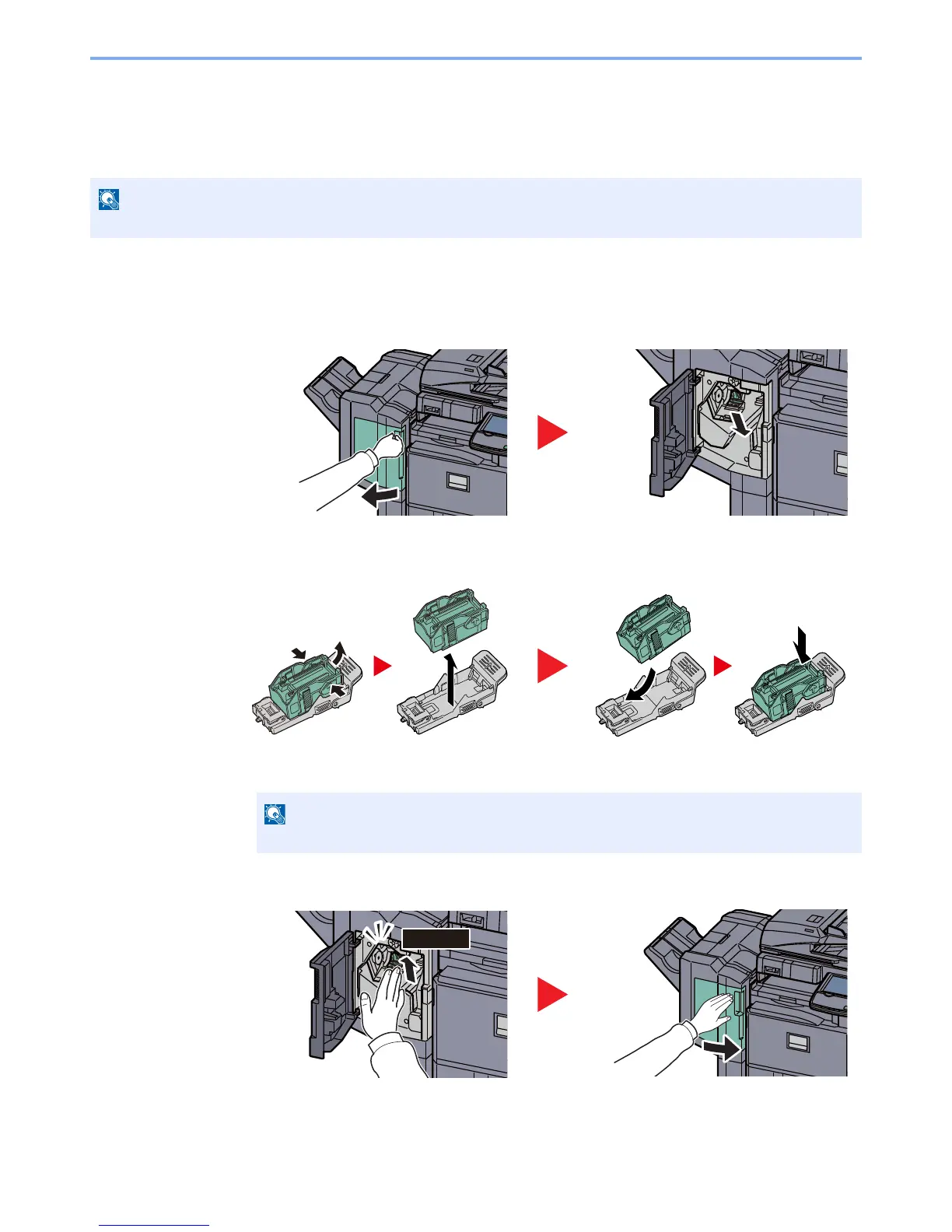

Follow the steps below to refill staples.

NOTE

If the Staple Unit runs out of staples, contact your service representative or the place of purchase.

NOTE

The staple cartridge can only be removed when it contains no more staples.

CLICK!
