10-57

Troubleshooting > Clearing Paper Jams

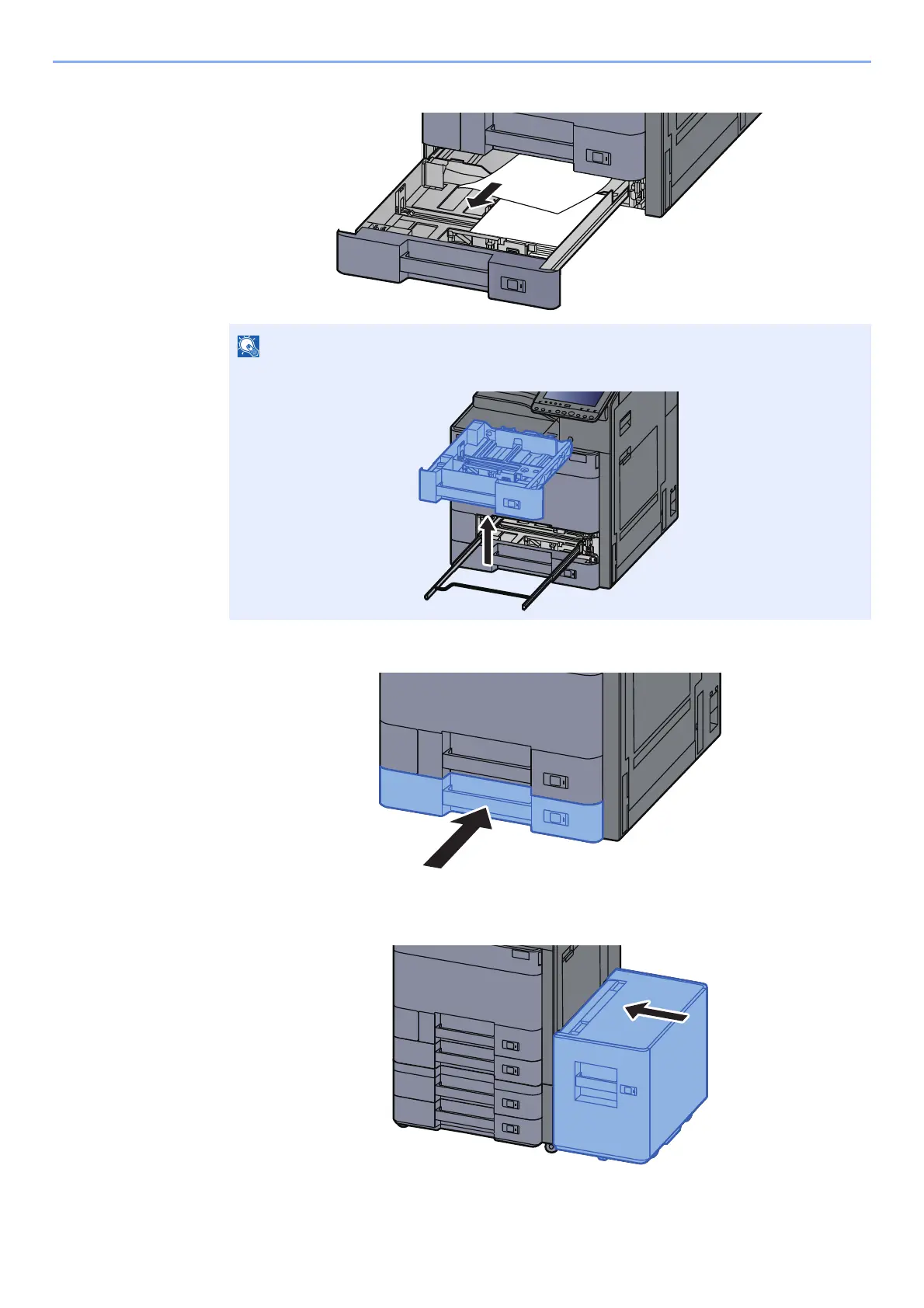

Remove any jammed paper.

Push Cassette 2 back in.

If the optional side feeder is installed, return the side feeder to

the original position.

NOTE

To remove paper which is difficult to get access to, the cassette can be removed.
