Troubleshooting > Clearing a Staple Jam

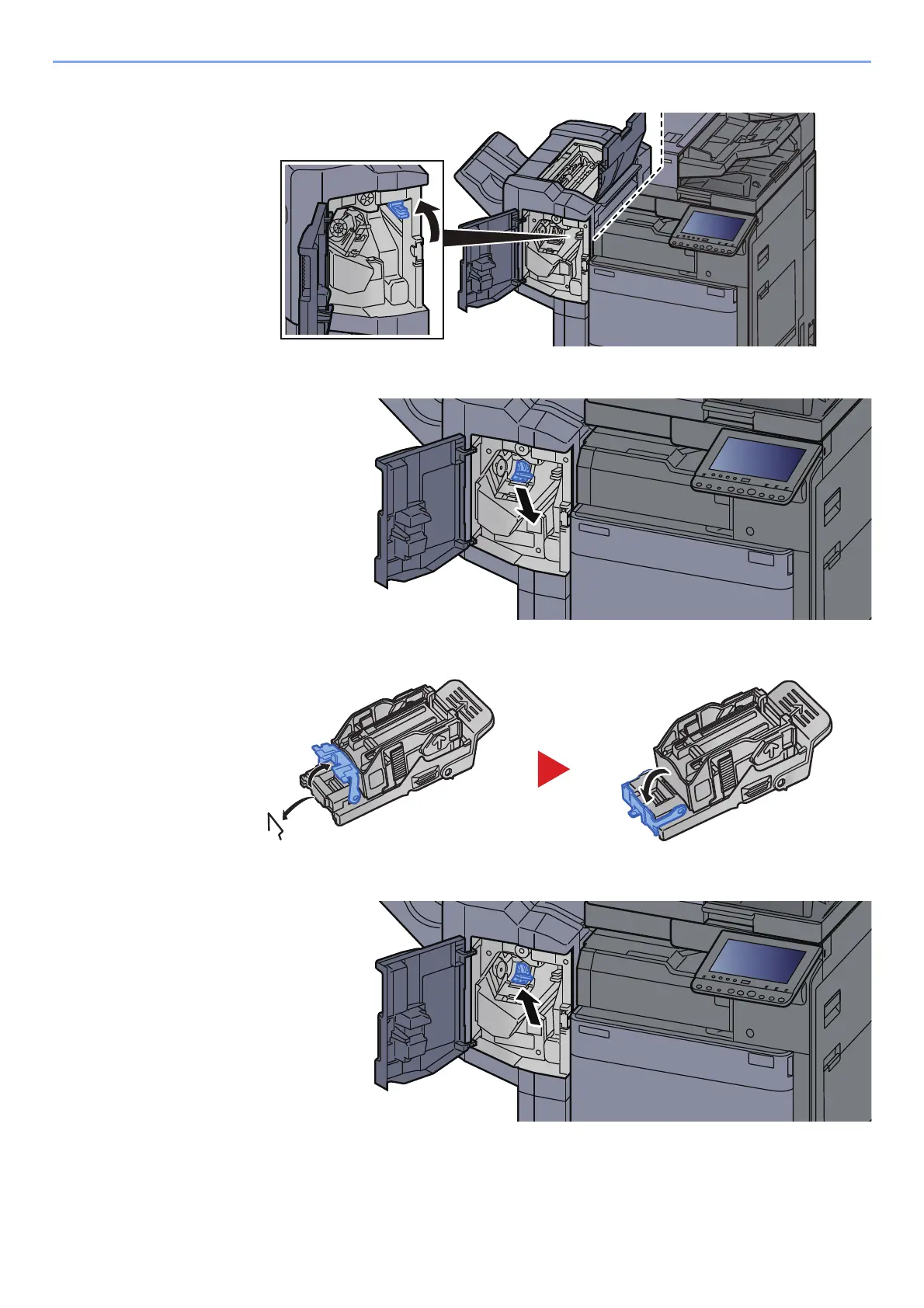

Return the conveyor guide (D1) to the original position.

Remove the Staple Cartridge Holder.

Remove the jammed staple.

Install the Staple Cartridge Holder.
