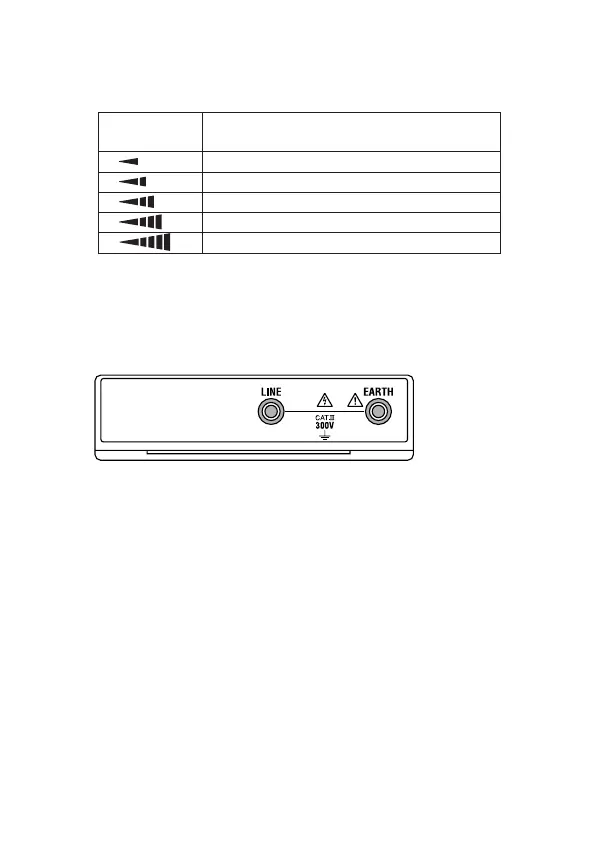

10…OUTPUT VOLTAGE GRAPH (INSULATION RESISTANCE)
FUNCTION SETTING
PER RATED OUTPUT VOLTAGE
1 ~ 24%
25 ~ 49%
50 ~ 74%
75 ~ 99%
100% or over
11… OUTPUT VOLTAGE RANGE
12… MEASUREMENT VALUES
4-3 Connector
― 11 ―
4-2 LCD DISPLAY
1… INSULATION RESISTANCE SCALE
2… BAR GRAPH
3… CONTINUITY SCALE
4… LIVE CIRCUIT WARNING
AC LIVE CIRCUIT DISCHARGE VOLTAGE
WARNING
0〜2V 0〜2V
3〜30V 3〜60V
31〜60V 61〜120V
61〜120V 121〜240V
120V over 240V over
5… TRACK/LOK MODE
6… AUTONULL OPERATION
7… BATTERY VOLTAGE WARNING
8… CONTINUITY/INSULAATION RESISTANCE RANGE SETTING
9… UNIT
― 10 ―
1
812
9
10
11
3
2
4
5
6
7
