31
—
10. BATTERY / FUSE REPLACEMENT
# WARNING
NEVR OPEN THE BATTERY COVER WHILE MAKING MEASUREMENT.
TO AVOID POSSIBLE ELECTRICAL SHOCK, DISCONNECT THE TEST
LEAD AND POWER OFF THE INSTRUMENT BEFORE OPENING THE
BATTERY COVER FOR BATTERY OR FUSE REPLACEMENT.
10.1 Battery replacement
When the display shows the low battery indication " ", disconnect the test
leads from the instrument and power off. Remove the battery cover and the
batteries. Replace with eight (8) new 1.5V R6P or LR6 batteries, taking care to
observe correct polarity. Replace the battery cover.
10.2 Fuse replacement
The Continuity test circuit is protected by a 600V 0.5A HRC ceramic type fuse
situated in the battery compartment, together with a spare. If the instrument fails
to operate in the Continuity test mode, first disconnect the test leads from the
instrument and power off. Next remove the battery cover, take out the fuse and
test its Continuity with another continuity tester. If it has failed, replace it with a
spare, before refitting the battery cover. Do not forget to obtain a new fuse and
place it in the spare position.

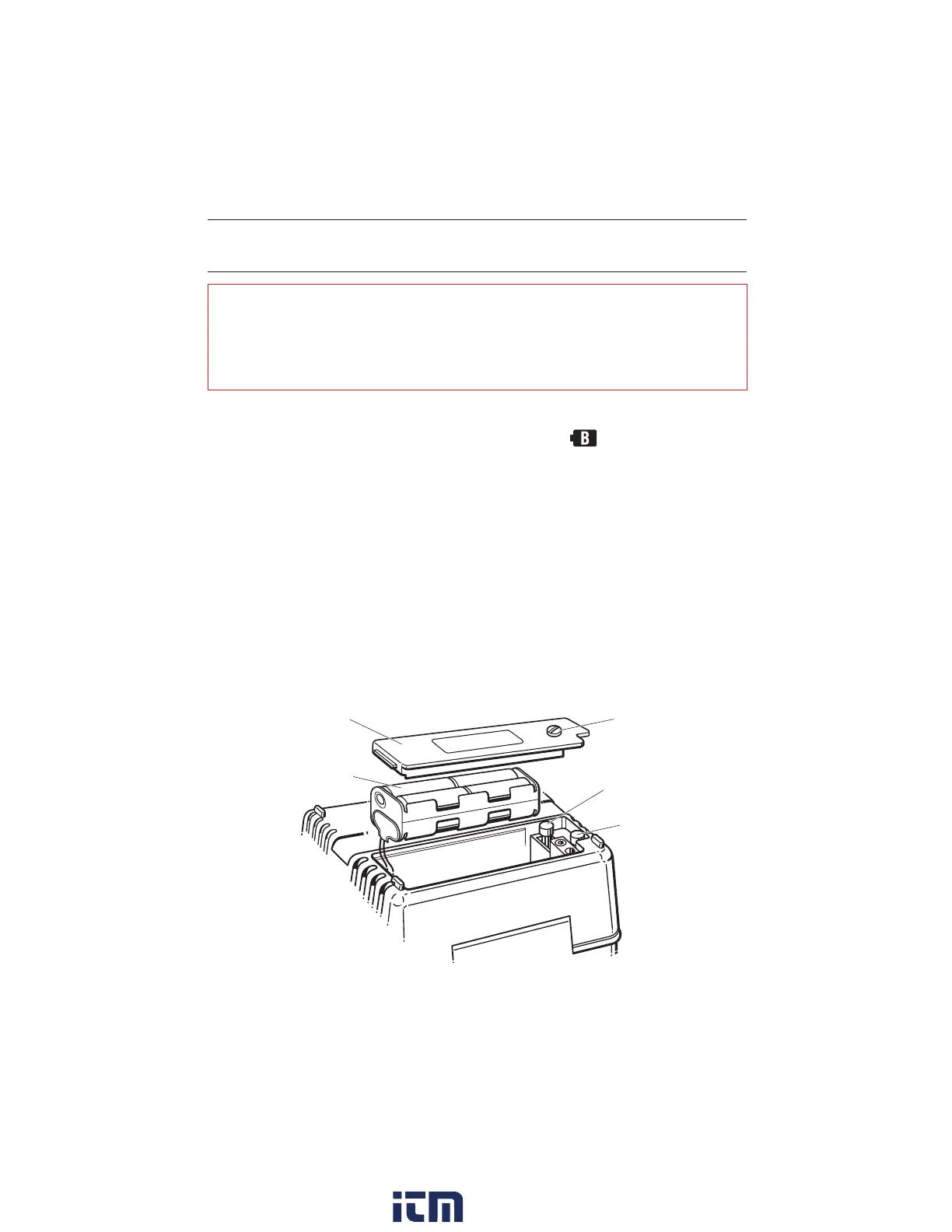

Fig 15
BatteryCover
Batteries
Screw
SpareFuse
Fuse
